SIIG CE-KV0811-S1 Network Switch

SIIG - SIIG 2 Port 4K60Hz HDMI 18Gbps Video Console KVM Switch with USB 2.0, EDID Bypass Features, Supports Display Auto Scan, HDMI 18Gbps Single Monitor, USB 2.0 Hub / 2x USB HID / Audio / Hotkey Switching, 2 Port HDMI KVM Switch, USB-A 5Gbps, Hotkey / Push Button, Ultra HD 4K60Hz HDR10 HDMI (3840x2160 60Hz), HDCP 2.2, EDID / HDCP, USB 2.0 Port, 2 or 7.1ch Audio, OS Independent, HDMI/USB/Audio KVM Cable included, 2 years warranty, TAA Compliant

With this KVM Switchbox, avoid the constant?switching of?cables between sources
Get reliable connectivity between 2 computers and 1 local users
Enjoy watching any class of content on 3840 x 2160 resolution
The Built-in USB port enables easy connection with USB-compatible devices

Need a different version? See all SIIG Parts Products

$249.68

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

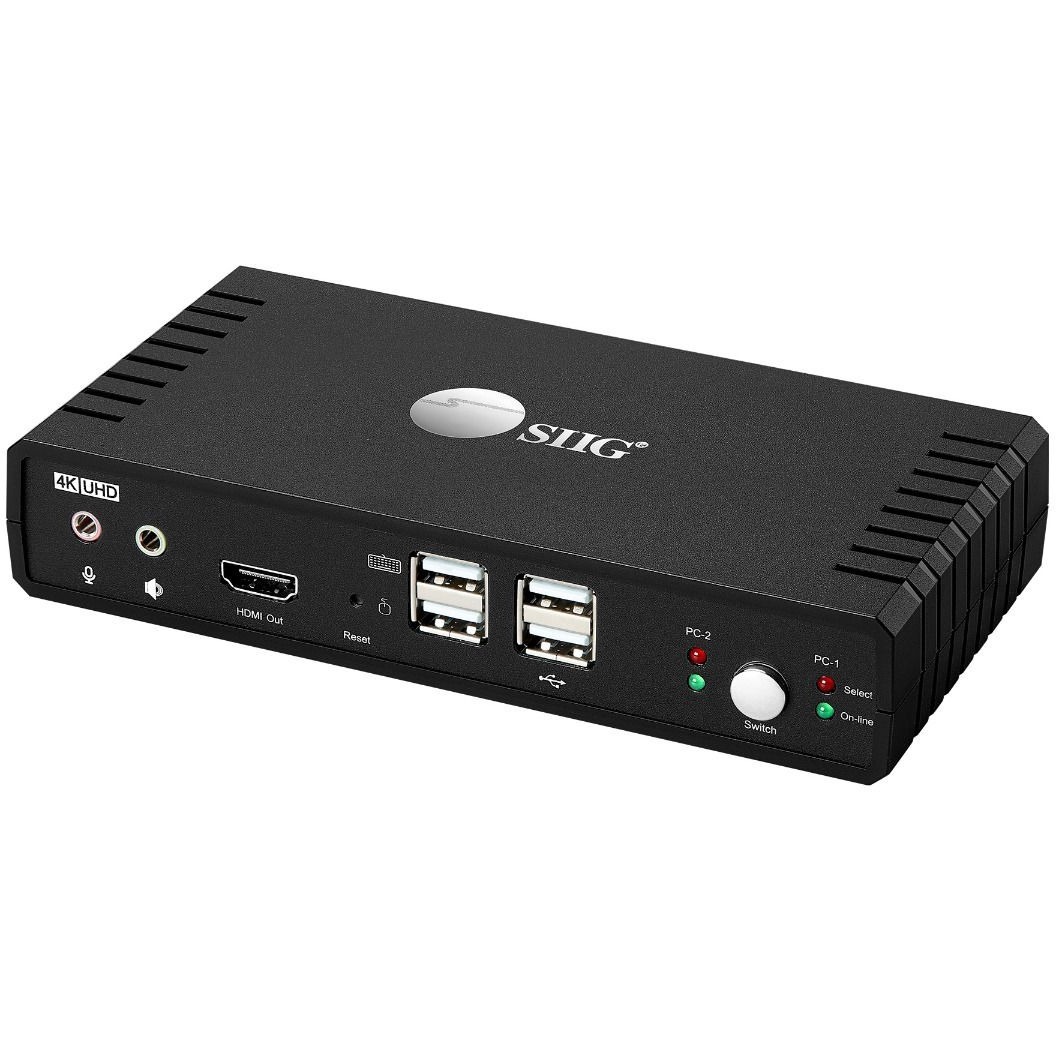

SIIG CE-KV0811-S1 Network Switch Overview

Control two 4K HDMI computers with one keyboard, mouse with microphone input, stereo audio output; 4K@60Hz resolution HDMI 2.0 and HDCP 2.2 compliant

Device Controls - Allows you to control two 4K HDMI computers with one USB keyboard, USB Mouse, and HDMI display, adds USB Hub, microphone, stereo speaker/headphone connections
UHD 4K Resolution - Advanced HDMI KVM switcher on the market to offer true 18Gbps Ultra-HD 4K at 60Hz, it features EDID bypass which ensures visual workspaces and screen resolutions that are easy to connect and configure
Compliance - Compliant with HDMI 2.0 and HDCP 2.2 specification
Easy Device Switching - Convenient front panel select buttons or keyboard hot-key commands
USB 2.0 Hub - Includes 2-port USB 2.0 HID Hub for Keyboard and Mouse connection, plus another 2 USB 2.0 ports for connecting USB flash drives or any USB devices to the KVM Switch allowing the connected computers to access them
Multimedia Connections - Includes 3.5mm audio jack for microphone and stereo audio connections
Display Auto Scan - Supports screen auto scan between the devices
LED Indicators - Displays KVM connection and status
Easy Installation - Plug-n-play, no driver installation needed

Detailed Specs

Technical Information

Number of Computers Supported:

Number of Local Users Supported:

Video

Maximum Video Resolution:

3840 x 2160

Interfaces/Ports

USB:

Yes

HDMI:

Yes

Number of USB Ports:

Number of HDMI Ports:

Power Description

Input Voltage:

120 V AC
230 V AC

Input Voltage Range:

100V to 240V

Frequency:

50 Hz
60 Hz

Physical Characteristics

Height:

1.3"

Width:

3.3"

Depth:

6.6"

Weight (Approximate):

7.36 oz

Miscellaneous

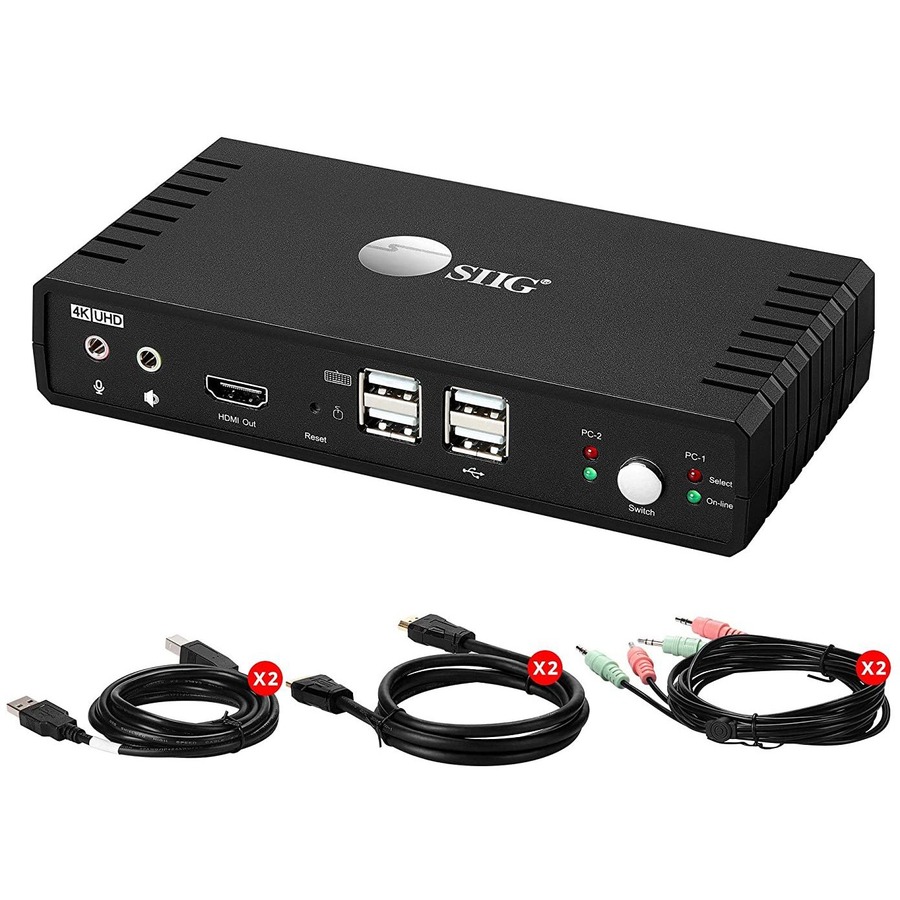

Package Contents:

2-Port HDMI 2.0 Video Console KVM Switch with USB 2.0
Power Adapter 5V/2A
2 x HDMI Cable
2 x USB 2.0 Cable
2 x Audio and Microphone Cable
User Manual

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0662774044507

UPC: 662774044507

EAN: 0662774044507

UNSPSC: 43211601
