Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
200 ft
SIIG A/V Extenders Products Model Overview
Various audio/video extenders from SIIG.

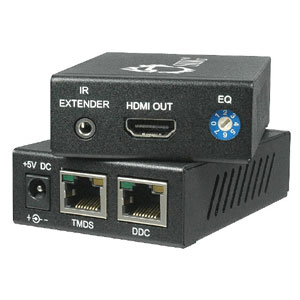

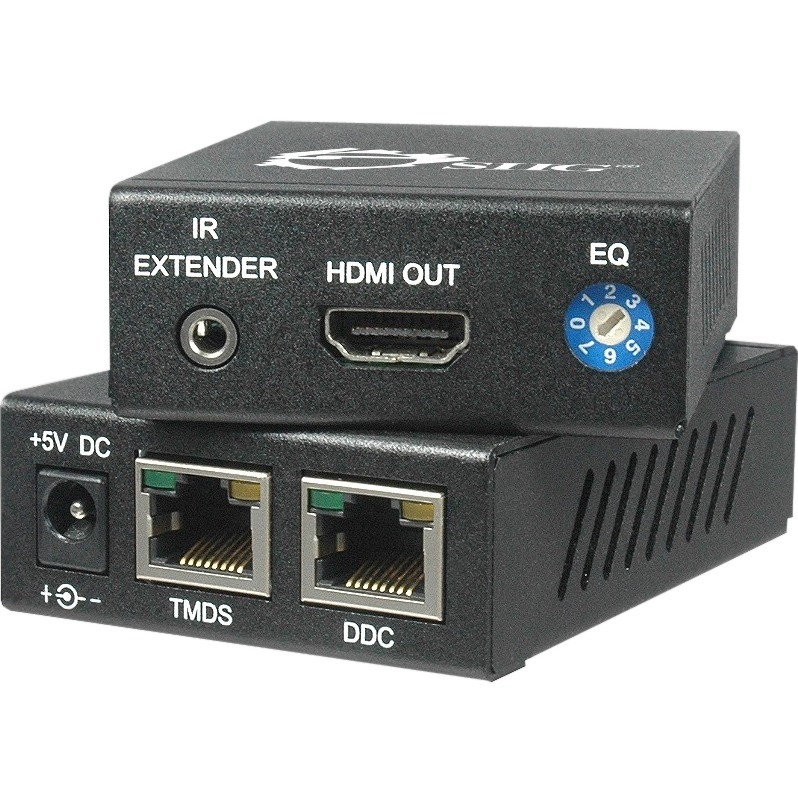

SIIG CE-HM0052-S1 Products Overview
SIIG's HDMI Extender over 2 CAT5e with IR is designed to boost your audio/video transmission from an HDMI source such as DVD player, Blu-ray Disc player, game console, PC, and more to an HDMI display device including HDMI/DVI TV or LCD monitor at greater distance over two cost-effective CAT5e/6 cables. It supports transmission distances of up to 60m/200ft @720p/1080i or 40m/130ft @1080p HDTV formats. The HDMI Extender over 2 CAT5e with IR features embedded IR control path, 8-level equalization knob to minimize cable skew, and an independent DDC channel to instantly control source devices from the remote side. Take advantage of this cost-effective HDMI Extender digital signage device from SIIG's where crystal clear, High-Definition digital signals can be efficiently and reliably extended at minimal cost.
Technical Information
Video
Graphics Modes:
Full HD
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
4
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Color:
Black
Transmitter Height:
2.36"
Transmitter Width:
3.35"
Transmitter Depth:
1"
Transmitter Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
- HDMI over Cat5e Video Extender
- HDMI over Cat5e Video Console
- 1 x Power Adapter (5V, 4A)
- IR Transmitter Extension Cable (90cm/3ft)
- IR Receiver Extension Cable (90cm/3ft)
- Quick Installation Guide
- Screw kit
Additional Information:
- Extends video/audio transmission from an HDMI source to an HDMI display over two economical CAT5e/6 cables
- Controls source devices from the remote side instantly
- Embedded IR control path
- Minimize cable skew with the adjustable 8-level equalization knob
- IR Electro-optical characteristics:
- Ta = 25° C Center
- frequency: 38Mhz
- Power supply:
- Output: 5V DC, 2A
- Input: 100-240 VAC, 50/60Hz, 0.3A
- Power consumption: 10 Watts (max
Certifications & Standards:
FCC
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774006130, 7426900537560
UPC:
662774006130
EAN:
0662774006130, 7426900537560
UNSPSC:
45111815
