Features
Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations
Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional Encoder (TX)unit (CE-H27F11-S1), Decoder (RX)unit (part#- CE-H27G11-S1), and Kit (part#- CE-H28A11-S1) are sold separately
PoE Technology
Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required
Long Distance
This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch
4K UHD Resolution
Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only
IR Extension/RS-232 Control
Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices
High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound
Extract Audio
Audio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
Multiple Connectivity Ports

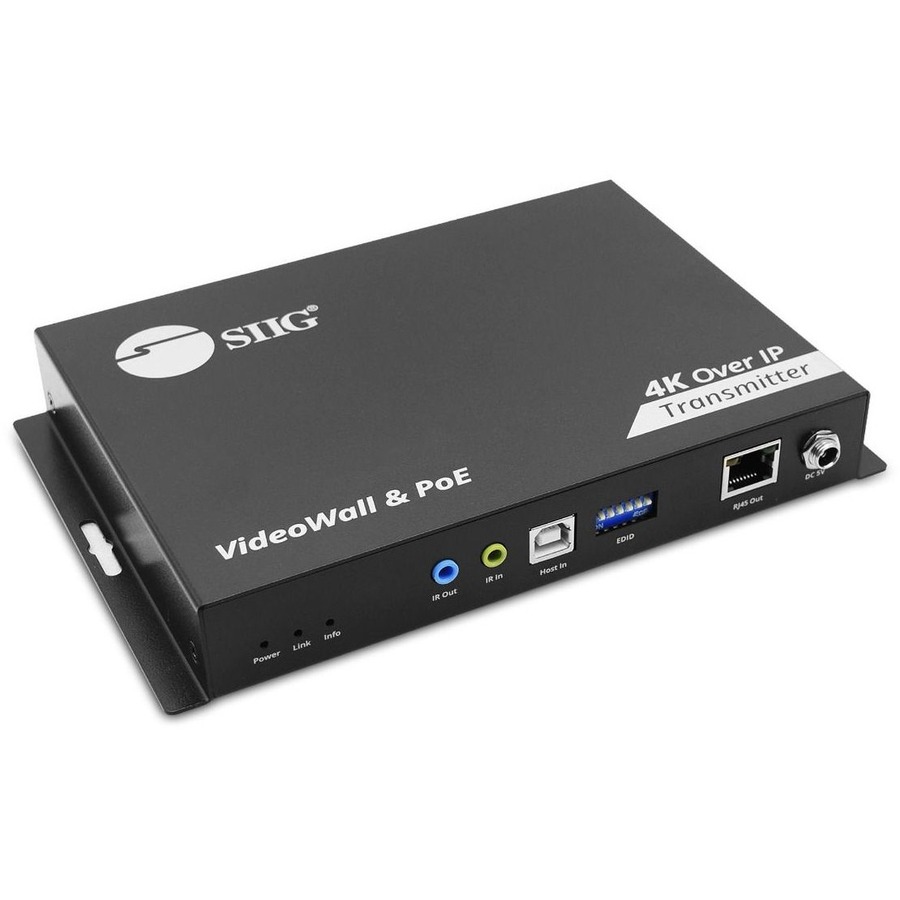

Comes with one HDMI video input port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, one Gigabit Ethernet network port, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm microphone jack, one 3.5mm audio jack, one S/PDIF output port, one DIP switch for video channel selection, one RS-232 port for control, one DC power jack (5V/2A)
