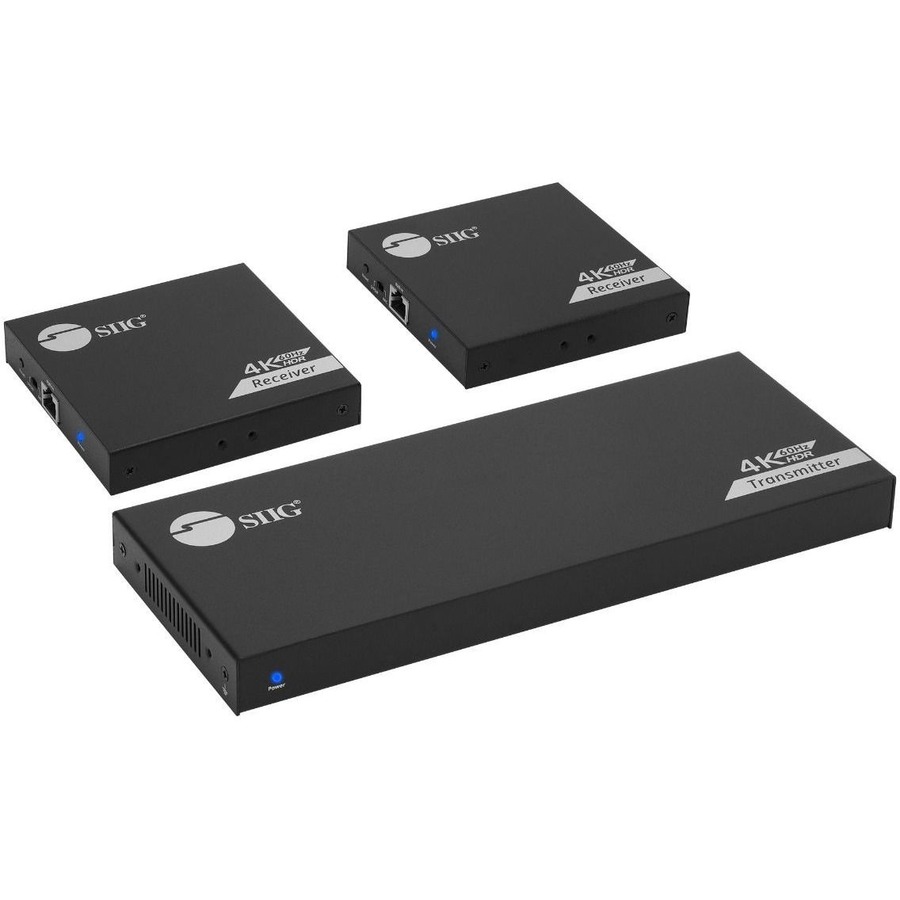

SIIG CE-H27911-S1 Network Switch

SIIG - SIIG 1x2 HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232, HDMI 1 in 1 out & 2 Ext, 1x2 HDMI 4K60Hz Splitter, 2 port HDMI Splitter, HDMI over Cat6/7 Extender, HDR, HDCP 2.2, 7.1ch audio- HDMI Loopout, up to 230ft/70m, Bi-directional IR Extension, S/PDIF audio extraction or ARC audio, DIP Switch, RE-232 Control, EDID Management, Wall mountable, Power adapter / IR cable included, ESD protection, Metal housing, 2 years warranty
  • 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 2 displays
  • Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
  • HDMI Loopout + Extend 2 Displays - Supports one HDMI loop-out for additional local display connections and extender 2 receivers for HDTV or Projector via Cat6/7 cable
  • EDID Management - Support EDID management capability to controls the resolution output to the display(s)
  • Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
  • IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
  • ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
  • RS-232 Control - Support RS-232 command control in the Transmitter
  • Protection - Lightning Protection, Surge Protection, ESD Protection
  • High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Read More

Need a different version? See all SIIG Parts Products

$516.02
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG CE-H27911-S1 Network Switch
SIIG CE-H27911-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H27911-S1 Network Switch Overview

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, two HDMI video output ports, four RJ45 network ports, three 3.5mm IR emitter ports, three 3.5mm IR receiver ports, two S/PDIF ports, one RS-232 terminal block, one DIP switch, three reset buttons, two audio slide switches, one DC power jack (12V/2A) for TX, two DC power jacks (5V/2A) for RXs

Applications

  • Meeting room
  • Lecture hall
  • Educational facilities
  • Multimedia education
  • Home theater
  • Restaurant
  • Shopping center
  • Library
  • Show room
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
2
Maximum Operating Distance:
229.66 ft
Video
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
4
Number of HDMI Inputs:
1
Number of HDMI Outputs:
3
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 7
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Product Color:
Black
Transmitter Height:
0.91"
Transmitter Width:
10.43"
Transmitter Depth:
4.09"
Receiver Height:
0.79"
Receiver Width:
4.15"
Receiver Depth:
4.04"
Transmitter Weight (Approximate):
1.43 lb
Receiver Weight (Approximate):
8.64 oz
Miscellaneous
Package Contents:
  • 1 x Transmitter
  • 2 x Receiver
  • 3 x Power Adapter
  • 1 x IR Blaster extension cable
  • 2 x IR Receiver extension cable
  • Terminal block
  • Mounting kit
  • User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774045269
UPC: 662774045269
EAN: 0662774045269
UNSPSC: 45111815
