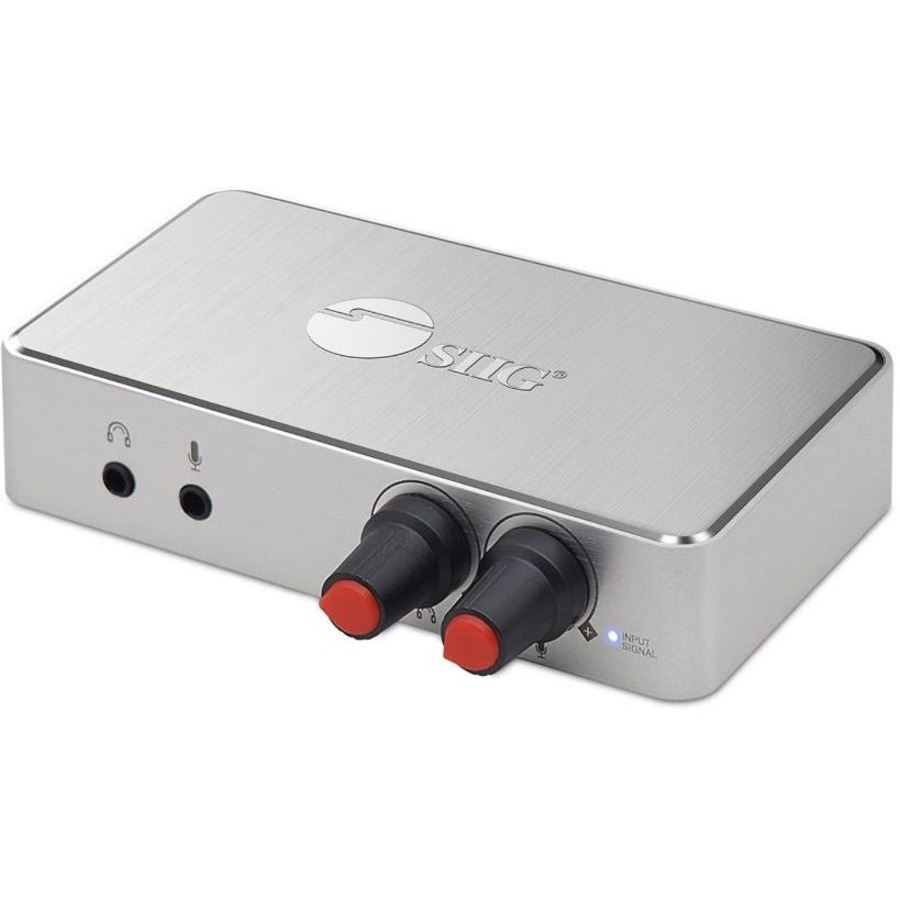

SIIG CE-H27311-S1 Network Switch

SIIG - SIIG 4K HDMI Video Capture Box with Volume Control & Loopout, Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant

Professional like HDMI capture device with audio embedding through USB 3.1 connection from your PC system, Utilizes USB 3.1 interface for high-speed transmission
Allows capture and record in 4Kx2K@30Hz while viewing at 4K@60Hz simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time.
Support video capture and record resolution up to 4Kx2K@30Hz, Supports HDR10 to SDR conversion
Supports HDMI input & loopout up to 4Kx2K@60Hz, Supports playing 4K HDR on HDMI out while streaming perfect 4K2K@30 with SDR colors for gameplay capture.
Volume control knob to adjust the MIC/Headphone volume
Automatically detects video formats to ensure plug-and-play operation
Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
Great for online meetings, training, gameing and live broadcast
Compatible with Windows, Mac and Linux OS. Works with most 3rd party software such as OBS Studio, AMCap and VLC

Need a different version? See all SIIG Parts Products

$185.32

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

SIIG CE-H27311-S1 Network Switch Overview

Overview

Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant

Features

Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob

4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture

HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR

USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer

Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor

Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob

Detailed Specs

Technical Information

Functions:

Video Capturing
Video Streaming
Video Recording

Maximum Resolution:

3840 x 2160

Screen Mode Supported:

Platform Supported:

Interfaces/Ports

USB:

Yes

HDMI:

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Software

Operating System Supported:

Windows 11
macOS 10.15
Linux
Windows 8
Windows 10
Windows 7
Mac OS X 11.0 Big Sur
Mac OS X 11.1 Big Sur

Physical Characteristics

Height:

0.9"

Width:

2.5"

Length:

4.6"

Weight (Approximate):

0.44 lb

Miscellaneous

Package Contents:

4K HDMI Video Capture Box with Volume Control & Loopout
1 x USB 3.2 Gen 1 Type-C to Type-A Cable, 0.98ft (30cm)
1 x User Reference Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0662774045009

UPC: 662774045009

EAN: 0662774045009

UNSPSC: 43201531
