SIIG CE-H26M11-S1 Network Switch

SIIG - SIIG ipcolor 4K HDMI Extender Daisy Chain Transmission Kit, 230ft, Zero Latency, HDMI 4K60Hz video extender over Cat6/7 Extender up to 230ft/70m, HDR, EDID passthrough, HDMI Loopout, S/PDIF audio extraction or ARC audio, Bi-directional IR extension, ESD protection, Auto downscaling, Cascade up to 10 receivers to setup at a low cost, Perfect for Digital signage/Restaurant/Security room/Exhibition, Additional receiver for part# CE-H26N11-S1, Metal housing, 2 years warranty

Need a different version? See all SIIG Parts Products

$152.32

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

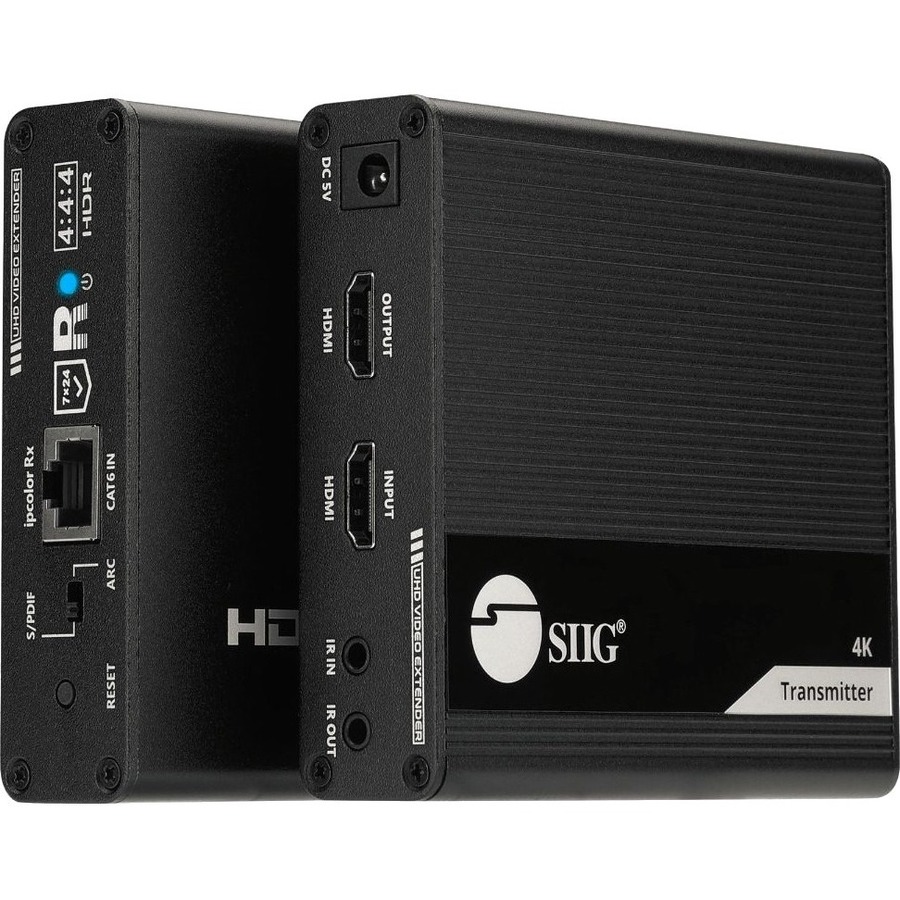

SIIG CE-H26M11-S1 Network Switch Overview

Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, local HDMI out, and ARC using industry leading ipcolor video transmission technology; supports daisy chaining of additional Transceivers, part# CE-H26N11-S1, sold separately, for additional extension and displays

Features

4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable
Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency
Multiple Transceiver Extension - Supports daisy chain up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver
Note: Additional Transceivers, sold separately
Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal
ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink
IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included
Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)
Protection - Lightning Protection, Surge Protection, ESD Protection
High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
Easy Installation - Plug and play installation, no driver installation required
