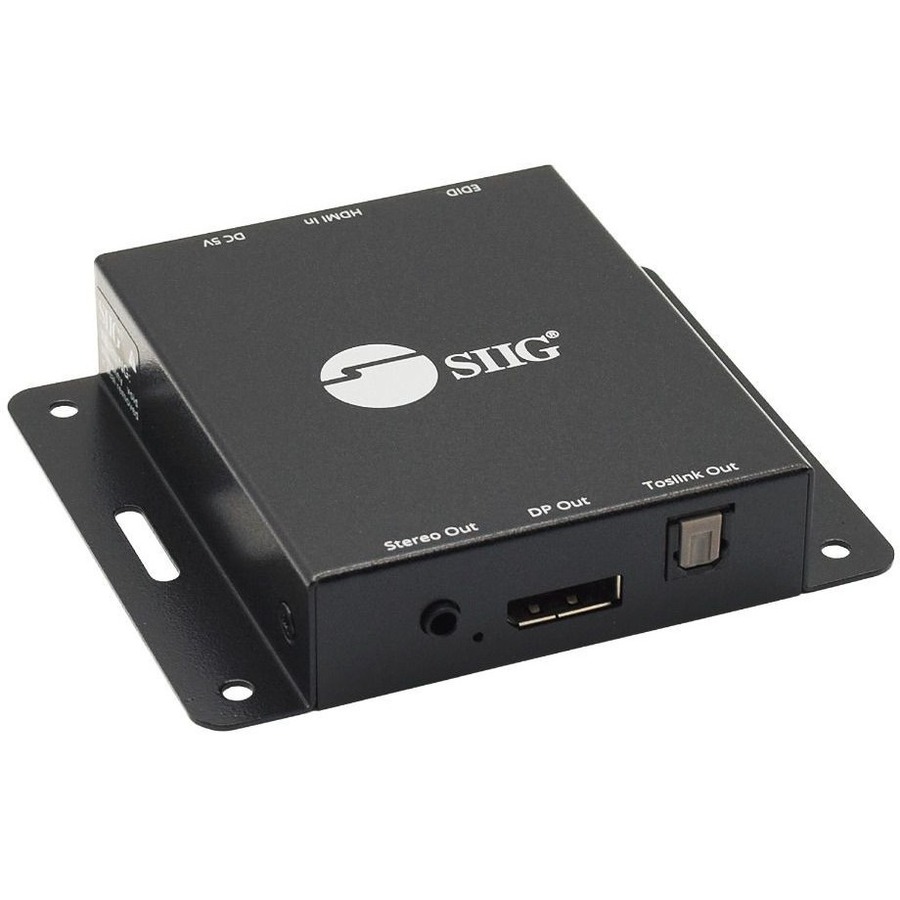

SIIG CE-H26A11-S1 Network Switch

SIIG - SIIG HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor, Compliant with HDCP 1.4/2.2, 18Gbps Video bandwidth, High performance HDMI to DisplayPort Adapter, Convert the HDMI 4K60Hz to DisplayPort 4K60Hz video only, support 3.5mm 2 Channel audio and S/PDIF 5.1 Channel audio out, color 4:2:0 or 4:2:2 will be converted to 4:4:4, Support EDID selection, ESD protection, Micro USB for FW update or Power input, Metal housing with Wall mountable, 3 years warranty, TAA Compliant
  • High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for DisplayPort to HDMI conversion
  • Supports UHD 3840x2160@60Hz (4:4:4 8bit), 4096x2160@60Hz, 1080p@60Hz, 1920x1080@144Hz resolution via EDID management push button, allowing for expanded compatibility with different monitors. Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
  • Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
  • Separate Toslink audio jack and 3.5mm Stereo audio jack, extracts 5.1ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device. Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time
  • Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
  • Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
  • Plug & Play Installation - No driver or software installation required
Read More
$183.09
In Stock
Add to Quote
SIIG Parts Products Model Overview
Products and parts from SIIG.
Technical Information
Functions:
  • Signal Conversion
  • Audio Extraction
Maximum Resolution:
3840 x 2160
Interfaces/Ports
USB:
Yes
DisplayPort:
Yes
HDMI:
Yes
Audio Line Out:
Yes
Physical Characteristics
Form Factor:
Wall Mountable
Height:
0.8"
Width:
3.4"
Depth:
2.8"
Weight (Approximate):
0.38 lb
Miscellaneous
Package Contents:
  • HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
  • Power Adapter
  • 2 x Screw Kit
  • Quick Start Guide
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0662774043920
UPC: 662774043920
EAN: 0662774043920
UNSPSC: 43211608
