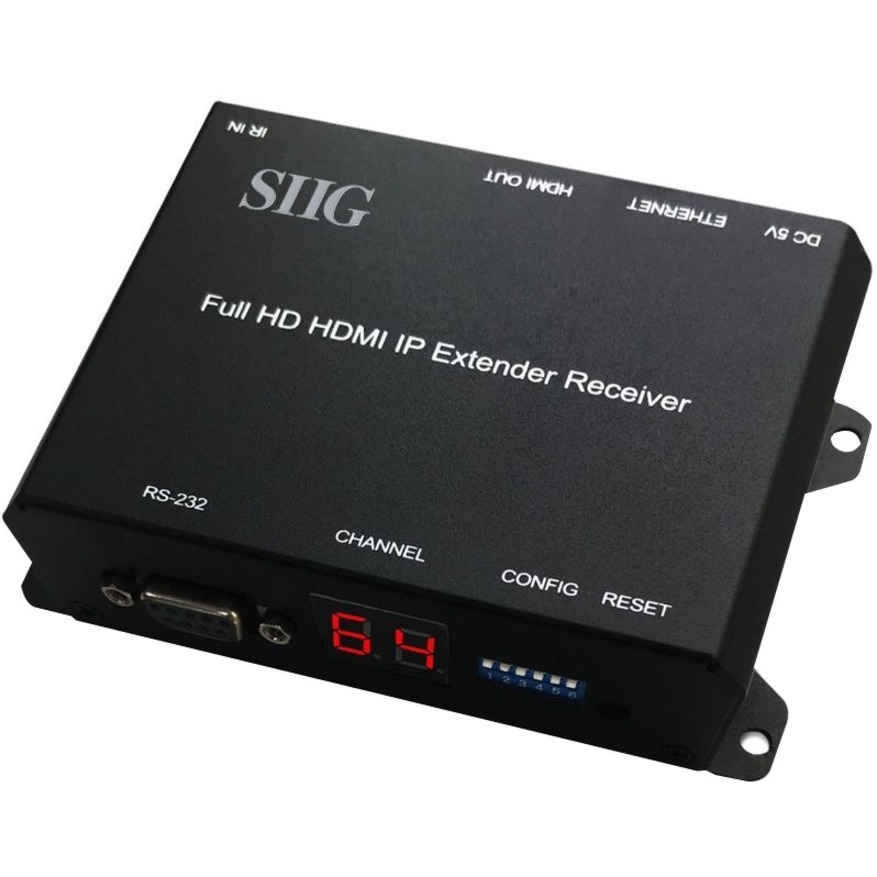

SIIG CE-H26511-S1 Network Switch

SIIG - Siig Full HD HDMI Extender over IP with PoE/RS-232 & IR, Decoder (RX), Extends HDMI signals over Cat5e/6 cabling up to 330ft (100m), Works with encoder of CE-H26411-S1 as a scalable matrix devices over the dedicated IP network and allows up to 256 units, support one to many / many to many, Provide the IR Pass Back function and RS-232 signal transmission to control the source device signal, Video resolution up to 1080p 60Hz, Metal housing, ESD protection, 2 years warranty, TAA compliant

Need a different version? See all SIIG Parts Products

$216.38

Chat Now for Qty Discount

Add to Quote

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

SIIG CE-H26511-S1 Network Switch Overview

Receives HDMI signals from a remote source device over UTP CAT5e/6 cabling up to 100 meters using PoE Gigabit switches
Features

Receives HDMI signals with stereo audio from a remote HDMI source device over UTP CAT5e/6 cabling up to 100 meter. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Encoder (TX), part# CE-H26411-S1, sold separately
Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 256 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
Power over Ethernet (PoE) powers the encoder (TXs) and decoder (RXs) over Cat cable from your PoE Gigabit Switch (purchase separately)
Full HD 1080p video resolution delivers stunning and clear images
IR pass back function allows you to control the source device from remote RX location
Computer control software allows you to select and switch between source devices (Matrix only)
Video protocol with H.264 compression over IP
Features MP3 audio compression and stereo 192Kbps encoder/ decoder

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Computers Supported:

Maximum Operating Distance:

328.08 ft

Device Type:

KVM Extender

Video

Graphic Mode:

Full HD

Maximum Video Resolution:

1920 x 1080

Interfaces/Ports

Network (RJ-45):

Yes

HDMI:

Yes

Number of HDMI Ports:

Number of Network (RJ-45) Ports:

Physical Characteristics

Product Color:

Black

Receiver Height:

3.23"

Receiver Width:

5.12"

Receiver Depth:

1.19"

Receiver Weight (Approximate):

10.24 oz

Miscellaneous

Package Contents:

Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver
1 x IR Receiver cable
Quick Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0662774043692

UPC: 662774043692

EAN: 0662774043692

UNSPSC: 43211603
