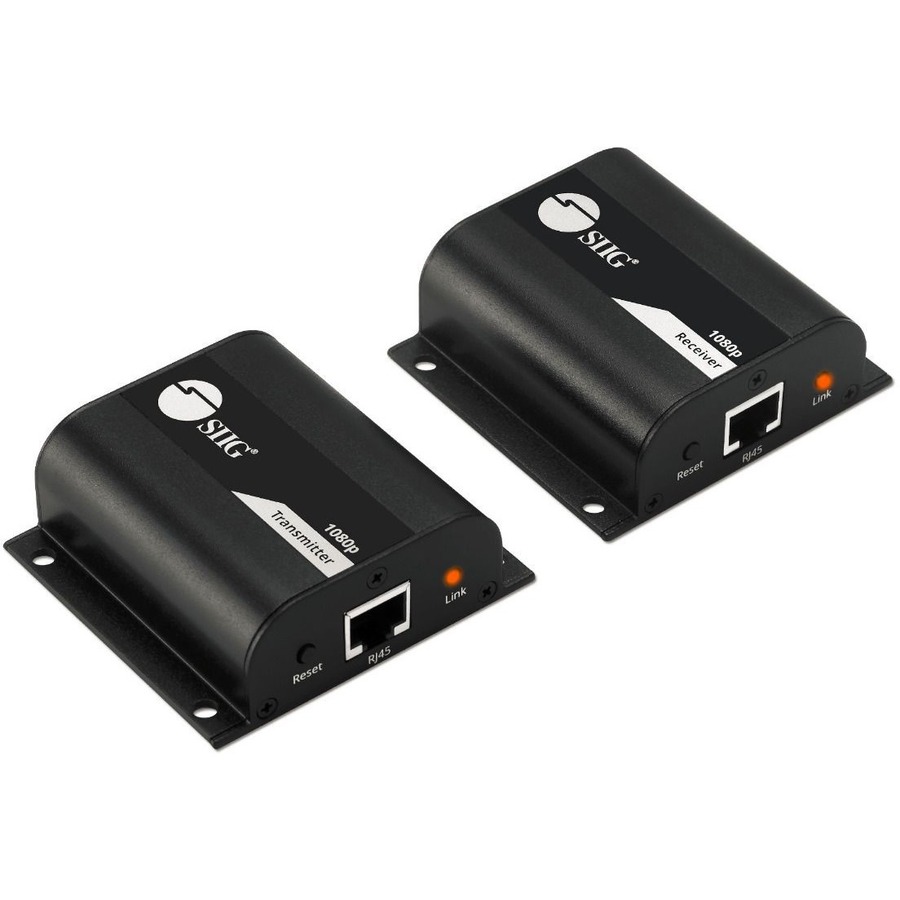

SIIG CE-H26111-S1 Network Switch

SIIG - SIIG Full HD HDMI Extender with IR, 164ft Over Cat5e/6, HDMI Extender over Cat5e/6 Extender Kit- Full HD 1080p up to 50m (164ft), TX & RX, HDMI 1080p Extender over Cat5e Cat6 with IR, 10.2Gbps video bandwidth- HDCP 1.2- EDID Passthrough- IR Extension- Reset Button- 7.1-ch Audio- Wall Mountable- Aliminum Metal Housing, 2 years warranty

Need a different version? See all SIIG Parts Products

$77.85
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG CE-H26111-S1 Network Switch
SIIG CE-H26111-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H26111-S1 Network Switch Overview

Extends HDMI audio/video signals up to 164ft over Cat5e/6 cable. Supports 480i/480p/720p/1080i/1080p at 60Hz resolutions

  • Extends HDMI signals up to 164ft (50m) via a single cost effective CAT5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup. Note: Extension over 100ft requires 100% copper Cat6 cable
  • Delivers high-quality video/audio transmission without compression for optimal performance, supports video resolution up to 1080p@60Hz (Full HD), and 2-channel stereo audio, compatible with HDCP compliant devices and content, HDMI 1.3 and HDCP 1.2 compliant
  • IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location of your display device with the included IR cables that transmit signals over Cat cable
  • Premium metal housing offers excellent heat dissipation, enhances durability, and minimizes EMI/RF interference for long life and dependable performance
  • Easy installation, no driver installation is required, integrated surface mounting bracket allows secure placement
Notes:
  • A good quality Cat5e/6 cable is essential in delivering quality content. Cat6 is recommended over Cat5e
  • STP (Shielded Twisted Pair) cabling is recommended for cable runs over 50ft
  • This extender pair (TX + RX) is point-to-point connection, it does not work through routers or switches
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
164.04 ft
Video
Graphics Modes:
Full HD
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Product Color:
Black
Transmitter Height:
0.97"
Transmitter Width:
2.60"
Transmitter Depth:
2.80"
Receiver Height:
0.97"
Receiver Width:
2.60"
Receiver Depth:
2.80"
Transmitter Weight (Approximate):
3.04 oz
Receiver Weight (Approximate):
2.88 oz
Miscellaneous
Package Contents:
  • 1 x Transmitter Unit
  • 1 x Receiver Unit
  • 1 x IR Blaster Cable
  • 1 x IR Receiver Cable
  • 2 x Power Adapter
  • User Reference Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774043623
UPC: 662774043623
EAN: 0662774043623
UNSPSC: 45111815
