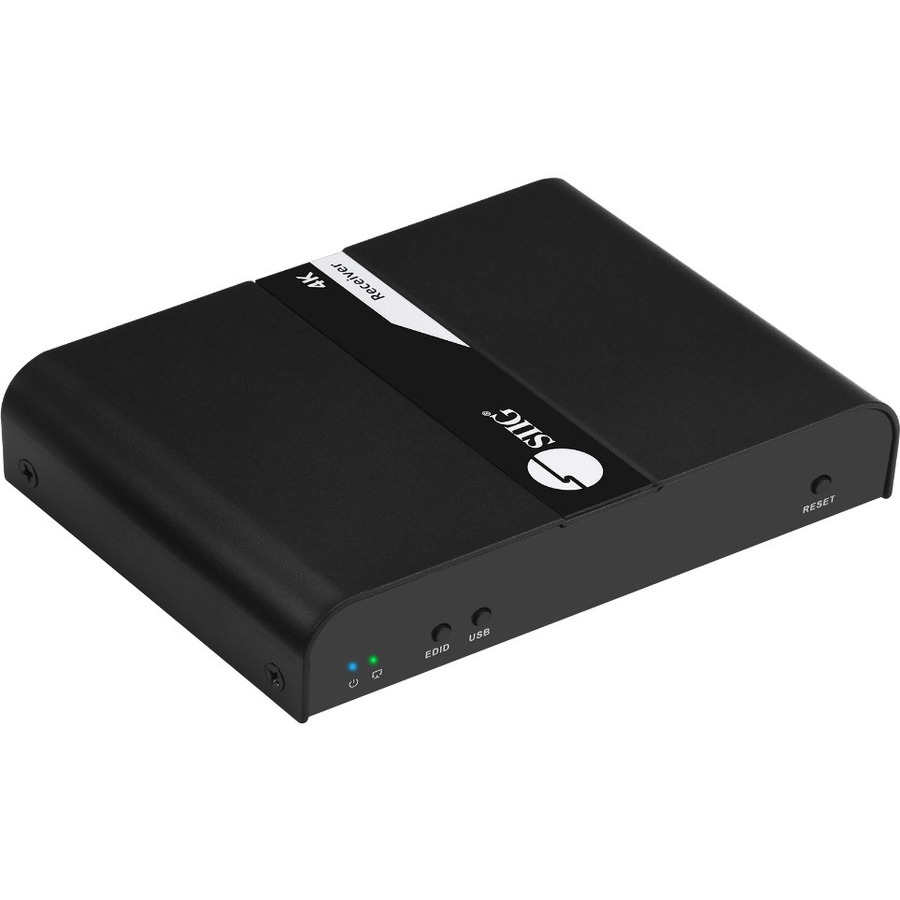

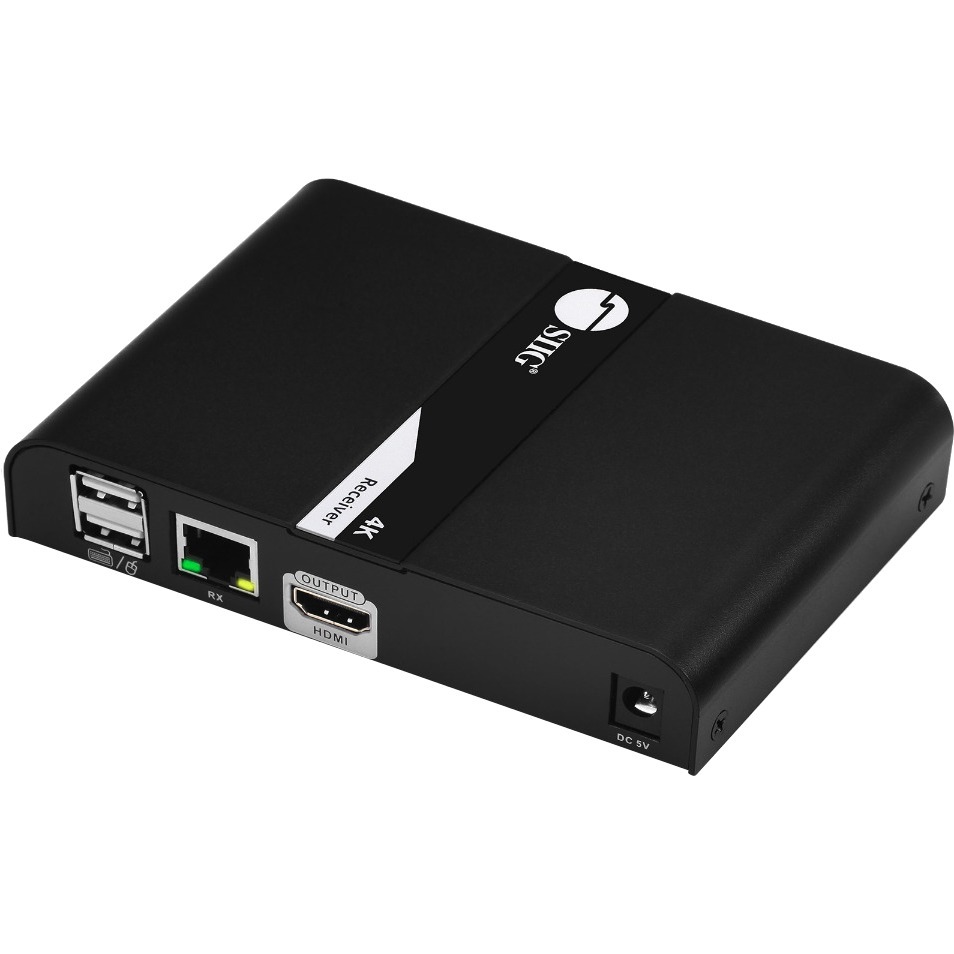

SIIG CE-H25L11-S1 Network Switch

SIIG - SIIG HDMI 4K30Hz KVM over Cat 6 Extender, Receiver, 1 Computer(s), 328 ft Range, 4K, 4096 x 2160 Maximum Video Resolution, 1 x Network (RJ-45), 3 x USB, 1 x HDMI, 120 V AC, 240 V AC Input Voltage

Need a different version? See all SIIG Parts Products

$166.45
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG CE-H25L11-S1 Network Switch
SIIG CE-H25L11-S1 Network Switch
SIIG CE-H25L11-S1 Network Switch SIIG CE-H25L11-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H25L11-S1 Network Switch Overview

Receives HDMI and USB signals up to 328ft over Cat6 cable with nearly zero latency, works with HDMI 4K30Hz KVM over Cat6 Extender, part # CE-H25H11-S1

  • Receives HDMI and USB signals and transmits them to a remote display up to 328ft (100m) over Cat6 network cable
  • Adds additional receivers to HDMI 4K30Hz KVM over Cat6 Extender Kit, part# CE-H25H11-S1 (sold separately) for One-to-many network connection. Note: One-to-many connection requires dedicated Gigabit Ethernet switch
  • Delivers Full HD video content up to 4K @30Hz with nearly zero latency
  • Perfect High Definition AV transmission solution for conference rooms, video shoots, multimedia education system, and digital signage advertising
  • Connect wired/wireless keyboard and mouse to control the computer from any extended display
  • High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
  • Plug-n-Play installation, no software installation or hardware setup is required
Technical Information
Connectivity Technology:
Wired
Number of Computers Supported:
1
Maximum Operating Distance:
328 ft
Video
Graphic Mode:
4K
Maximum Video Resolution:
4096 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
HDMI:
Yes
Number of HDMI Ports:
1
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
3
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC
Input Voltage Range:
100V AC to 240V AC
Physical Characteristics
Receiver Height:
0.98"
Receiver Width:
3.54"
Receiver Depth:
5.24"
Receiver Weight (Approximate):
11.04 oz
Miscellaneous
Package Contents:
  • HDMI 4K30Hz KVM over Cat 6 Extender - Receiver
  • 1 x Power Adapter
  • USB Type-B to Type-A cable
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774043197
UPC: 662774043197
EAN: 0662774043197
UNSPSC: 43211603
