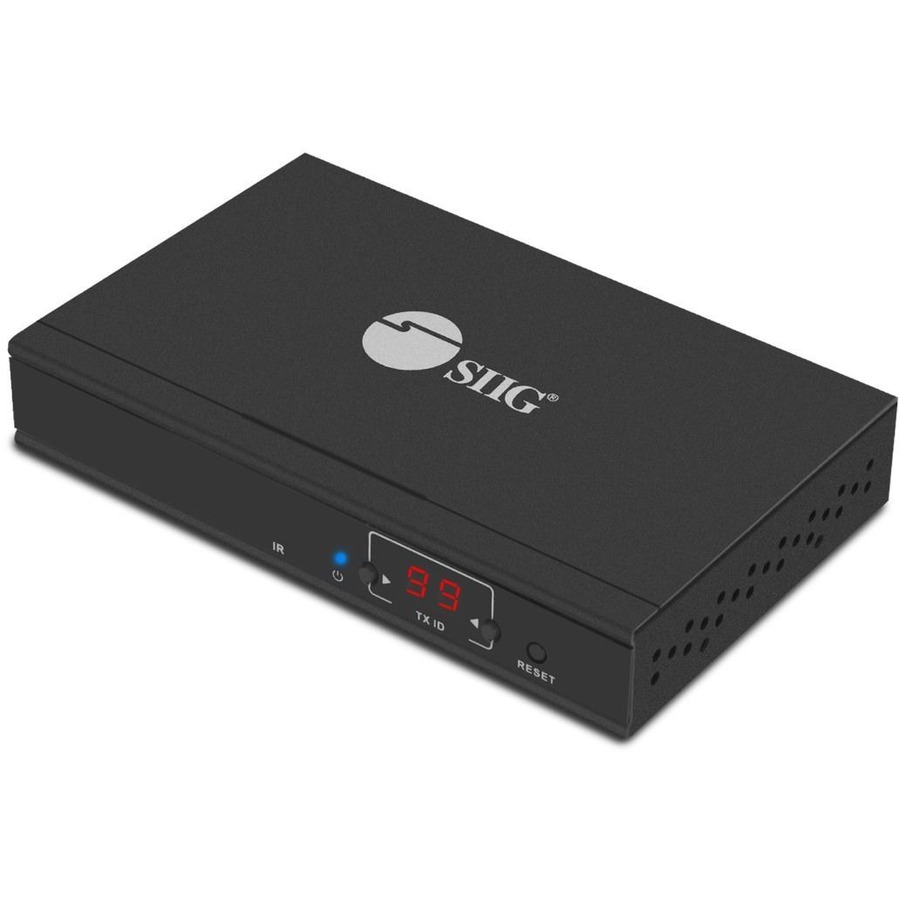

SIIG CE-H23B11-S2 Network Switch

SIIG - SIIG 1080p HDMI Over IP Extender with IR, Encoder (TX), 120M HDMI Over IP Network for Cat5e/6, One to Many/Many to Many, Multi-casting connection, HDMI over HDbitT, Support distance up to 394ft (120M), H.264 compression, Works with IGMP Network switch, Allows up to 256 total units, Resolution up to 1080p 60Hz, HDMI loopout/HDCP 1.4/IR pass-through/RS-232 Control/LED digital channel buttons or Remote control, Metal housing, 2 years warranty, Work for Decoder (RX) (CE-H23C11-S2)

Need a different version? See all SIIG Parts Products

$185.26
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG CE-H23B11-S2 Network Switch
SIIG CE-H23B11-S2 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H23B11-S2 Network Switch Overview
Features
  • Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately

  • Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately

  • Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location

  • Supports computer control software to select and switch between source devices (Matrix only)
  • Supports HDbit-T protocol with H.264 compression over IP
  • HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
  • RS-232 pass-through connection to control RS-232 enabled devices at either direction
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Maximum Operating Distance:
393.70 ft
Video
Graphics Modes:
Full HD
Supported Video Modes:
  • 480p
  • 720p
  • 1080i
  • 1080p
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Product Color:
Black
Transmitter Height:
0.94"
Transmitter Width:
5.50"
Transmitter Depth:
3.27"
Transmitter Weight (Approximate):
9.60 oz
Miscellaneous
Package Contents:
  • HDMI Over IP Extender with IR - Transmitter
  • Power Adapter
  • IR Blaster Extension Cable
  • 2 x Mounting Ears
  • 4 x Screw Kit
  • Remote Control
  • 3 Pin Phoenix Connector
  • User Reference Guide
Application/Usage:
  • Office
  • Educational Facilities
  • Shopping Center
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774045108
UPC: 662774045108
EAN: 0662774045108
UNSPSC: 43222619
