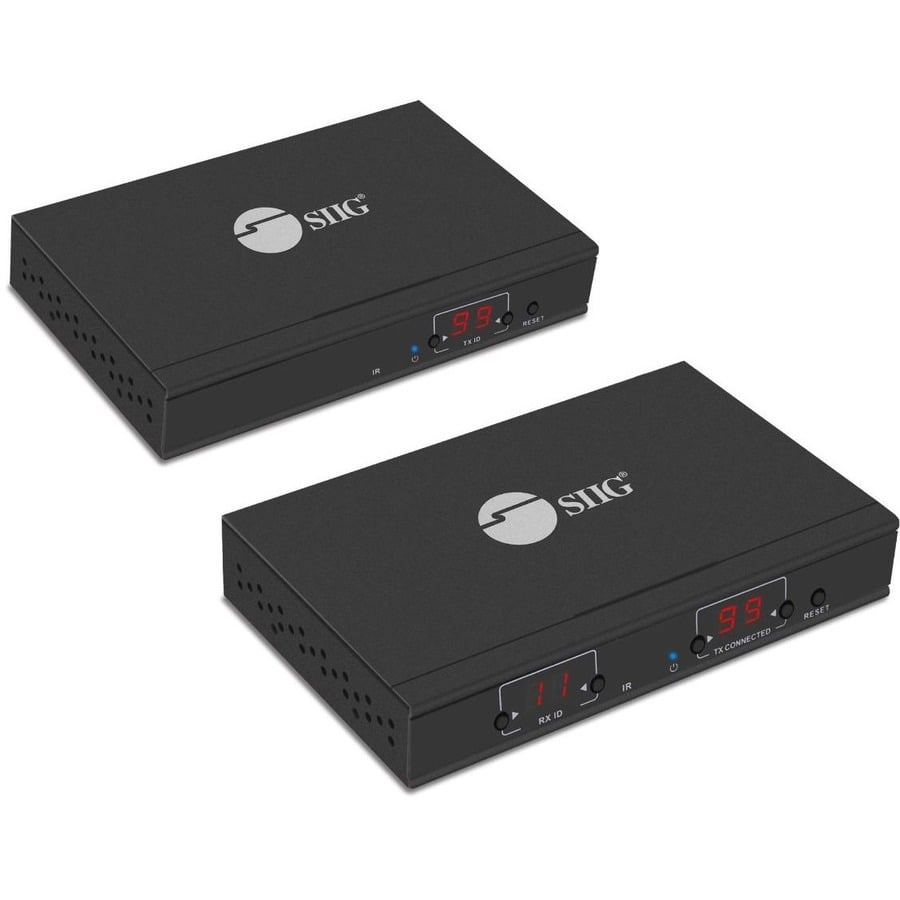

SIIG CE-H23A11-S2 Network Switch

SIIG - SIIG Full HD HDMI Over IP Extender Kit, 120M, Over IP Networks, Many to Many, Supports HDBit-T

Need a different version? See all SIIG Parts Products

$230.68
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SIIG CE-H23A11-S2 Network Switch
SIIG CE-H23A11-S2 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H23A11-S2 Network Switch Overview

Features

  • Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

  • Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately

  • Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images

  • Supports IR pass back function to control the source device from RX location

  • Supports computer control software to select and switch between source devices (Matrix only)

  • Supports HDbit-T protocol with H.264 compression over IP

  • HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

  • RS-232 pass-through connection to control RS-232 enabled devices at either direction

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
393.70 ft
Video
Graphics Modes:
Full HD
Supported Video Modes:
  • 480p
  • 720p
  • 1080i
  • 1080p
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
2
Remote (IR) Input:
1
Remote (IR) Output:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Product Color:
Black
Transmitter Height:
0.94"
Transmitter Width:
3.27"
Transmitter Depth:
5.50"
Receiver Height:
0.94"
Receiver Width:
3.27"
Receiver Depth:
5.50"
Transmitter Weight (Approximate):
9.60 oz
Receiver Weight (Approximate):
9.60 oz
Miscellaneous
Package Contents:
  • HDMI Over IP Extender with IR - Kit
  • 2 x Power Adapters
  • IR Blaster Extension Cable and IR Receiver Extension Cable
  • 4 x Mounting Ears
  • 8 x Screw Kit
  • Remote Control
  • 2 x 3 Pin Phoenix Connectors
  • User Reference Guide
Application/Usage:
  • Shopping Center
  • Office
  • Educational Facilities
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45111815
