Connectivity Technology:
Wired
Maximum Operating Distance:
200 ft
SIIG Parts Products Model Overview
Products and parts from SIIG.

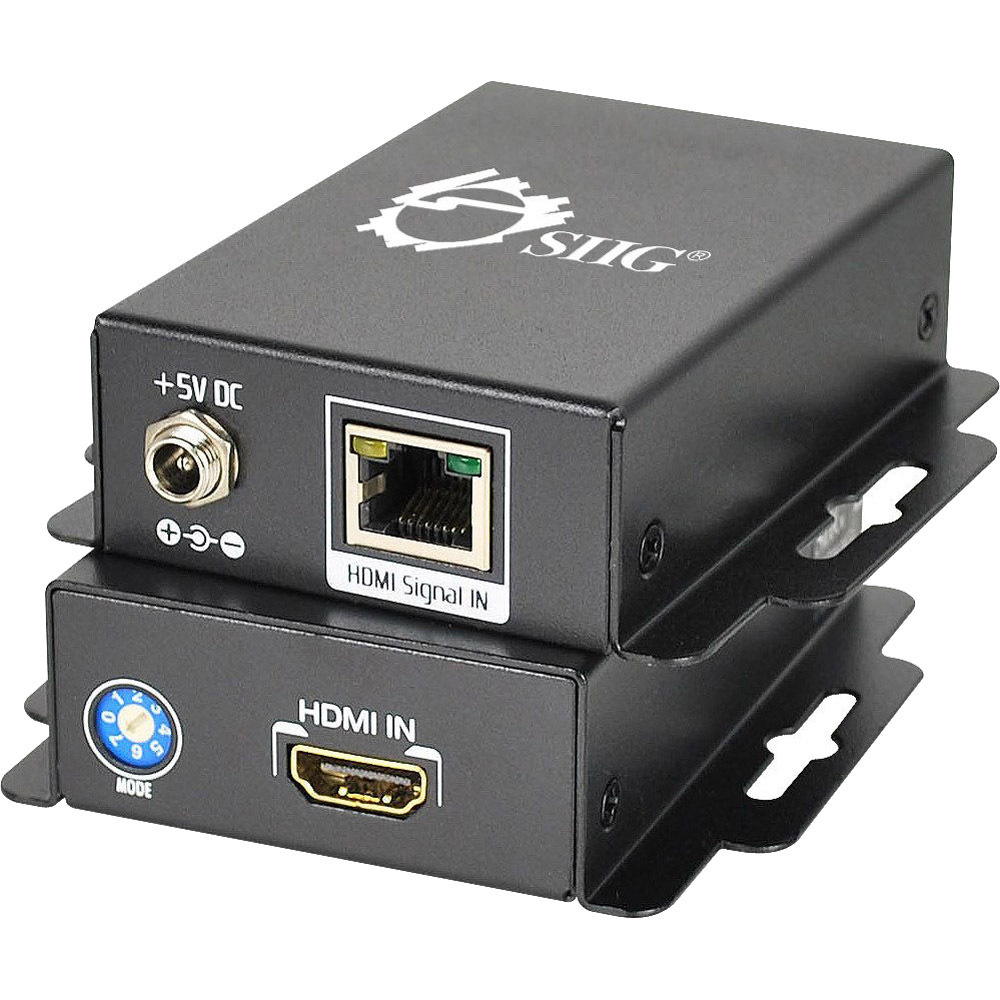

SIIG CE-H20L11-S1 Products Overview
SIIG's HDMI Extender over Single CAT5/6 with 3DTV Support is designed to extend audio/video transmissions from HDMI source to HDMI display device over a single cost-effective CAT5/5e/6 cable. It extends transmission distances up to 60m (200ft) @1080i, 40m (130ft) @1080p/24-bit, and 20m (65ft) @ 1080p/36-bit HDTV formats. This HDMI extender features adjustable 8-level equalization control to minimize cable skew, pure uncompressed 7.1 channel or stereo digital audio, and DTS-HD Master Audio and Dolby TrueHD Audio support.
The HDMI Extender over Single CAT5/6 with 3DTV Support is a cost-effective HDMI Extender solution enabling you to transmit high quality video and audio signals from DVD players, Blu-ray Disc player, PS3, PC, and many more to a distant display device at the minimal cost. It is HDMI 1.4a, HDCP 1.1, and RoHS compliant, FCC and CE approved, and is backed by SIIG's limited 3-year warranty.
Technical Information
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Color:
Black
Material:
Metal
Transmitter Height:
1.10"
Transmitter Width:
3.75"
Transmitter Depth:
3.60"
Transmitter Weight (Approximate):
8.80 oz
Miscellaneous
Package Contents:
- HDMI Extender over Single CAT5/6 with 3DTV Support (TX & RX units)
- Power adapter
- Installation kit
- User's manual
Certifications & Standards:
- FCC
- CE
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774013558, 7427457169198
UPC:
662774013558
EAN:
0662774013558, 7427457169198
UNSPSC:
45111815
Get help from a Barcoding Expert!
The SIIG CE-H20L11-S1 Products is also known as
CE-H20L11-S1
