Maximum Video Resolution:
7680 x 4320
SIIG CE-DP0S11-S1 Cables, Connectors, and Adapters
Part Number:
CE-DP0S11-S1
Model:
Parts
SIIG Parts Products Model Overview
Products and parts from SIIG.

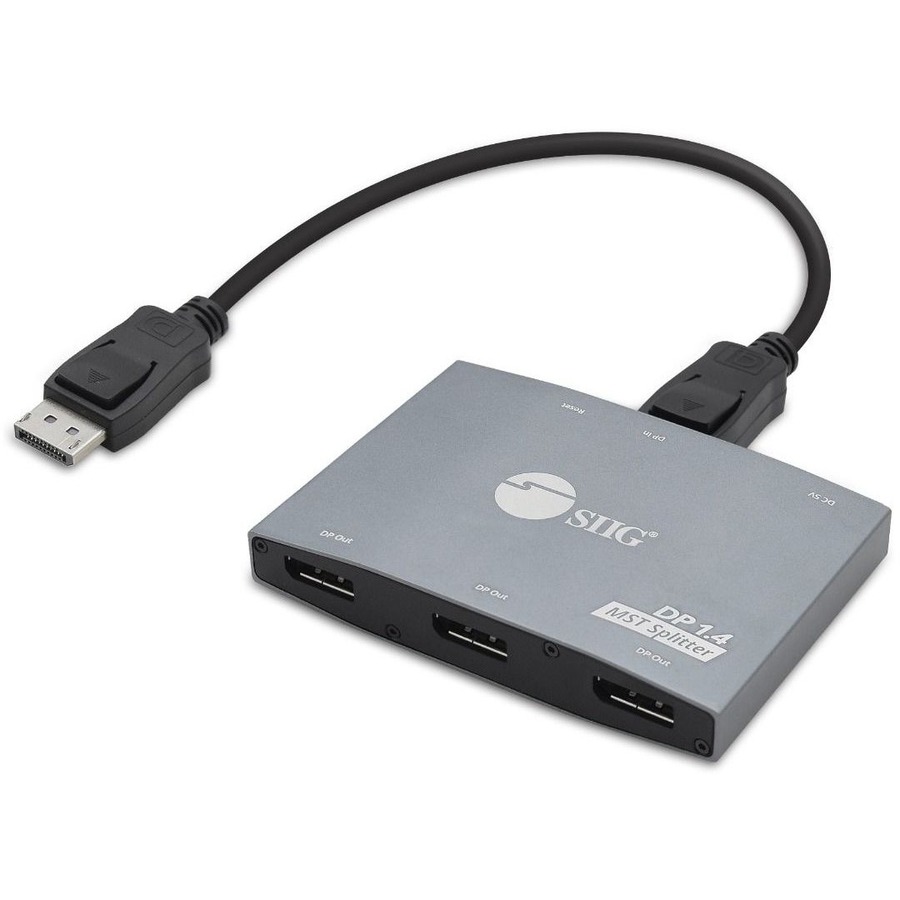

SIIG CE-DP0S11-S1 Cables, Connectors, and Adapters Overview
DP 1.4 MST Video Splitter Hub, Triple DP outputs, Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), 32.4Gbps, no driver required, Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz), supports DP 1.2 with limited performance, Full Windows compatibility, Mac OS supports mirror only, TAA Compliant
Features
Features
Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror, Extended and Panoramic video wall display modes
High Performance
Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1-ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously)
Video Resolution
Supports HDCP 2.2 and Ultra HD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz with HDR displays or Triple 4K (3840x2160) @30Hz
Display Modes
Supports various supplication such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Multiple Connectivity Port
Comes with one 20-pin DisplayPort 1.4 input port (Host), three 20-pin DisplayPort 1.4 video output ports, one 5-pin Micro USB for power input (at least 5V/500mA), one reset button, and one DisplayPort 1.4 detachable cable
Maximum Compatibility
Compatible with DisplayPort 1.4 graphics card with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
Aluminum Housing Design
Premium aluminum housing decreases outer interference and provides optimal video quality. The reset button allows re-detection of all the displays if any of the displays are not detected
Applications
- Video editing
- Workstation
- Office
- Home office
- Conference room
- Educational facilities
- Small seminar
- Gaming
- Medical office
- Small seminar
- Medical office
- Hotel
- Testing lab
- Banking
- Service counter
1. Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure, please check with the video card or system manufacture
Video
Interfaces/Ports
Number of DisplayPort Inputs:
1
Number of DisplayPort Outputs:
3
Physical Characteristics
Product Material:
Aluminum
Height:
0.7"
Width:
2.9"
Depth:
4.1"
Weight (Approximate):
4.16 oz
Miscellaneous
Package Contents:
- 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
- 1x Micro-USB power cable, 1.64ft (50cm)
- 1x User reference guide
Country of Origin:
Taiwan
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774045436
UPC:
662774045436
EAN:
0662774045436
UNSPSC:
32101529
