Number of Computers Supported:
2
Number of Local Users Supported:
1
SIIG Parts Products Model Overview
Products and parts from SIIG.

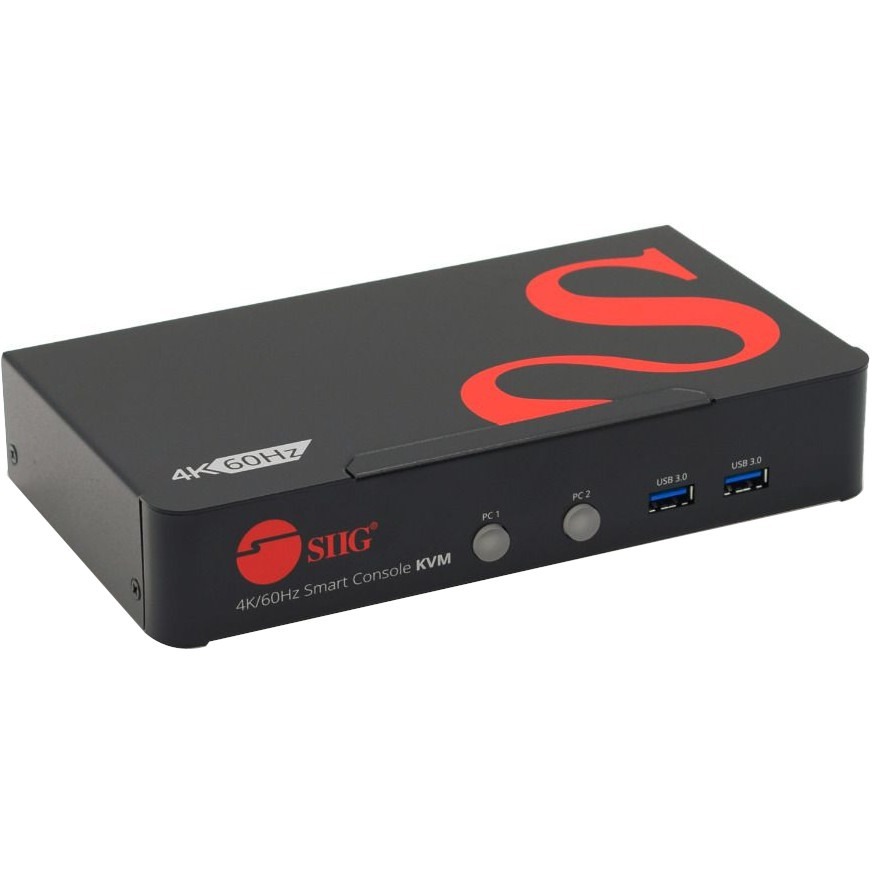

SIIG CE-DP0F11-S1 Network Switch Overview
2-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media Ports - 4K@60Hz
- Control two computers with 4K@60Hz DisplayPort 1.2 video system via one keyboard, mouse, and display
- Offers true 21.6Gbps Ultra-HD 4K@60Hz
- Features Auto-EDID detection which ensures easy display detection
- Easy system selection via front panel selection buttons or keyboard hot-key commands
- Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports for connecting multiple USB peripherals such as flash drives, printers, and more simultaneously
- Includes 3.5mm jack for microphone input and stereo speakers/headphones
- Auto-scan feature for quick browsing and system monitoring
- Firmware upgrade feature via Micro USB port for future compatibility
- Plug-n-play, no driver installation
Technical Information
Video
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
USB:
Yes
DisplayPort:
Yes
Number of USB Ports:
9
Number of DisplayPorts:
3
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Input Voltage Range:
100V AC to 240V AC
Physical Characteristics
Height:
1.4"
Width:
4.4"
Depth:
8"
Weight (Approximate):
1.54 lb
Miscellaneous

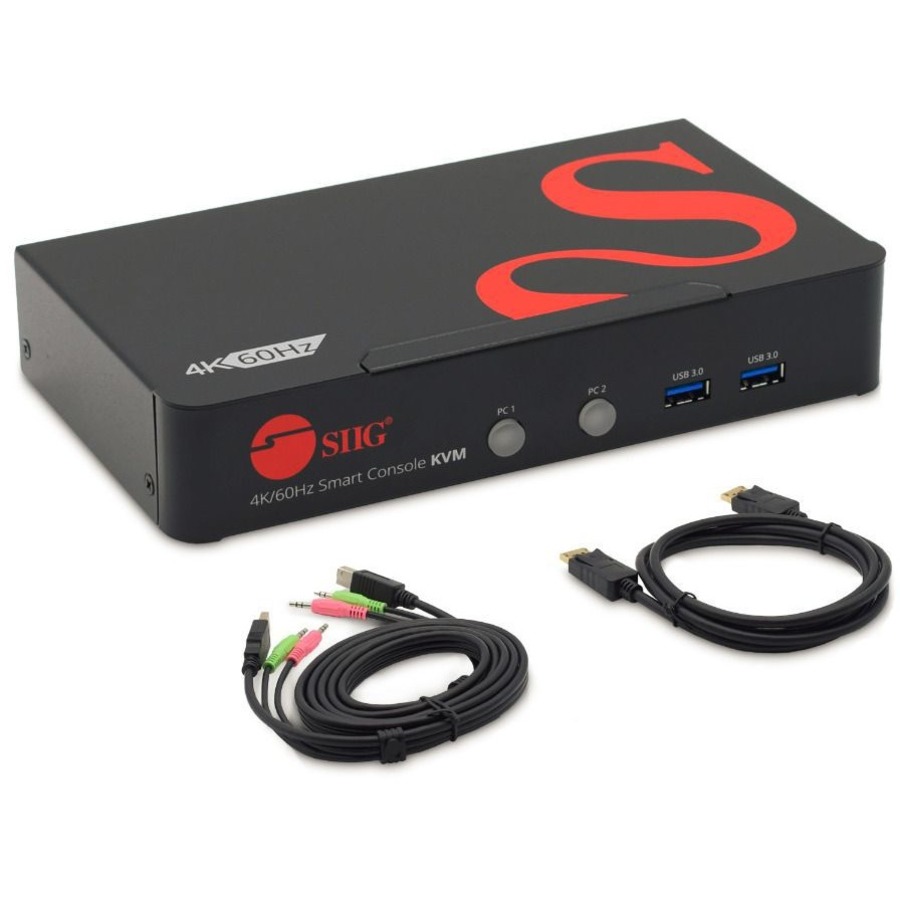

Package Contents:
- 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media
- Power Adapter + Power cord
- DisplayPort 1.2 cable, 1.8 meters (2pcs)
- 2 x USB 3.0 + MIC + Stereo 3-in-1 cable, 1.8 meters
- User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774042947
UPC:
662774042947
EAN:
0662774042947
UNSPSC:
43211601
