Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
200 ft
SIIG A/V Extenders Products Model Overview
Various audio/video extenders from SIIG.

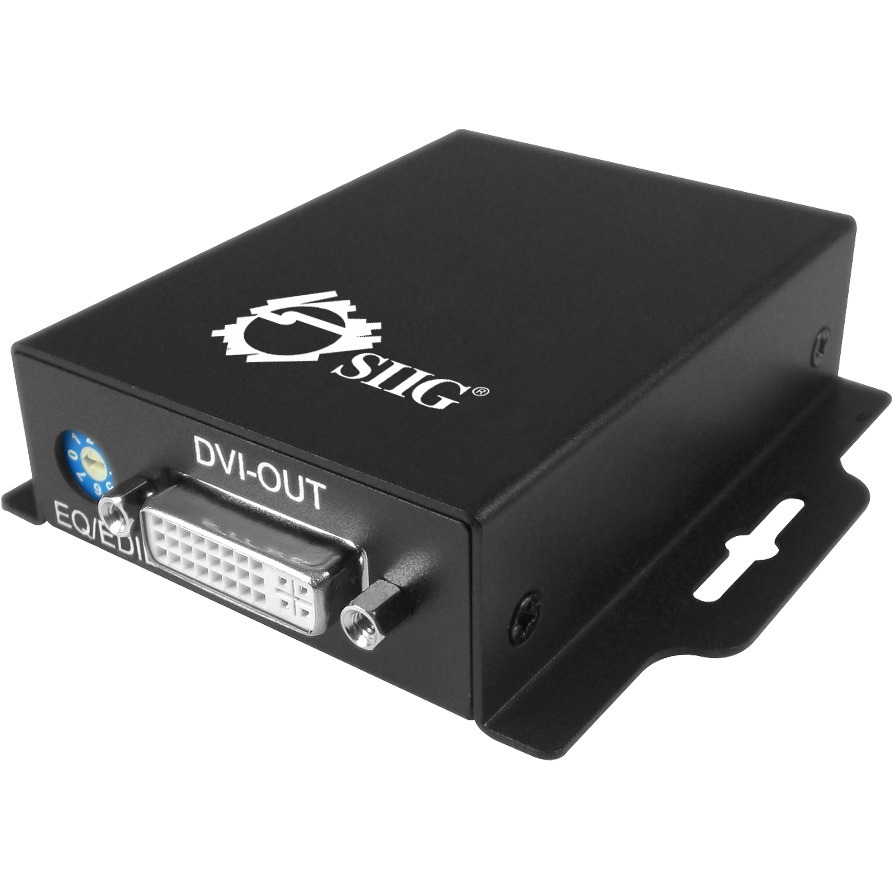

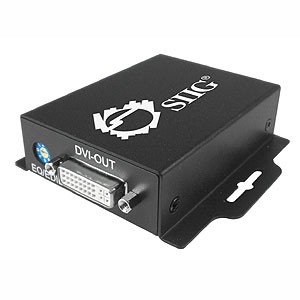

SIIG CE-D20111-S1 Products Overview
The DVI over CAT5e Extender from SIIG is a cost-effective product designed to efficiently extend DVI signals to a DVI-enabled display using economical CAT5e/6 cable. It extends transmission distances up to 60m/200ft @ XGA (1024x768 @ 60Hz) or 30m/100ft @ UXGA (1600x1200 @ 60Hz). The DVI over CAT5e Extender comes with a built-in EDID feature support on the receiver with adjustable 8-level EQ control to maximize video quality, and supports 1080i & 1080p HDTV resolutions and VESA standards. It is the perfect solution to extend high quality digital video to greater distances and still retains clear, crisp, high resolution image at minimal cost. The DVI over CAT5e Extender is fully DVI 1.1 compliant and is backed by SIIG's limited 3-year warranty.
Technical Information
Video
Graphics Modes:
- XGA
- UXGA
Maximum Video Resolution:
1600 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
DVI In:
Yes
DVI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of DVI Inputs:
1
Number of DVI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5e
Physical Characteristics
Transmitter Height:
1"
Transmitter Width:
3.50"
Transmitter Depth:
3.25"
Transmitter Weight (Approximate):
6.60 oz
Miscellaneous
Package Contents:
- DVI over CAT5e Extender ( 1x transmitter; 1x receiver)
- Power Adapter (5V, 4A)
- Quick Installation Guide
- Screw kit
Additional Information:
- Video Bandwidth : 1.65 Gpbs
- 1 x EQ Switch
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0662774005737, 7426900973917
UPC:
662774005737
EAN:
0662774005737, 7426900973917
UNSPSC:
45111815
Get help from a Barcoding Expert!
The SIIG CE-D20111-S1 Products is also known as
CE-D20111-S1
