SIIG CB-H20812-S1 Products

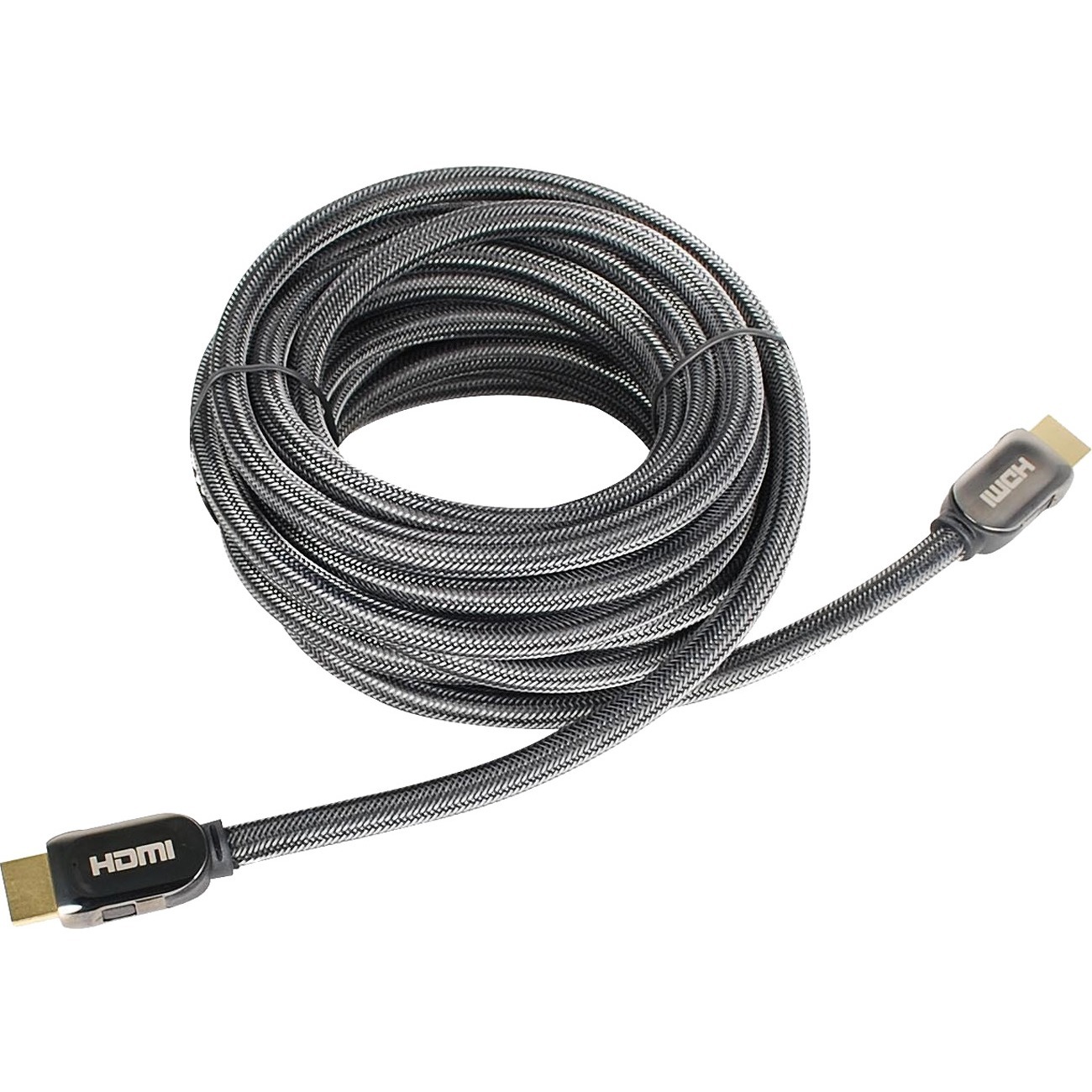

SIIG Cables - SIIG ProHD with Ethernet - 2M - 6.56 ft HDMI A/V Cable for Audio/Video Device, A/V Receiver - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HDMI Male Digital Audio/Video - 10.2 Gbit/s - Supports up to 4096 x 2160 - Shielding - Gold Plated Connector - 28 AWG - Black - 1

Enjoy the feast of movies with both video and sound device supported
With HDMI, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
EMI/RF Protection feature for better reliability and ensure maximum productivity
Fully compatible with audio/video devices

Need a different version? See all SIIG Cables Products

$39.68

In Stock

Add to Quote

Overview

SIIG Cables Products Model Overview

Various cables from SIIG

SIIG CB-H20812-S1 Products Overview

SIIG ProHD with Ethernet - 2M is designed to transmit high-bandwidth, uncompressed video and multi-channel digital audio between HDMI® compliant devices. It supports single-ink bandwidth speed up to 340 MHz (10.2 Gb/s) with up to 240Hz refresh rate offering clear and flicker-free video. This High Speed HDMI with Ethernet cable features 3D video, x.v.ColorTM, and Deep Color to bring stunning crystal clear images. High-bandwidth digital audio capabilities smoothly deliver high fidelity surround sound quality. Additional features include 28 AWG OFC (oxygen free copper) conductors with HD-PE injected dielectric and gold-plated connectors to provide maximum video performance and to prevent signal loss and screen ghosting, triple-layer shielding to protect against EMI/RFI interference and durable nylon braiding with PVC jacket to resist cuts for optimal cable protection and durability.

Detailed Specs

Technical Information

Cable Type:

HDMI

Cable Length:

6.56 ft

Connector Type on First End:

HDMI Digital Audio/Video - Male

Connector on First End Details:

1 x 19-pin HDMI Digital Audio/Video - Male

Connector Type on Second End:

HDMI Digital Audio/Video - Male

Connector on Second End Details:

1 x 19-pin HDMI Digital Audio/Video - Male

Connector Plating:

Gold

Conductor:

Oxygen-free Copper (OFC)

Shielding:

Yes

Device Supported:

Audio/Video Device
A/V Receiver

American Wire Gauge:

28 AWG

Data Transfer Rate:

10.2 Gbit/s

Supported Resolution:

4096 x 2160

Features:

EMI/RF Protection

Physical Characteristics

Product Color:

Black

Jacket Material:

Polyvinyl Chloride (PVC)

Weight (Approximate):

0.35 lb

Miscellaneous

Additional Information:

Professional quality High Speed HDMI® cable with Ethernet

Ready for today's high-definition and tomorrow's - supports up to 4K resolution (4096 x 2160p24), as well as today's 1080p

Supports 3D video over HDMI with compatible video equipment

120/240Hz refresh rate support offers clear, smooth and flicker-free video

High Speed HDMI - single-link bandwidth speeds up to 340 MHz (10.2Gbps) to support current high-definition and future HD devices

x.v.ColorTM - removes the color space limitations and allows the display of any visible color by the human eye

Deep Color - supports 8-bit, 10-bit, 12-bit, and 16-bit (RGB or YCbCr) color depths - offering over one billion colors providing stunning detail

Audio Return Channel - enables TVs to send audio data "upstream" to A/V receivers via the HDMI cable, eliminating the need for separate cables

Supports high-bandwidth uncompressed digital audio (such as Dolby® Digital and DTSTM) and lossless compressed digital audio formats (such as Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioTM)

Conductor: 28 AWG Oxygen-Free Copper (OFC)

Jacket: PVC

Assembly Required: No

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0662774008868

UPC: 662774008868

EAN: 0662774008868

UNSPSC: 26121604
