SIIG CB-DP0811-S1 Products

Part Number: CB-DP0811-S1
Model: Adapters
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Adapter Type
DisplayPort/HDMI
Connector Type on First End
DisplayPort Digital Audio/Video - Male
Connector on First End Details
20-pin DisplayPort Digital Audio/Video Male
Connector Type on Second End
HDMI Digital Audio/Video - Female

Product Description:

  SIIG DisplayPort to HDMI Adapter - 1 Pack - DisplayPort Male Digital Audio/Video - HDMI Female Digital Audio/Video - Black
Explore all SIIG Adapters Products
Add to Quote
SIIG CB-DP0811-S1 Products
SIIG CB-DP0811-S1 Products
SIIG CB-DP0811-S1 Products
SIIG CB-DP0811-S1 Products SIIG CB-DP0811-S1 Products SIIG CB-DP0811-S1 Products

SIIG Adapters Products Model Overview

Audo, Hard-Drive, and other adapters
SIIG CB-DP0811-S1 Products Overview

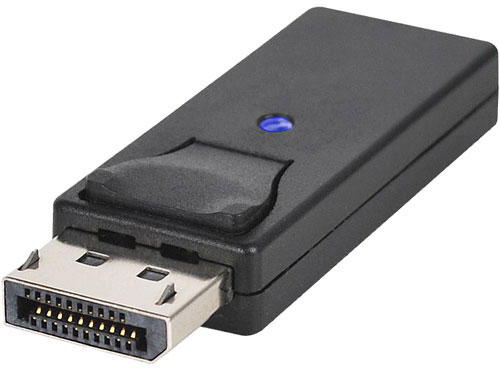

  • "Dongle" style DisplayPort to HDMI converter
  • Designed for connecting the latest DisplayPort equipped computer systems to HDMI equipped monitors and televisions, providing optimal video quality
  • Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gbps) specifications
  • Display modes:
    • PC VGA, SVGA, XGA, SXGA, and UXGA display modes (up to 1900 x 1200)
    • HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
  • Supports digital audio (system's DisplayPort must support audio)
  • Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant HDMI displays
  • Latching DisplayPort connector to prevent accidental disconnection
  • Video bandwidth: Up to 2.25 Gbps
Technical Information
Adapter Type:
DisplayPort/HDMI
Connector Type on First End:
DisplayPort Digital Audio/Video - Male
Connector on First End Details:
20-pin DisplayPort Digital Audio/Video Male
Connector Type on Second End:
HDMI Digital Audio/Video - Female
Connector on Second End Details:
19-pin HDMI Digital Audio/Video Female
Physical Characteristics
Product Color:
Black
Height:
0.8"
Width:
2.3"
Depth:
0.4"
Weight (Approximate):
0.48 oz
Miscellaneous
Compatibility:
  • Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant HDMI displays
  • Compliant with DisplayPort 1.1 (both 1.62 & 2.7 Gbps)
Assembly Required:
No
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0662774009872, 0818215580503, 0999567211359
UPC: 662774009872, 818215580503, 999567211359
EAN: 0662774009872, 0818215580503, 0999567211359
UNSPSC: 26121604
The SIIG CB-DP0811-S1 Products is also known as CB-DP0811-S1
