Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5
Network Band:
Dual Band
Sierra Wireless 1104572 Wireless Router
Part Number:
1104572

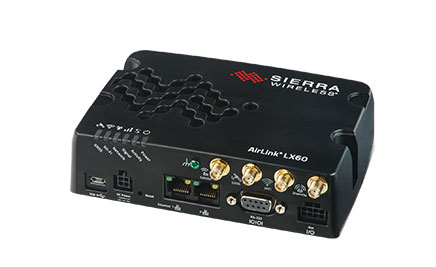

Sierra Wireless AirLink LX60 Dual Ethernet LTE Wireless Router Model Overview
The AirLink® LX60 Dual Ethernet LTE Router by Sierra Wireless is engineered for seamless LTE connectivity, making it perfect for commercial and enterprise applications. With dual Gigabit Ethernet ports and robust serial interfaces, the LX60 efficiently connects machines and provides reliable primary or backup network services, even in challenging locations. This rugged router is designed to operate within a wide temperature range and offers an array of features that ensure uninterrupted operation in various environments, including building automation, digital signage, taxis, and point-of-sale terminals.
Key features:
Specifications:
Key features:
- Out-of-Box LTE Connectivity: Instantly add LTE capabilities to existing equipment.
- Dual Ethernet and Serial Ports: Connects to a variety of field equipment with ease.
- Global LTE and Variants: Extended coverage for challenging deployments with LTE-M/NB-IoT options.
- Industrial Grade Power Supply: Operates reliably between -30°C to +65°C.
- Cloud Management: Manage devices effortlessly via ALMS Cloud or AMM On-Premises.
Specifications:
- Connectivity:
- 2 Gigabit RJ-45 Ethernet ports
- RS-232 serial port (DB-9)
- USB 2.0 Micro-B Connector
- Power Supply:
- Input Voltage: 7 to 36 VDC
- Low voltage disconnect to prevent battery drain
- Operating Conditions:
- Temperature: -30°C to +65°C
- Humidity: 90% RH @ 60°C
- Dimensions:
- 146 mm x 42 mm x 100 mm (106 mm including connectors)
- Weight: 250g
Sierra Wireless 1104572 Wireless Router Overview
Dual Ethernet LTE Router, for Primary or Backup Connectivity
The AirLink® LX60 is designed for Commercial and Enterprise LTE network connectivity. Dual Gigabit Ethernet and serial ports make it ideal to connect machines and provide primary or backup network connectivity.
LX60 provides purpose-built, secure, reliable, managed Cellular LTE networking in Building Automation, Digital Signage, Taxis, ATMs, Kiosks and Point-of-Sale terminals.
As part of the AirLink Essential series, the LX60 is designed to meet the environmental and performance requirements of these applications, while delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.
LX60 is available with optional Wi-Fi + GNSS and rated for shock, vibration and vehicle power supplies. It offers Dual Band 802.11ac Wi-Fi and dedicated 48 Channel GNSS, meeting the demands of Commercial fleets and Taxis requiring connectivity.
The LX60 comes in LTE Cat 4 regional variants, and a Global LPWA (Low-Power Wide Area) variant offering LTE-M/NB-IoT for applications where low data rates, enhanced cellular coverage and global deployment is required.
The AirLink® LX60 is designed for Commercial and Enterprise LTE network connectivity. Dual Gigabit Ethernet and serial ports make it ideal to connect machines and provide primary or backup network connectivity.
LX60 provides purpose-built, secure, reliable, managed Cellular LTE networking in Building Automation, Digital Signage, Taxis, ATMs, Kiosks and Point-of-Sale terminals.
As part of the AirLink Essential series, the LX60 is designed to meet the environmental and performance requirements of these applications, while delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.
LX60 is available with optional Wi-Fi + GNSS and rated for shock, vibration and vehicle power supplies. It offers Dual Band 802.11ac Wi-Fi and dedicated 48 Channel GNSS, meeting the demands of Commercial fleets and Taxis requiring connectivity.
The LX60 comes in LTE Cat 4 regional variants, and a Global LPWA (Low-Power Wide Area) variant offering LTE-M/NB-IoT for applications where low data rates, enhanced cellular coverage and global deployment is required.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Network Supported:
- LTE 2100
- LTE 1800
- LTE 2600
- LTE 900
- LTE 700
- LTE 800
- WCDMA 2100
- WCDMA 900
- GSM 900
- GSM 1800
Cellular Data Connectivity Technology:
- LTE
- HSPA+
- GPRS
Encryption Standard:
WPA2
Firewall Type:
NAT
Interfaces/Ports
Number of Network (RJ-45) Ports:
2
USB:
Yes
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
DIN Rail Mountable
Height:
1.7"
Width:
5.7"
Depth:
3.9"
Weight (Approximate):
8.82 oz
Miscellaneous
Package Contents:
- AirLink LX60 Dual Ethernet LTE Router
- DC Power Cable
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
Includes 1st Year AirLink Complete:
- AirLink Management Service (ALMS)
- Direct 24/7 Technical Support
- 3-year standard warranty; optional 2-year warranty extension
1-day Accelerated Hardware Replacement available through participating resellers
Item Numbers
GTIN:
0812320005647
UPC:
812320005647
EAN:
0812320005647
UNSPSC:
43222609
