Sierra Wireless 1103973 Wireless Transmitter / Receiver
Full specifications (PDF)

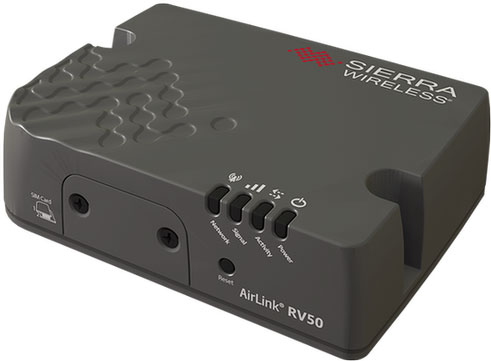

Sierra Wireless AirLink RV50/RV50X Wireless Router Model Overview
Key features:
- Ultra-low power consumption: Operates on less than 1W in idle mode, perfect for battery and solar applications.
- Global LTE coverage: Supports 21 LTE bands with two variants for worldwide compatibility.
- Remote management: Utilize cloud-based or on-premises services for monitoring and management.
- Rugged design: Built to MIL-STD-810G specifications, suitable for harsh environments.
- Advanced security: Supports up to 5 VPN tunnels for secure data communication.
Specifications:
- Power Consumption: Idle mode - 900 mW, Standby mode - 53 mW
- Input Voltage: 7 to 36 VDC
- Operating Temperature: -40°C to +70°C
- Dimensions: 119 mm x 34 mm x 85 mm
- Network Compatibility: LTE Category 3 and 6
- Ingress Protection: IP64 rated
- Certifications: Class I Div 2, RoHS, MIL-STD-810G
- Warranty: 3-year standard warranty with options for extension
Recommended Accessories
Category
- Network Antennas (4)
- Sierra Wireless Wireless Antenna (11)
- Sierra Wireless Wireless Router (18)
- Telecom Accessories (16)
Recommended Accessories for Model: Sierra Wireless 1103973 Wireless Transmitter / Receiver
Top Network Antennas Purchased With Sierra Wireless 1103973
-
Sierra Wireless 6000659 Network AntennasSierra Wireless AirLink Raven RV50 Mounting Bracket - DIN RailItem on backorder — chat for lead time$42.00 -
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71 -
Sierra Wireless 6001008 AccessorySierra Wireless 6-in-1 LTE/WiFi/GNSS Antenna - Threaded Bolt Mount - BlackShips from vendor — chat for lead time$337.14
Top Sierra Wireless Wireless Antenna Purchased With Sierra Wireless 1103973
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
-
Sierra Wireless 120-110-2205 AccessoryAntenna, Cellular Dual Band (CDMA 800/1900), Dipole (SMA)Ships from vendor — chat for lead time$18.57 -
Sierra Wireless 120-110-2210 AccessoryAntenna, WiFi 2.4 GHz Dipole with reverse polarity SMA connecterShips from vendor — chat for lead time$26.74
Top Sierra Wireless Wireless Router Purchased With Sierra Wireless 1103973
-
Sierra Wireless 6000533 AccessoryALEOS Application Development KitShips from vendor — chat for lead time$107.14 -
Sierra Wireless 6000659 Network AntennasSierra Wireless AirLink Raven RV50 Mounting Bracket - DIN RailItem on backorder — chat for lead time$42.00
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
Top Telecom Accessories Purchased With Sierra Wireless 1103973
-
Sierra Wireless 6000533 AccessoryALEOS Application Development KitShips from vendor — chat for lead time$107.14
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
-
Sierra Wireless 120-110-2205 AccessoryAntenna, Cellular Dual Band (CDMA 800/1900), Dipole (SMA)Ships from vendor — chat for lead time$18.57
Frequently Asked Questions
What LTE bands does the Sierra Wireless AirLink RV50 support in China?
The RV50 supports LTE bands 2, 4, 5, 13, 17, and 25 for China deployments. The RV50X variant extends support to an extensive range of LTE bands worldwide, making it suitable for global IoT and infrastructure applications.
What connectivity options and fallback networks are available on the RV50?
The RV50 provides primary LTE connectivity with fallback to 2G and 3G networks including WCDMA, EVDO, CDMA, GSM, EDGE, and GPRS. This multi-network capability ensures reliable connectivity in areas with limited LTE coverage, making it ideal for remote energy, utilities, and smart city deployments.
What host interfaces does the Sierra Wireless RV50 include?
The RV50 features 10/100 Base-T RJ45 Ethernet, RS-232 serial port, USB V2.0 Micro-B connector, and 2 SMA antenna connectors for primary and GPS/diversity functions. These interfaces support integration with SCADA systems, distribution management systems, and metering equipment.
What is the power consumption advantage of the RV50 compared to other industrial gateways?
The RV50 is designed as the industry's lowest power industrial-grade LTE gateway, dramatically reducing infrastructure costs when running on battery or solar power. This makes it particularly suitable for remote deployments where power availability is limited.
Does the RV50 support GPS and location tracking capabilities?
Yes, the RV50 includes GPS technology with acquisition times of less than 3 seconds for hot start and less than 45 seconds for cold start, with accuracy better than 10 meters. The device features 2 SMA antenna connectors supporting both primary and GPS/diversity antenna configurations.
What warranty and support does Barcodes Inc offer with the Sierra Wireless RV50?
We offer a standard 3-year warranty with the RV50, plus optional 2-year warranty extensions for extended coverage. The package includes a DC power cable and quick start guide, and we provide unrestricted device software upgrades throughout the warranty period. Contact us today at barcodesinc.com for warranty details and support options.
