Sierra Wireless 1102716 Wireless Router

The Sierra Wireless 1102716 Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Sierra Wireless AirLink MG90 - High Performance Multi-Network Vehicle Router - Dual LTE-A - NA & EMEA LTE Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 29, 30, TDD 41 with Fallback to WCDMA. Includes DC Power Cable - 3 Year Warranty
  • Extensible, multi-network connectivity with support for LTE-Advanced, dual radio dual concurrent 3x3 MIMO 802.11ac Wi-Fi, and 5-port Gigabit Ethernet, and FirstNet Band 14
  • Single or Dual LTE-Advanced (Carrier Aggregation) Wide Area Network (WAN) supporting up to 300 Mbps downlink speed
  • Commercially available FirstNet Band 14 option
  • State-of-the-art LTE coverage spanning 21 LTE frequency bands worldwide
  • Dual concurrent Gigabit Wi-Fi supports up to 1.3 Gbps, up to 128 clients, WPA2 Enterprise
  • Dual-SIM functionality to enable automatic failover between SIMs
  • Serial and USB connectivity
  • One product variant for all major North American and European network operators, and one product variant for all major Asia Pacific network operators
  • Automatic radio configuration based on the SIM
  • Support for vehicle telemetry to collect OBD-II vehicle telemetry data and monitor engine diagnostics
Read More
Discontinued Need Assistance?
Add to Quote
Sierra Wireless AirLink MG90 Wireless Router Model Overview
With extensible multi-network connectivity, the MG90 offers dual LTE-Advanced with Band 14 option, Gigabit Wi-Fi WAN and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems. The MG90 dynamically selects the best available network, based on user-customized scoring systems, using its intelligent policy defined link management, and is able to effortlessly switch between WAN connections to provide uninterrupted communications and prevent downtime, performance issues or dead zones. Together with the AirLink Connection Manager (ACM), the MG90 consolidates the security for all connected technologies in the vehicle area network (VAN), vastly simplifying deployment and enabling the enterprise to retain management control over network access and connected mobile assets.
Sierra Wireless 1102716 Wireless Router Overview

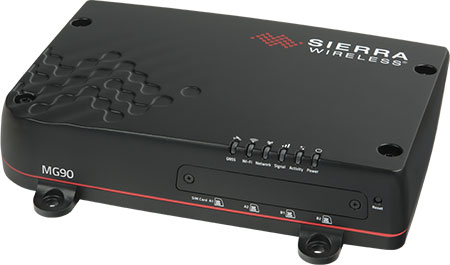

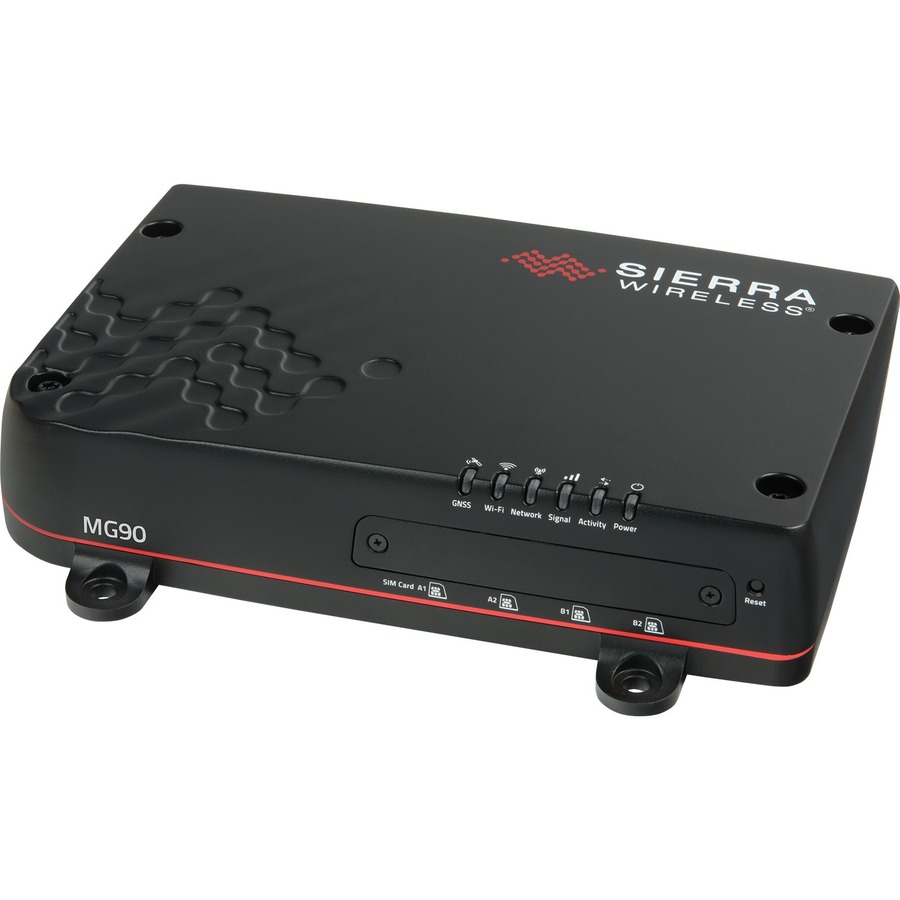

MG90 - High Performance LTE-Advanced Multi-Network Vehicle Router Multi-Network Platform, Vehicle Grade, Dual Concurrent Gigabit Wi-Fi

The AirLink® MG90 is a high performance LTE-Advanced vehicle networking platform, purpose built to provide secure, always-on connectivity for mission critical applications in public safety, transit and field services.

With extensible multi-network connectivity, the MG90 offers dual LTE-Advanced with Band 14 option, Gigabit Wi-Fi WAN and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems.

The MG90 dynamically selects the best available network, based on user customized scoring systems, using its intelligent policy-defined link management, and is able to effortlessly switch between WAN connections to provide uninterrupted communications and prevent downtime, performance issues or dead zones. Together with the AirLink® Connection Manager (ACM), the MG90 consolidates the security for all connected technologies in the vehicle area network (VAN), vastly simplifying deployments and enabling the enterprise to retain management control over network access and connected mobile assets.

Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • LTE 700
  • LTE 800
  • LTE 850
  • LTE 900
  • LTE 1700
  • LTE 1800
  • LTE 1900
  • LTE 2100
  • LTE 2500
  • LTE 2600
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1700
  • WCDMA 1800
  • WCDMA 1900
  • WCDMA 2100
Cellular Data Connectivity Technology:
  • LTE
  • HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
5
USB:
Yes
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Vehicle Mount
Height:
2.4"
Width:
10.7"
Depth:
8.7"
Weight (Approximate):
5.29 lb
Miscellaneous
Package Contents:
  • AirLink MG90 (NA & EMEA, Dual LTE-A)
  • DC Power Cable
  • Quick Start Guide
  • SMA wrench
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS 2
  • REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43222609
