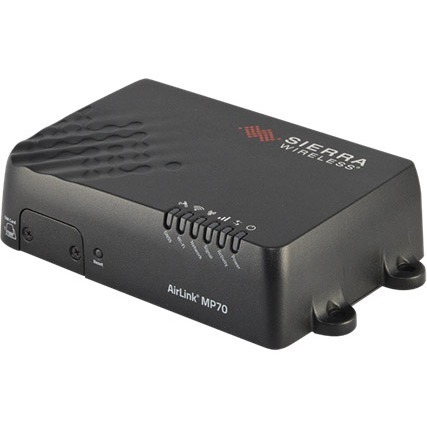

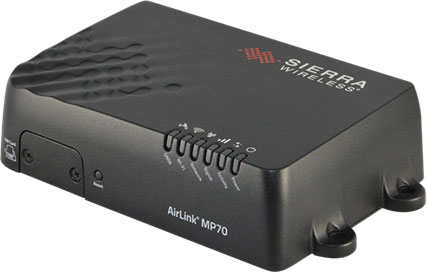

Sierra Wireless 1102709 Wireless Router

A newer version of this item is available.
It is replaced by the Sierra Wireless 1104071 Wireless Router.

Sierra Wireless AirLink MP70 - LTE-Advanced High Performance Vehicle Router with Ethernet/Serial/USB/GPS - North America & EMEA LTE Bands 1,2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 29, 30, TDD 41 with Fallback to WCDMA. Includes DC Power Cable - 3 Year Warranty

LTE-Advanced (Carrier Aggregation) Wide Area Network (WAN) supporting up to 300 Mbps downlink speed
State-of-the-art LTE coverage spanning 21 LTE frequency bands worldwide
Two product variants: one product variant for all major North American and European network operators, and one product variant for all major Asia Pacific network operators
Automatic radio configuration based on the SIM
Dual-SIM functionality to enable automatic failover between SIMs (Canada/EMEA/APAC)
4-port Gigabit Ethernet and next generation 802.11ac Gigabit Wi-Fi (3 x 3 MIMO) to support up to 1.3 Gbps, up to 128 clients, WPA2 Enterprise
High power Wi-Fi provides long range Vehicle Area Network (VAN) and simultaneous AP/Client Mode
Support for AirLink Vehicle Telemetry to collect OBD-II vehicle telemetry data and monitor engine diagnostics
Built-in vehicle ready I/O for remote monitoring of auxiliary devices, such as light bars, sirens and gun racks
Precision Geo-location via GNSS and Inertial Navigation System, allow local data streaming over the serial port and remotely over NMEA, TAIP, RAP, XORA protocols

Need a different version? See all Sierra Wireless AirLink MP70 Wireless Routers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Sierra Wireless AirLink MP70 Wireless Router Model Overview

Offering high power, long range Gigabit Wi-Fi and Gigabit Ethernet, and up to 300 Mbps downlink speeds over LTE-Advanced with automatic fallback to 3G networks, the AirLink MP70 unites the fleet with the enterprise network and enables multiple field applications to work simultaneously, further and faster from the vehicle than ever before. The MP70 supports advanced remote visibility and instant insight into the vehicle area network (VAN), field applications and assets, and the mobile workforce. Purpose built for the vehicle, the MP70 delivers superior reliability and uninterrupted operation in harsh mobile environments.

Sierra Wireless 1102709 Wireless Router Overview

The AirLink® MP70 is a high performance, LTE-Advanced vehicle router developed specifically for mission critical applications in public safety, transit and field services.

Offering high power, long range Gigabit Wi-Fi and Gigabit Ethernet, and up to 300 Mbps downlink speeds over LTE-Advanced, the AirLink MP70 unites the fleet with the enterprise network and enables multiple field applications to work simultaneously, further and faster from the vehicle than ever before.

The MP70 supports advanced remote visibility and instant insight into the vehicle area network (VAN), field applications and assets, and the mobile workforce. Purpose built for the vehicle, the MP70 delivers superior reliability and uninterrupted operation in harsh mobile environments.

Detailed Specs

Full specifications (PDF)

Wireless Specifications

Broadband Transmission Technology:

Cellular

ISM Band:

UNII Band:

Cellular Generation:

Cellular Network Supported:

LTE 2100
LTE 1900
LTE 1800
LTE 850
LTE 2600
LTE 900
LTE 700
LTE 800

Cellular Data Connectivity Technology:

LTE

Interfaces/Ports

Number of Network (RJ-45) Ports:

USB:

Yes

PoE (RJ-45) Port:

Network & Communication

Ethernet Technology:

Gigabit Ethernet

VPN Supported:

Yes

Physical Characteristics

Form Factor:

Vehicle Mount

Height:

1.8"

Width:

7.5"

Depth:

4.1"

Weight (Approximate):

1.68 lb

Miscellaneous

Package Contents:

MP70 - High Performance LTE-Advanced Vehicle Router
DC Power Cable
Quick Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS 2
REACH
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0705860673110, 0783555153505

UPC: 705860673110, 783555153505

EAN: 0705860673110, 0783555153505

UNSPSC: 43222609
