Sierra Wireless 1102695 Wireless Router

Part Number: 1102695
Model: AirLink MG90

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
Cellular
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes

Product Description:

  High Performance Multi-Network Vehicle Router - LTE-A - NA & EMEA LTE Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 29, 30, TDD 41 with Fallback to WCDMA. Includes DC Power Cable - 3 Year Warranty

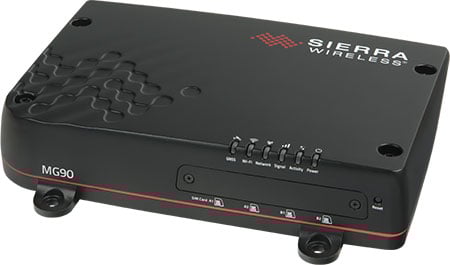

Sierra Wireless AirLink MG90 Wireless Router Model Overview

With extensible multi-network connectivity, the MG90 offers dual LTE-Advanced with Band 14 option, Gigabit Wi-Fi WAN and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems. The MG90 dynamically selects the best available network, based on user-customized scoring systems, using its intelligent policy defined link management, and is able to effortlessly switch between WAN connections to provide uninterrupted communications and prevent downtime, performance issues or dead zones. Together with the AirLink Connection Manager (ACM), the MG90 consolidates the security for all connected technologies in the vehicle area network (VAN), vastly simplifying deployment and enabling the enterprise to retain management control over network access and connected mobile assets.
Sierra Wireless 1102695 Wireless Router Overview

Multi-Network Platform, Vehicle Grade, Dual Concurrent Gigabit Wi-Fi

The AirLink® MG90 is a high performance LTE-Advanced vehicle networking platform, purpose built to provide secure, always-on connectivity for mission critical applications in public safety, transit and field services.

With extensible multi-network connectivity, the MG90 offers dual LTE-Advanced with Band 14 option, Gigabit Wi-Fi WAN and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems.

The MG90 dynamically selects the best available network, based on user customized scoring systems, using its intelligent policy-defined link management, and is able to effortlessly switch between WAN connections to provide uninterrupted communications and prevent downtime, performance issues or dead zones. Together with the AirLink® Connection Manager (ACM), the MG90 consolidates the security for all connected technologies in the vehicle area network (VAN), vastly simplifying deployments and enabling the enterprise to retain management control over network access and connected mobile assets.

Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • WCDMA 1900
  • WCDMA 2100
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1700
  • WCDMA 1800
  • LTE 700
  • LTE 800
  • LTE 850
  • LTE 900
  • LTE 1700
  • LTE 1800
  • LTE 1900
  • LTE 2100
  • LTE 2500
  • LTE 2600
Cellular Data Connectivity Technology:
  • LTE
  • HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
5
USB:
Yes
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Height:
2.4"
Width:
10.7"
Depth:
8.7"
Weight (Approximate):
5.29 lb
Miscellaneous
Package Contents:
  • MG90 - High Performance LTE-Advanced Multi-Network Vehicle Router
  • DC Power Cable
  • Quick Start Guide
  • SMA Wrench
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS 2
  • REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43222609
