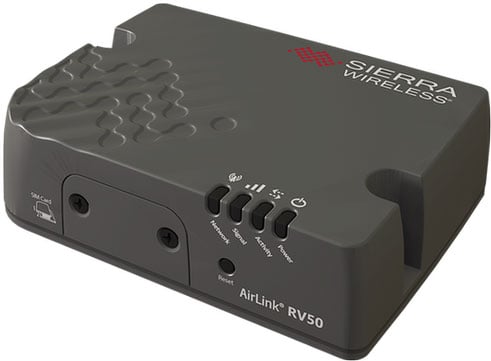

Sierra Wireless AirLink RV50/RV50X Wireless Router Model Overview
The AirLink RV50 Industrial LTE Gateway from Sierra Wireless delivers unmatched LTE performance while consuming less power than its competitors, making it ideal for remote, solar, or battery-powered applications. Designed to thrive in challenging industrial environments, it features rugged construction with IP64 ingress protection, allowing for seamless integration into energy, utilities, and smart-city infrastructures. With extensive global LTE coverage and dual-SIM functionality, the RV50 ensures continuous connectivity for critical assets while facilitating cost-effective deployments.
Key features:
- Ultra-low power consumption: Operates on less than 1W in idle mode, perfect for battery and solar applications.
- Global LTE coverage: Supports 21 LTE bands with two variants for worldwide compatibility.
- Remote management: Utilize cloud-based or on-premises services for monitoring and management.
- Rugged design: Built to MIL-STD-810G specifications, suitable for harsh environments.
- Advanced security: Supports up to 5 VPN tunnels for secure data communication.
Specifications:
- Power Consumption: Idle mode - 900 mW, Standby mode - 53 mW
- Input Voltage: 7 to 36 VDC
- Operating Temperature: -40°C to +70°C
- Dimensions: 119 mm x 34 mm x 85 mm
- Network Compatibility: LTE Category 3 and 6
- Ingress Protection: IP64 rated
- Certifications: Class I Div 2, RoHS, MIL-STD-810G
- Warranty: 3-year standard warranty with options for extension
Sierra Wireless 1102555 Wireless Router Overview
Industrial Grade, LTE-Advanced Performance, Low Power
The AirLink RV50 is the industry's lowest power and most rugged LTE gateway. Simple to install and easy to manage, this industrial-grade gateway is designed to connect critical assets and infrastructure. Ideal for energy, tilities and smartcity applications, the RV50 provides real-time remote connectivity for SCADA, distribution management systems and metering. With the lowest power consumption available on the market, the RV50 dramatically reduces infrastructure costs when running on battery or solar power. The RV50X variant supports an extensive range of LTE bands worldwide, and its LTE-Advanced capabilities deliver up to 300 Mbps downlink speeds. For deployments in areas with limited LTE coverage, the RV50 provides fallback to 2G and 3G networks. Furthermore, the RV50 provides programmability to enable edge computing applications, using the ALEOS Application Framework (AAF).
RUGGED DESIGN FOR DEMANDING ENVIRONMENTS
The RV50 is designed to withstand harsh industrial conditions, and is capable of surviving 5 V brownouts and spikes from -600 VDC to 200 VDC. Certified as Class I Div 2, it is ideal for hazardous environments. The die cast aluminum housing is sealed to meet IP64 for resistance to dust and water ingress. The RV50 is tested to meet and exceed the MIL-STD-810G specification for shock, vibration, temperature and humidity. The built-in power supply protection make it
suitable for harsh electrical environments such as compressors, generators, and excavators.
ULTRA-LOW POWER CONSUMPTION
The RV50 offers best-in-class power consumption combined with LTE performance, and is optimized for battery and solar applications. It is the industry's only LTE gateway with 2G power consumption, operating at 900 mW in idle mode. For 2G and 3G deployments migrating to LTE, the RV50 will work with existing power infrastructure, eliminating the need to invest in replacement solar panels or batteries. Standby Mode provides additional protection for batteries by dropping power consumption to 53 mW, and can be triggered by timers, low voltage detection or I/O.
SIMPLIFIED DEPLOYMENT
The RV50 automatically configures the radio based on the SIM, which provides versatility and simplicity when changing operator networks. Ideal for global deployments, the RV50X provides worldwide LTE coverage with just two product variants; one for North America and EMEA, and one for Asia-Pacific.
BEST-IN-CLASS REMOTE MANAGEMENT
Network Management solutions for the RV50 allow over-the-air registration, configuration and software updates, and can be deployed either as a cloudbased service, or as a licensed software platform in the enterprise data center. Both options provide a centralized and remote view of an entire fleet and enable simplified management, control and monitoring of connected RV50s and critical infrastructure
AirLink Management Service (ALMS) is a secure, centralized cloud-based service that remotely monitors and manages signal strength, network technology and location. ALMS provides dashboards with up-to-date views of an entire deployment, and custom alerts to monitor and report critical events, to increase efficiency and prevent downtime.
AirLink Mobility Manager (AMM) is a licensed, unified software platform which can be deployed in the enterprise data center, and provides a consolidated network view of an entire fleet, using a virtual dashboard to monitor, report, manage, and troubleshoot all mobile resources as required.
