Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 4
Sierra Wireless 1102374 Wireless Router
Part Number:
1102374
Model:
AirLink GX450/400

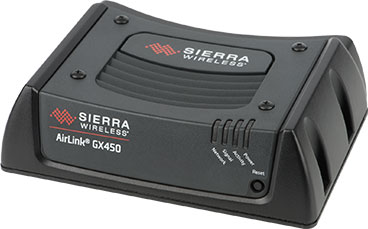

Sierra Wireless AirLink GX450/400 Wireless Router Model Overview
The Sierra Wireless AirLink GX450 Mobile Gateway is built for rugged environments, delivering reliable 4G mobile communications for in-vehicle applications. This secure gateway extends broadband connectivity to a variety of devices, ensuring seamless access to the enterprise network for mobile users in the field. With its MIL-STD-810G certification, it withstands harsh conditions, allowing you to efficiently monitor vehicle health, workforce safety, and critical communications, all while reducing operational costs.
Key Features:
- Rugged design that exceeds MIL-STD-810G specifications for shock and vibration.
- State-of-the-art LTE coverage spanning 11 frequency bands.
- Remote management with AirLink Management Service (ALMS).
- 5 VPN tunnels for secure data transmission.
- Integrated events engine for monitoring vehicle and workforce status.
Specifications:
- Supported Frequency Bands:
- LTE: B2, B4, B5, B13, B17, B25 (North America)
- WCDMA: B1, B2, B8
- Quad-band GSM/GPRS/EDGE
- Interfaces:
- 1 Ethernet, 1 RS-232 serial, 1 USB, 2 cellular and 1 GPS antenna connectors
- Operating Temperature: -30°C to +70°C
- Ingress Protection: IP64 rated
- Size: 142 x 98 x 41 mm
- Weight: 397g
Sierra Wireless 1102374 Wireless Router Overview
The AirLink® GX450 is a rugged, secure mobile gateway designed to deliver mission-critical communications for in-vehicle applications. With LTE coverage on major global networks, the GX450 extends broadband connectivity to a wide range of devices and applications. It extends the enterprise network and management to the fleet, ensuring reliable, secure broadband data access for mobile users in the field.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Cellular Network Supported:
- CDMA 800
- CDMA 1900
- LTE 700
- LTE 850
- LTE 1900
Cellular Data Connectivity Technology:
- LTE
- EVDO
Total Wireless Transmission Speed:
6.75 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
USB:
Yes
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
VPN Supported:
Yes
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43222609
Recommended Accessories
Category
- Antennas (1)
- Network Antennas (2)
- Sierra Wireless Wireless Antenna (5)
- Sierra Wireless Wireless Router (21)
- Telecom Accessories (21)
Recommended Accessories for Model: Sierra Wireless 1102374 Wireless Router
Top Antennas Purchased With Sierra Wireless 1102374
-
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Network Antennas Purchased With Sierra Wireless 1102374
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71 -
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Sierra Wireless Wireless Antenna Purchased With Sierra Wireless 1102374
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
-
Sierra Wireless 120-110-2205 AccessoryAntenna, Cellular Dual Band (CDMA 800/1900), Dipole (SMA)Ships from vendor — chat for lead time$18.57 -
Sierra Wireless 120-110-2210 AccessoryAntenna, WiFi 2.4 GHz Dipole with reverse polarity SMA connecterShips from vendor — chat for lead time$26.74
Top Sierra Wireless Wireless Router Purchased With Sierra Wireless 1102374
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86 -
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00 -
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Top Telecom Accessories Purchased With Sierra Wireless 1102374
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
-
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00
-
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Frequently Asked Questions
What connectivity options does the Sierra Wireless GX450 provide?
The GX450 is a mobile gateway that delivers LTE coverage on major global networks and includes HSPA+ fallback connectivity. It features multiple connection ports including Ethernet, Serial, USB, and GPS, along with I/O capabilities to extend broadband connectivity to a wide range of devices and applications in the field.
Is the Sierra Wireless 1102374 suitable for in-vehicle applications?
Yes, the GX450 is specifically designed as a rugged, secure mobile gateway for mission-critical in-vehicle communications. It extends enterprise network management to the fleet, ensuring reliable and secure broadband data access for mobile users operating in the field.
What warranty and support does the Sierra Wireless GX450 include?
We offer a 3-year standard warranty with the GX450, and an optional 2-year warranty extension is available. Sierra Wireless also provides unrestricted device software upgrades to ensure your gateway stays current with the latest features and security updates.
What are the physical dimensions and weight of the GX450?
The Sierra Wireless GX450 measures 272mm x 220mm x 60mm (10.71in x 8.66in x 2.36in) and weighs 2.4kg (5.3 lb), making it compact enough for mobile deployment while maintaining durability for field operations.
What LTE bands does the GX450 support?
The GX450 supports LTE Bands 2, 4, and 17, providing coverage across major global networks. This multi-band support ensures broad compatibility with carrier networks in North America and other regions.
What is included in the box with the Sierra Wireless GX450?
The GX450 ships with a DC power cable, quick start guide, and SMA wrench to facilitate installation and deployment. Contact us today to order this gateway and have it ready for your mobile broadband needs.
