Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 4
Sierra Wireless 1102373 Wireless Router
Part Number:
1102373
Model:
AirLink GX450/400

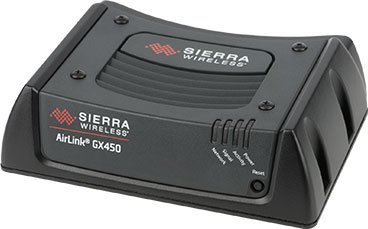

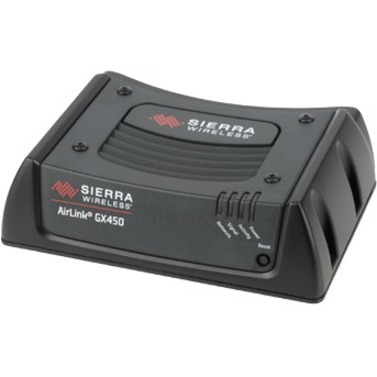

Sierra Wireless AirLink GX450/400 Wireless Router Model Overview
The Sierra Wireless AirLink GX450 Mobile Gateway is built for rugged environments, delivering reliable 4G mobile communications for in-vehicle applications. This secure gateway extends broadband connectivity to a variety of devices, ensuring seamless access to the enterprise network for mobile users in the field. With its MIL-STD-810G certification, it withstands harsh conditions, allowing you to efficiently monitor vehicle health, workforce safety, and critical communications, all while reducing operational costs.
Key Features:
- Rugged design that exceeds MIL-STD-810G specifications for shock and vibration.
- State-of-the-art LTE coverage spanning 11 frequency bands.
- Remote management with AirLink Management Service (ALMS).
- 5 VPN tunnels for secure data transmission.
- Integrated events engine for monitoring vehicle and workforce status.
Specifications:
- Supported Frequency Bands:
- LTE: B2, B4, B5, B13, B17, B25 (North America)
- WCDMA: B1, B2, B8
- Quad-band GSM/GPRS/EDGE
- Interfaces:
- 1 Ethernet, 1 RS-232 serial, 1 USB, 2 cellular and 1 GPS antenna connectors
- Operating Temperature: -30°C to +70°C
- Ingress Protection: IP64 rated
- Size: 142 x 98 x 41 mm
- Weight: 397g
Sierra Wireless 1102373 Wireless Router Overview
Rugged, Reliable Mobile Communications
The AirLink® GX450 is a rugged, secure mobile gateway designed to deliver mission-critical communications for in-vehicle applications. With LTE coverage on major global networks, the GX450 extends broadband connectivity to a wide range of devices and applications. It extends the enterprise network and management to the fleet, ensuring reliable, secure broadband data access for mobile users in the field.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Cellular Network Supported:
- CDMA 800
- CDMA 1900
- LTE 700
- LTE 850
- LTE 1900
Cellular Data Connectivity Technology:
- LTE
- HSPA+
- EVDO
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
USB:
Yes
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
VPN Supported:
Yes
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0088564898837, 0783555178355
UPC:
088564898837, 783555178355
EAN:
0088564898837, 0783555178355
UNSPSC:
43222609
Recommended Accessories
Category
- Antennas (1)
- Network Antennas (2)
- Sierra Wireless Wireless Antenna (5)
- Sierra Wireless Wireless Router (21)
- Telecom Accessories (21)
Recommended Accessories for Model: Sierra Wireless 1102373 Wireless Router
Top Antennas Purchased With Sierra Wireless 1102373
-
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Network Antennas Purchased With Sierra Wireless 1102373
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71 -
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Sierra Wireless Wireless Antenna Purchased With Sierra Wireless 1102373
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
-
Sierra Wireless 120-110-2205 AccessoryAntenna, Cellular Dual Band (CDMA 800/1900), Dipole (SMA)Ships from vendor — chat for lead time$18.57 -
Sierra Wireless 120-110-2210 AccessoryAntenna, WiFi 2.4 GHz Dipole with reverse polarity SMA connecterShips from vendor — chat for lead time$26.74
Top Sierra Wireless Wireless Router Purchased With Sierra Wireless 1102373
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86 -
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00 -
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Top Telecom Accessories Purchased With Sierra Wireless 1102373
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
-
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00
-
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Frequently Asked Questions
What connectivity options does the Sierra Wireless GX450 provide?
The GX450 is a mobile gateway that delivers LTE coverage on major global networks and includes multiple connectivity ports: Ethernet, Serial, USB, and GPS. It also supports HSPA+ for extended coverage, making it ideal for in-vehicle applications requiring mission-critical broadband access across diverse device types.
Is the Sierra Wireless 1102373 suitable for fleet management applications?
Yes, the GX450 is specifically designed for in-vehicle applications and extends enterprise network management to the fleet. It ensures reliable, secure broadband data access for mobile users in the field, making it well-suited for logistics and fleet operations requiring consistent connectivity.
What is the warranty coverage for the Sierra Wireless GX450?
The GX450 includes a 3-year standard warranty. An optional 2-year warranty extension is also available for customers seeking additional protection. The device also supports unrestricted software upgrades throughout its warranty period.
What are the physical dimensions and weight of the GX450?
The Sierra Wireless GX450 measures 272mm x 220mm x 60mm (10.71in x 8.66in x 2.36in) and weighs 2.4kg (5.3 lb). These compact dimensions make it suitable for mobile installations with space constraints.
How reliable is the Sierra Wireless GX450 in terms of mean time between failures?
The GX450 has an MTBF (Mean Time Between Failures) rating of 23.22 years based on Telcordia SR-332 Issue3 Method1 testing. This high reliability rating ensures dependable long-term operation for mission-critical fleet and in-vehicle deployments.
What is included in the box with the Sierra Wireless GX450?
The GX450 comes with a DC power cable, Quick Start Guide, and SMA wrench. Contact us today at barcodesinc.com to order this gateway and verify current bundle contents for your specific configuration.
