Sierra Wireless 1102363 Wireless Router

Sierra Wireless GX450 - Rugged, Mobile 4G Gateway with Ethernet/Serial/USB/GPS - LTE Bands 2,4,17 - HSPA+ - NA Generic - Includes DC Power Cable - 3 Year Warranty
  • Experience high-performance and reliable wireless connectivity to the Internet and other offices
  • Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
  • Access USB-compatible peripherals accross the wireless network via built-in USB port
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
  • With vehicle mounting feature, the router is suitable for a variety of emergency services, transportation and industrial deployments
Read More
$699.00
Ships within 3 to 5 business days

Full specifications (PDF)

Rugged, reliable 4G mobile communications

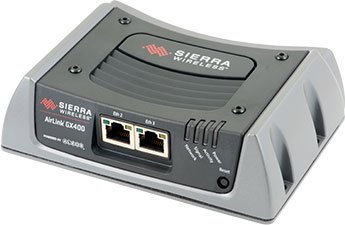

The Airlink GX450/GX400 is a rugged, secure mobile gateway designed to deliver mission-critical communications for in-vehicle applications. With LTE coverage on major global networks, the GX450 extends broadband connectivity to a wide range of devices and applications. It extends the enterprise network and management to the fleet, ensuring reliable, secure broadband data access for mobile users in the field.
Sierra Wireless 1102363 Overview

Rugged, Reliable Mobile Communications

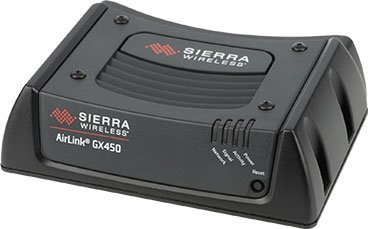

The AirLink® GX450 is a rugged, secure mobile gateway designed to deliver mission-critical communications for in-vehicle applications. With LTE coverage on major global networks, the GX450 extends broadband connectivity to a wide range of devices and applications. It extends the enterprise network and management to the fleet, ensuring reliable, secure broadband data access for mobile users in the field.

VEHICLE AREA NETWORKING: CONSOLIDATE CONNECTIONS

The GX450 is available in four configurations to provide vehicle-area connectivity tailored for each application environment. The base model provides connectivity for wired Ethernet, Serial and USB devices in the vehicle; an Ethernet option provides additional Ethernet ports. With the Wi-Fi option, the GX450 also includes an 802.11 b/g/n mobile access point for wireless devices and a Wi-Fi client for depot/station communications. An I/O option provides 4 digital input/outputs and 4 analog inputs to monitor external system events and sensor inputs. Consolidating all devices according to your requirements at the vehicle reduces the number of modems, antennas and subscriptions otherwise needed.

RUGGED DESIGN FOR DEMANDING VEHICLE APPLICATIONS

The GX450 is designed from the ground up to withstand the harsh environmental conditions of vehicle use. The die cast aluminum housing is sealed to meet IP64 levels of resistance to dust and water ingress. The product is tested to meet and exceed the MIL-STD-810G specification for shock, vibration, temperature and humidity. Immunity to harsh electrical transients is covered to meet international vehicle use standards.

SECURE MOBILE COMMUNICATIONS

The GX450 is loaded with features to secure your critical data. With up to 5 concurrent VPN sessions, you can ensure secure communications to multiple back-end systems. Remote authentication management allows you to use enterprise grade systems to manage access to devices in the field. Finally, port filtering and trusted IP protect the devices connected to your GX450 from unwanted access.

REPORT AND ALERT: DON'T JUST COMMUNICATE

As a fleet manager, you need more than just communications. You need to monitor the safety of your mobile workforce and the state of your vehicles. For example, you need to know if a worker has set off a man-down alert or if a police car has engaged the lights and siren. For this, you need the AirLink integrated events engine. This powerful tool allows you to develop custom event triggers and create tailored reports that communicate what's happening in the vehicle to third party server platforms - all without any programming. Best of all, through the Sierra Wireless Solution Exchange, you have access to a catalogue of world class solution partners that have already integrated this functionality into their AVL and mobile workforce solutions.

MANAGEABILITY: MANAGE, MONITOR AND ADMINISTER YOUR FLEET REMOTELY

Managing a fleet of mobile gateways is a demanding task. You need to maintain multiple device configurations, update device software, and remotely diagnose reported issues. AirLink Management Service (powered by AirVantage®) is the industry's leading device management solution. This highly advanced application supports over-the-air device registration, configuration and software updates. Dashboards display up-to-date views of the entire fleet, and custom reports can be set-up to monitor critical events and prevent downtime.

ABI Research has ranked ALMS as "Best in Class" among competing device management services.

Protect Your Product
Sierra Wireless Service Contracts (9010189)
AirLink Support - Classic - 5 Year
Ships within 3 to 5 business days
$270.00
+ Add to Quote
Sierra Wireless Service Contracts (9010188)
AirLink Support - Classic - 3 Year
Ships within 3 to 5 business days
$162.00
+ Add to Quote
Sierra Wireless Service Contracts (9010187)
AirLink Support - Classic - 1 Year
Ships within 3 to 5 business days
$67.00
+ Add to Quote
Sierra Wireless Service Contracts (9010183)
AirLink Support - Preferred - 5 Year
Ships within 3 to 5 business days
$400.00
+ Add to Quote
Sierra Wireless Service Contracts (9010182)
AirLink Support - Preferred - 3 Year
Ships within 3 to 5 business days
$240.00
+ Add to Quote

Full specifications (PDF)

Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • CDMA 800
  • CDMA 1900
  • LTE 700
  • LTE 850
  • LTE 1900
Cellular Data Connectivity Technology:
  • LTE
  • EVDO
  • HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
USB:
Yes
PoE (RJ-45) Port:
No
Network & Communication
Ethernet Technology:
Fast Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Vehicle Mount
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0705860672908, 0729198707989, 0783555153536, 0783555153581
UPC: 705860672908, 729198707989, 783555153536, 783555153581
EAN: 0705860672908, 0729198707989, 0783555153536, 0783555153581
UNSPSC: 43222609
