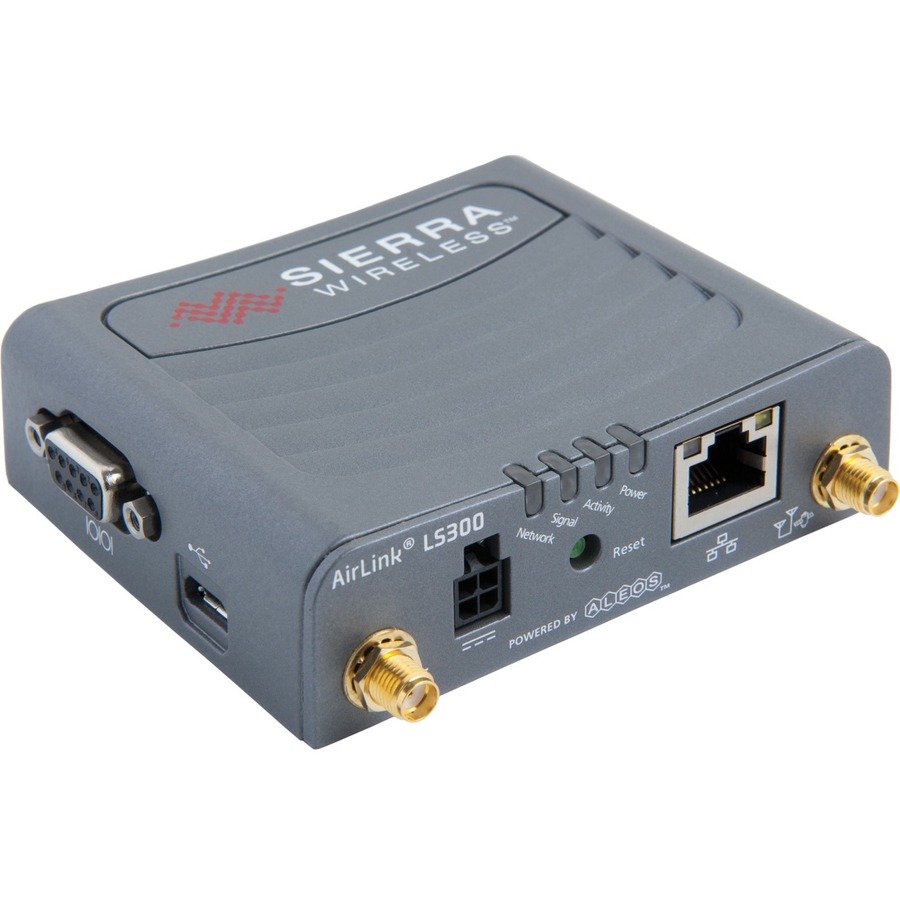

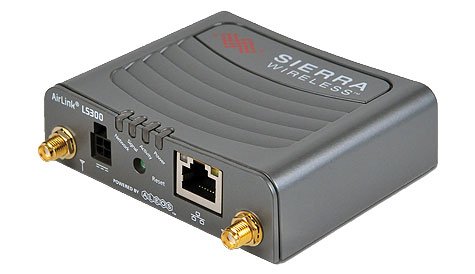

Sierra Wireless AirLink LS300 Wireless Router Model Overview
The Sierra Wireless AirLink LS300 Industrial Gateway is your go-to solution for reliable connectivity in harsh environments. Its rugged military-spec design ensures durability while operating in extreme temperatures, humidity, and vibrations. This compact 3G gateway offers an easy installation process with Ethernet, USB, and serial interfaces, making remote monitoring and control of industrial applications seamless. With built-in ALEOS intelligence, users can configure custom settings without requiring extensive programming expertise, allowing for rapid deployment and flexibility in various industrial settings.
Key Features
Durable military-spec design suitable for extreme conditions
Quick deployment with ALEOS embedded intelligence
Integrated development environment for custom application programming
Remote monitoring and control capabilities for diverse industrial applications
3-year warranty for peace of mind
Specifications
Dimensions: 3.0 in x 3.5 in x 1.0 in (76 mm x 90 mm x 25 mm)
Weight: 6.7 oz (190G)
Operating Temperature: -30°C to +70°C (-22°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Power Consumption: Idle 224mA (HSPA+), Idle 220mA (CDMA)
Network Support: TCP/IP, UDP/IP, DNS
VPN Options: IPsec, SSL, and GRE VPN Client
Sierra Wireless 1101490 Wireless Router Overview
The AirLink® LS300 industrial gateway has a small footprint for easy installation and a rugged, military spec design (MIL-STD 810) that enables it to withstand extreme temperature changes, humidity, shock, and vibration. Certified for hazardous environments (Class I, Div 2), the LS300 is ideal for industrial deployments.

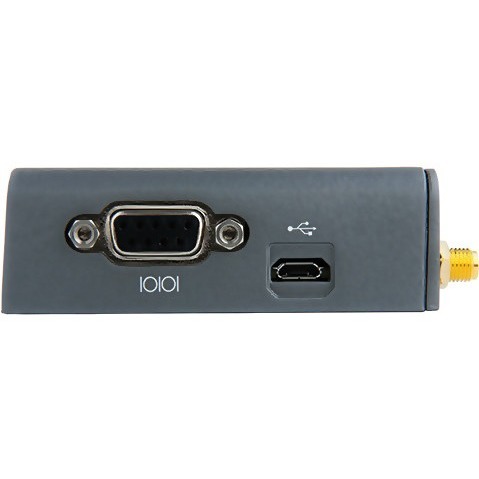

The LS300 comes standard with Ethernet, USB and serial interfaces, as well as digital I/O and GPS, enabling you to:
ŸŸRemotely monitor and control your infrastructure and surveillance equipment on pipelines, meters, pumps and valves in any energy, utility or industrial application.
ŸInstantly connect your equipment at remote locations or temporary sites.
ŸŸTrack the location of heavy equipment and assets in the field, while providing reliable internet connectivity to remote workers.
QUICKLY CONFIGURE AND DEPLOY
The comprehensive set of configurable options makes it quick and easy to deploy in the field. With ALEOS™ embedded intelligence, the LS300 can be deployed in most industrial applications out-of-the-box.
In addition to configuring connection settings, ALEOS enables users to setup custom security, networking, and routing parameters, GPS location tracking, and events reporting without any programming. With a proven 20-year track record of over a million deployed devices, ALEOS has been developed to ease integration and configuration for a wide range of deployment scenarios.
ADD CUSTOM LOGIC WITHOUT ANY EMBEDDED EXPERTISE
ALEOS Application Framework and integrated development environment make it easy to process data inside the LS300. Collect and analyze information from connected equipment and optimize data transfers using a simple, Lua-based scripting language. Now you can program an AirLink gateway without deep embedded expertise.
What are the key connectivity options on the Sierra Wireless 1101490?
The AirLink LS300 offers multiple connectivity interfaces including Ethernet, Serial, USB, and GPS capabilities. It supports 3G EVDO connectivity on 800/1900 MHz frequencies through Sprint, making it suitable for industrial deployments requiring diverse connection options.
Is the Sierra Wireless 1101490 suitable for harsh industrial environments?
Yes, the AirLink LS300 features a rugged, military-spec design (MIL-STD 810) that enables it to withstand extreme temperature changes, humidity, shock, and vibration. It is also certified for hazardous environments (Class I, Div 2), making it ideal for demanding industrial applications.
What is the warranty coverage for the Sierra Wireless 1101490?
We offer a 3-year standard warranty with your purchase of the AirLink LS300. An optional 2-year warranty extension is also available for extended protection, and unrestricted device software upgrades are included throughout the warranty period.
What are the physical dimensions and weight of the LS300?
The AirLink LS300 has a compact footprint measuring 272mm x 220mm x 60mm (10.71in x 8.66in x 2.36in) and weighs 2.4kg (5.3 lb), allowing for easy installation in space-constrained industrial deployments.
What reliability metrics does the Sierra Wireless 1101490 provide?
The AirLink LS300 delivers an MTBF (Mean Time Between Failures) of 23.22 years based on Telcordia SR-332 Issue3 Method1 standards, demonstrating exceptional reliability for mission-critical industrial applications.
What is included in the box with the Sierra Wireless 1101490?
Your purchase includes a DC power cable, quick start guide, and SMA wrench to facilitate rapid deployment. Contact us today at barcodesinc.com to place your order and confirm current bundle contents.
Full specifications (PDF)
