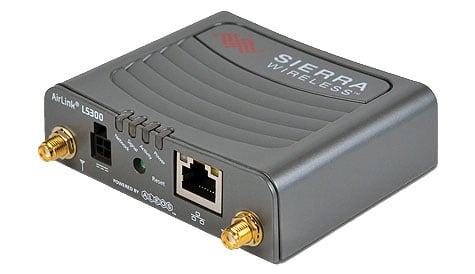

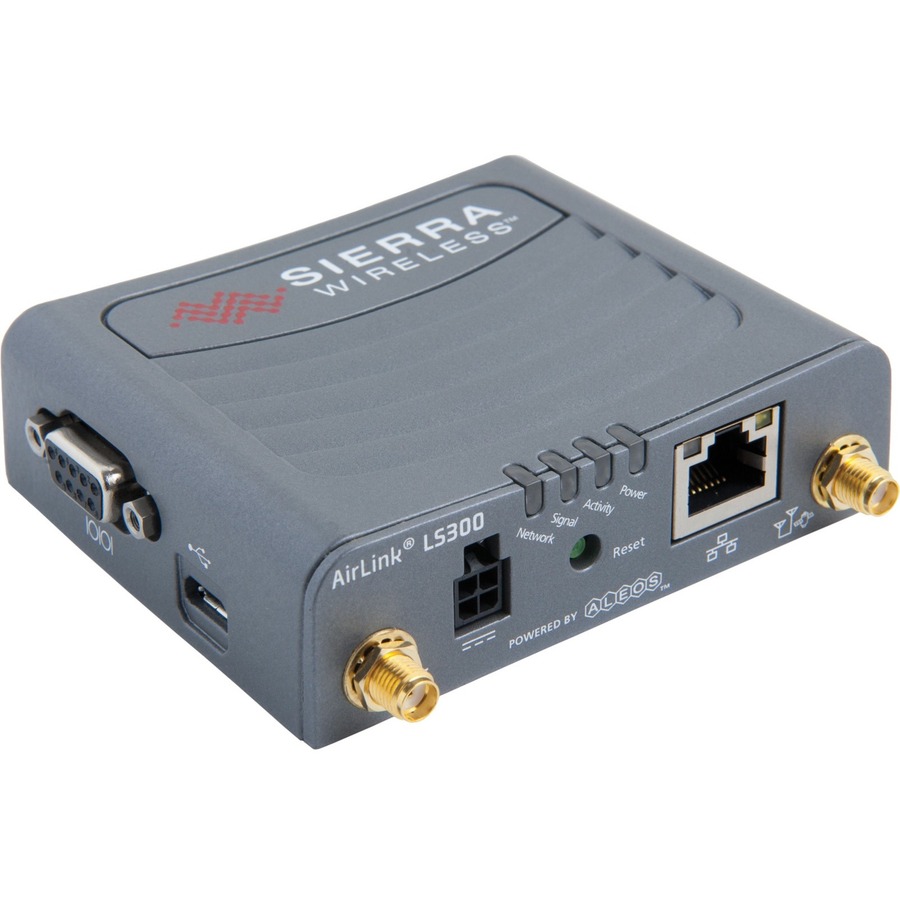

Sierra Wireless AirLink LS300 Wireless Router Model Overview
The Sierra Wireless AirLink LS300 Industrial Gateway is your go-to solution for reliable connectivity in harsh environments. Its rugged military-spec design ensures durability while operating in extreme temperatures, humidity, and vibrations. This compact 3G gateway offers an easy installation process with Ethernet, USB, and serial interfaces, making remote monitoring and control of industrial applications seamless. With built-in ALEOS intelligence, users can configure custom settings without requiring extensive programming expertise, allowing for rapid deployment and flexibility in various industrial settings.
Key Features
Durable military-spec design suitable for extreme conditions
Quick deployment with ALEOS embedded intelligence
Integrated development environment for custom application programming
Remote monitoring and control capabilities for diverse industrial applications
3-year warranty for peace of mind
Specifications
Dimensions: 3.0 in x 3.5 in x 1.0 in (76 mm x 90 mm x 25 mm)
Weight: 6.7 oz (190G)
Operating Temperature: -30°C to +70°C (-22°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Power Consumption: Idle 224mA (HSPA+), Idle 220mA (CDMA)
Network Support: TCP/IP, UDP/IP, DNS
VPN Options: IPsec, SSL, and GRE VPN Client
Sierra Wireless 1101489 Wireless Router Overview
The AirLink® LS300 industrial gateway has a small footprint for easy installation and a rugged, military spec design (MIL-STD 810) that enables it to withstand extreme temperature changes, humidity, shock, and vibration. Certified for hazardous environments (Class I, Div 2), the LS300 is ideal for industrial deployments.

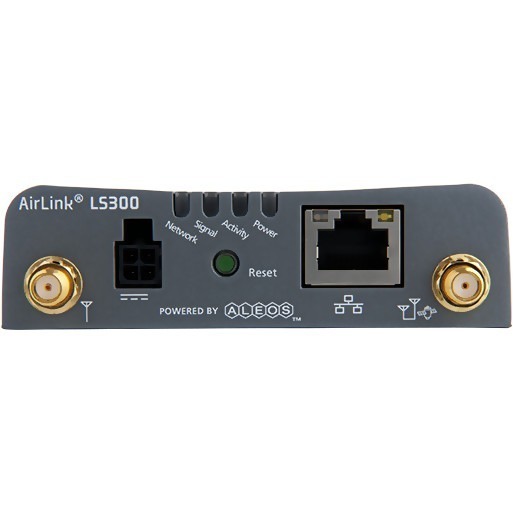

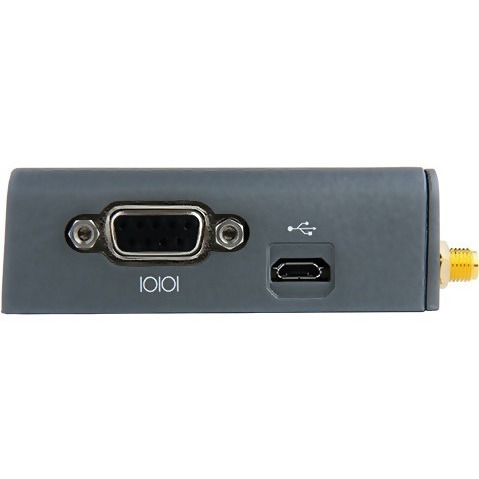

The LS300 comes standard with Ethernet, USB and serial interfaces, as well as digital I/O and GPS, enabling you to:
ŸŸRemotely monitor and control your infrastructure and surveillance equipment on pipelines, meters, pumps and valves in any energy, utility or industrial application.
ŸInstantly connect your equipment at remote locations or temporary sites.
ŸŸTrack the location of heavy equipment and assets in the field, while providing reliable internet connectivity to remote workers.
QUICKLY CONFIGURE AND DEPLOY
The comprehensive set of configurable options makes it quick and easy to deploy in the field. With ALEOS™ embedded intelligence, the LS300 can be deployed in most industrial applications out-of-the-box.
In addition to configuring connection settings, ALEOS enables users to setup custom security, networking, and routing parameters, GPS location tracking, and events reporting without any programming. With a proven 20-year track record of over a million deployed devices, ALEOS has been developed to ease integration and configuration for a wide range of deployment scenarios.
ADD CUSTOM LOGIC WITHOUT ANY EMBEDDED EXPERTISE
ALEOS Application Framework and integrated development environment make it easy to process data inside the LS300. Collect and analyze information from connected equipment and optimize data transfers using a simple, Lua-based scripting language. Now you can program an AirLink gateway without deep embedded expertise.
What are the key features of the Sierra Wireless 1101489 AirLink LS300 industrial gateway?
The AirLink LS300 is a compact industrial 3G gateway with a small footprint designed for easy installation in demanding environments. It features Ethernet, Serial, USB, and GPS connectivity, operates on EVDO (800/1900 MHz) with Verizon support, and comes with a DC power cable and 3-year warranty. The device combines multiple connectivity options with a rugged design suitable for industrial deployments.
Is the Sierra Wireless LS300 suitable for harsh industrial environments?
Yes, the LS300 features a rugged, military-spec design (MIL-STD 810) that enables it to withstand extreme temperature changes, humidity, shock, and vibration. Additionally, it is certified for hazardous environments (Class I, Div 2), making it ideal for industrial deployments where environmental durability is critical.
What is the reliability rating for the Sierra Wireless 1101489?
The Sierra Wireless LS300 has an MTBF (Mean Time Between Failures) of 23.22 years, calculated using the Telcordia SR-332 Issue 3 Method 1 standard. This reliability metric demonstrates the device's long-term durability for continuous industrial operations.
What connectivity options does the AirLink LS300 provide?
The LS300 offers multiple connectivity interfaces including Ethernet, Serial, USB, and GPS capabilities. It operates on 3G EVDO technology across 800/1900 MHz frequencies with Verizon network support, providing flexible integration options for industrial IoT and gateway applications.
What are the physical dimensions and weight of the Sierra Wireless LS300?
The AirLink LS300 measures 272mm x 220mm x 60mm (10.71in x 8.66in x 2.36in) and weighs 2.4kg (5.3 lb). Its compact footprint makes it suitable for space-constrained industrial installations while maintaining the rugged construction needed for harsh environments.
What warranty and support options are available for the Sierra Wireless 1101489?
The device includes a standard 3-year warranty with optional 2-year warranty extension available. Sierra Wireless also provides unrestricted device software upgrades throughout the warranty period, ensuring your gateway remains current with the latest features and security updates. Contact us today to discuss warranty options that fit your deployment needs.
Full specifications (PDF)
