Sierra Wireless 1101276 Wireless Router
Full specifications (PDF)

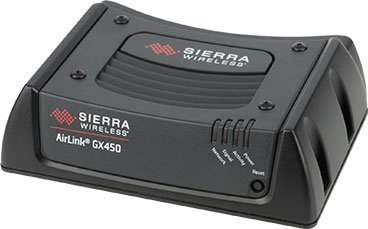

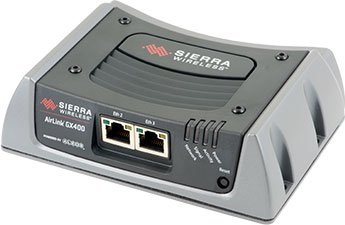

Sierra Wireless AirLink GX450/400 Wireless Router Model Overview
The Sierra Wireless AirLink GX450 Mobile Gateway is built for rugged environments, delivering reliable 4G mobile communications for in-vehicle applications. This secure gateway extends broadband connectivity to a variety of devices, ensuring seamless access to the enterprise network for mobile users in the field. With its MIL-STD-810G certification, it withstands harsh conditions, allowing you to efficiently monitor vehicle health, workforce safety, and critical communications, all while reducing operational costs.
Key Features:
- Rugged design that exceeds MIL-STD-810G specifications for shock and vibration.
- State-of-the-art LTE coverage spanning 11 frequency bands.
- Remote management with AirLink Management Service (ALMS).
- 5 VPN tunnels for secure data transmission.
- Integrated events engine for monitoring vehicle and workforce status.
Specifications:
- Supported Frequency Bands:
- LTE: B2, B4, B5, B13, B17, B25 (North America)
- WCDMA: B1, B2, B8
- Quad-band GSM/GPRS/EDGE
- Interfaces:
- 1 Ethernet, 1 RS-232 serial, 1 USB, 2 cellular and 1 GPS antenna connectors
- Operating Temperature: -30°C to +70°C
- Ingress Protection: IP64 rated
- Size: 142 x 98 x 41 mm
- Weight: 397g
Recommended Accessories
Category
- Antennas (1)
- Network Antennas (2)
- Sierra Wireless Wireless Antenna (5)
- Sierra Wireless Wireless Router (21)
- Telecom Accessories (21)
Recommended Accessories for Model: Sierra Wireless 1101276 Wireless Router
Top Antennas Purchased With Sierra Wireless 1101276
-
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Network Antennas Purchased With Sierra Wireless 1101276
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71 -
Sierra Wireless 6001197 Network AntennasAntennas, Sierra Wireless AirLink Antenna, 6-in-1 SharkFin, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 26 dB, Cellular Network, GPS, Wireless Data Network, IoT Gateway, Black, Screw Mount, Omni-directional, SMA, RP-SMA, FME ConnectorIn Stock$261.65
Top Sierra Wireless Wireless Antenna Purchased With Sierra Wireless 1101276
-
Sierra Wireless 1810075 AccessoryMulti-Band Dipole Antenna (698-960/1710-1990/2110-2170/2500-2700 MHz) - Right Angle - SMA MaleShips from vendor — chat for lead time$25.71
-
Sierra Wireless 120-110-2205 AccessoryAntenna, Cellular Dual Band (CDMA 800/1900), Dipole (SMA)Ships from vendor — chat for lead time$18.57 -
Sierra Wireless 120-110-2210 AccessoryAntenna, WiFi 2.4 GHz Dipole with reverse polarity SMA connecterShips from vendor — chat for lead time$26.74
Top Sierra Wireless Wireless Router Purchased With Sierra Wireless 1101276
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86 -
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00 -
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Top Telecom Accessories Purchased With Sierra Wireless 1101276
-
Sierra Wireless 6000525 AccessoryWiFi X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
-
Sierra Wireless 6000624 AccessoryWiFi X-Card Kit for GX450 (Sold Only to Authorized Installers Unless Coupled with Installation)Item on backorder — chat for lead time$100.00
-
Sierra Wireless 6000562 AccessoryI/O X-Card Kit for GX400 (Sold Only to Authorized Installers Unless Coupled with Installation)Ships from vendor — chat for lead time$92.86
Frequently Asked Questions
What wireless connectivity options does the Sierra Wireless GX450 support?
The GX450 is available in multiple configurations supporting either 3G HSPA+ or 3G EV-DO networks. The HSPA+ models operate on 800/850/1900/2100 MHz frequencies with peak download speeds of 14.4 Mbps and upload speeds of 5.76 Mbps, while EV-DO models support 800/1900 MHz with peak download speeds of 3.1 Mbps. All models include fallback to GSM/GPRS/EDGE or CDMA 1xRTT for extended coverage.
What host interfaces and connectivity ports are included with the GX450?
The GX450 includes a 10/100 Base-T RJ45 Ethernet port, RS-232 serial port, USB V2.0 Micro-B connector, and two SMA antenna connectors for primary and GPS/diversity functions. These multiple interfaces allow you to connect the gateway to various devices and applications across your fleet operations.
Does the GX450 include GPS capability for fleet tracking?
Yes, the GX450 features GPS technology with acquisition times of less than 3 seconds for hot start and under 45 seconds for cold start on HSPA+ models, with accuracy within 10 meters. This enables real-time location tracking and dispatch/AVL (Automatic Vehicle Location) applications for your mobile workforce.
What network management and remote monitoring capabilities does the GX450 offer?
The GX450 provides comprehensive management through AirLink Management Service with capabilities including remote configuration, fleet-wide firmware upgrades, over-the-air software updates, configurable monitoring and alerting, and remote provisioning. Management access is available via local web interface, AT Command Line Interface, SMS commands, and SNMP for centralized control of your gateway fleet.
What security features does the GX450 include for enterprise deployments?
The GX450 is designed as a secure mobile gateway with remote authentication options including LDAP, RADIUS, and TACACS+ support. It extends enterprise network and management to the fleet, ensuring reliable and secure broadband data access for mobile users in the field with centralized security management.
What power input requirements does the GX450 have for vehicle installation?
The GX450 is designed for in-vehicle applications with configurable I/O pins on the power connector supporting digital input voltages from 3.3 to 30 VDC and analog input voltage from 0 to 30 VDC. The product includes a DC power cable for easy installation in mobile environments. Contact us today for specific power supply recommendations for your vehicle fleet.
