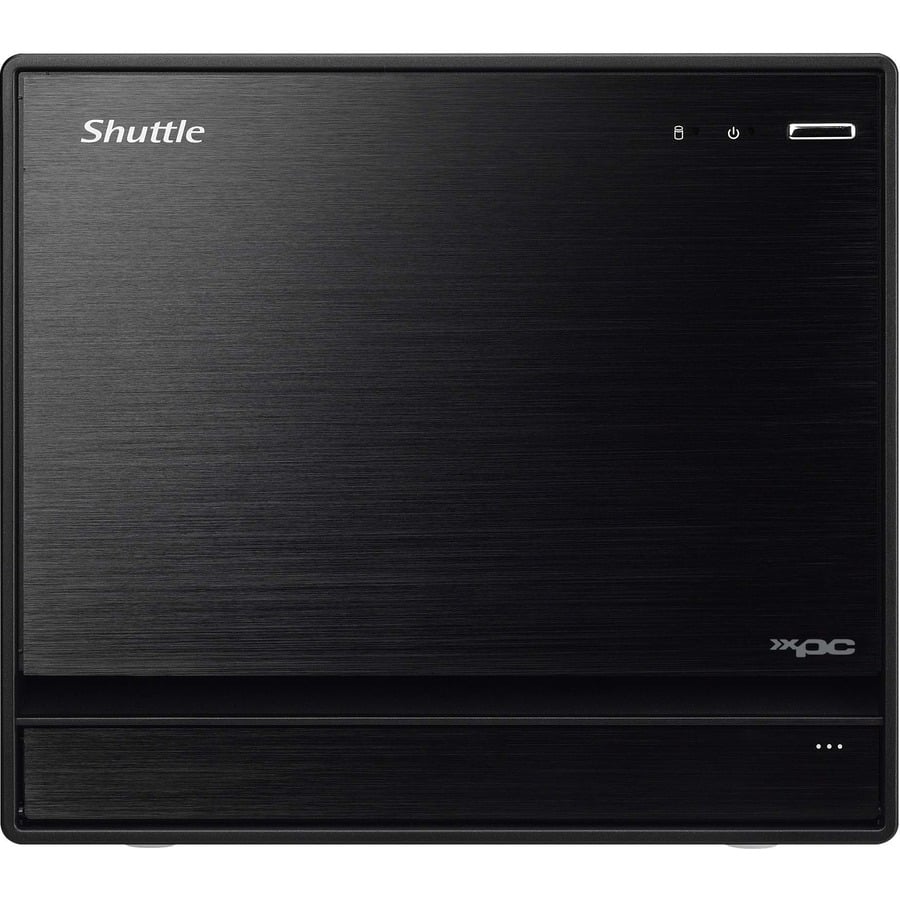

Shuttle SW580R8 Desktop PC

Shuttle XPC Cube - Desktop PCs, Shuttle XPC Cube, Barebone System, Socket LGA-1200, Intel W580 Chip, 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support, 4 Total Memory Slots, Serial ATA/600 Controller, Intel UHD Graphics Graphic(s), 4 3.5" Bay(s), 4 SATA Interface(s), Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron, Xeon), 2.5 Gigabit Ethernet, Gigabit Ethernet, Windows 10, Windows 11, Linux Supported Operating System, 3 USB 3.2 Gen 1 Port(s), 500 W

Compatible Core i9 processor lets you perform all your computational tasks at a swift pace
DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Featuring Gigabit Ethernet port for ultra-fast network speeds
With 13 USB ports, connect/disconnect devices while not having to shut down the system
With Serial ATA/600 interface get superb reliability and high-speed data transfer

Need a different version? See all Shuttle Parts Desktop PCs

$699.99

In Stock

Chat Now for Qty Discount

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

Shuttle Parts Desktop PC Model Overview

Parts and products from Shuttle.

Shuttle SW580R8 Desktop PC Overview

14-LITER CUBE FOR SERVER AND WORKSTATION APPLICATIONS

Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3.5" hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards. In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip. Such impressive per- formance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.

Detailed Specs

Processor

Processor Socket:

Socket LGA-1200

Processor Supported:

Core i9
Core i7
Core i5
Core i3
Pentium Gold
Celeron
Xeon

Chipset

Chipset Manufacturer:

Intel

Chipset Model:

W580

Memory

Maximum Memory Supported:

128 GB

Memory Technology:

DDR4 SDRAM

Memory Standard:

DDR4-3200/PC4-25600

Number of Total Memory Slots:

Storage

Supported Storage Drive Interfaces:

Serial ATA III

Controllers

Controller Type:

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

UHD Graphics

Graphics Memory Technology:

DDR4 SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Ethernet Technology:

2.5 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays:

Number of 3.5" Bays:

Number of Total Expansion Slots:

Number of PCI Express x4 Slots:

Number of PCI Express x16 Slots:

Interfaces/Ports

HDMI (Rear):

Yes

Total Number of USB Ports:

Number of USB 3.2 Gen 1 Ports:

Number of USB 3.2 Gen 2 Ports:

Number of Onboard USB 2.0 Ports:

USB Type-C (Front):

Yes

USB Type-C Detail:

USB 3.2 Gen Type-C port (5 Gbps)

Number of SATA Interfaces:

Operating System

Operating System Supported:

Windows 10
Windows 11
Linux

Power Description

Input Voltage:

120 V AC
230 V AC

Maximum Power Supply Wattage:

500 W

Frequency:

50 Hz
60 Hz

Physical Characteristics

Product Color:

Black Aluminum

Height:

7.5"

Width:

8.5"

Depth:

13.1"

Weight (Approximate):

7.72 lb

Miscellaneous

Application/Usage:

Business

Energy Star:

Yes

Item Numbers

GTIN: 0887993004174, 0887993005447

UPC: 887993004174, 887993005447

EAN: 0887993004174, 0887993005447

UNSPSC: 43211520
