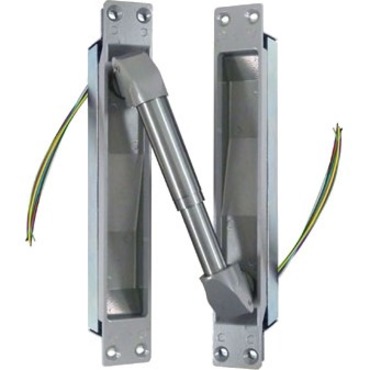

SDC PTM-10AL Access Control Equipment

SDC - Ten (10) Conductor Power Transfer Device
  • Power control
  • Mortise door and frame installation
  • Completely concealed when door closed
  • All metal design
  • Heavy cast housing & steel back box
  • Stainless steel tubular wire transfer
  • Tamper resistant
  • Weather resistant
  • Wood, steel and aluminum door and frame fasteners included
  • Pre-wired
Read More
$379.83
Add to Quote
SDC Parts Products Model Overview
Products and parts from SDC.
SDC PTM-10AL Access Control Equipment Overview
SDC's heavy duty electrified mortise power transfer devices provide concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door.

Completely concealed when the door is closed the PTM power transfer mortise device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.
Technical Information
Device Supported:
Door Lock
Physical Characteristics
Product Color:
Powder Coated Aluminum
Product Material:
  • Metal
  • Steel
Durability:
  • Tamper Resistant
  • Weather Resistant
Height:
10.5"
Width:
4"
Depth:
2"
Weight (Approximate):
1.80 lb
Miscellaneous
Package Contents:
  • Power Transfer Device
  • Wood Fasteners
  • Steel Fasteners
  • Aluminum Door Fasteners
  • Frame Fasteners
Additional Information:

Country of Origin: United States. Country of origin is subject to change.

Application/Usage:
Door
Certifications & Standards:
UL 10C
Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0712905262192
UPC: 712905262192
EAN: 0712905262192
