SDC PR-1000 Accessory

SDC Accessories - Power Regulator
  • Battery Equalization Technology - Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
  • Rotatable Multifunction LCD Panel - Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
  • Toolless Battery Panel Access - Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
  • GreenPower UPS™ Bypass Design - Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Read More
$75.00
In Stock
Add to Quote
Technical Information
Plug/Connector Type:
NEMA 5-15P

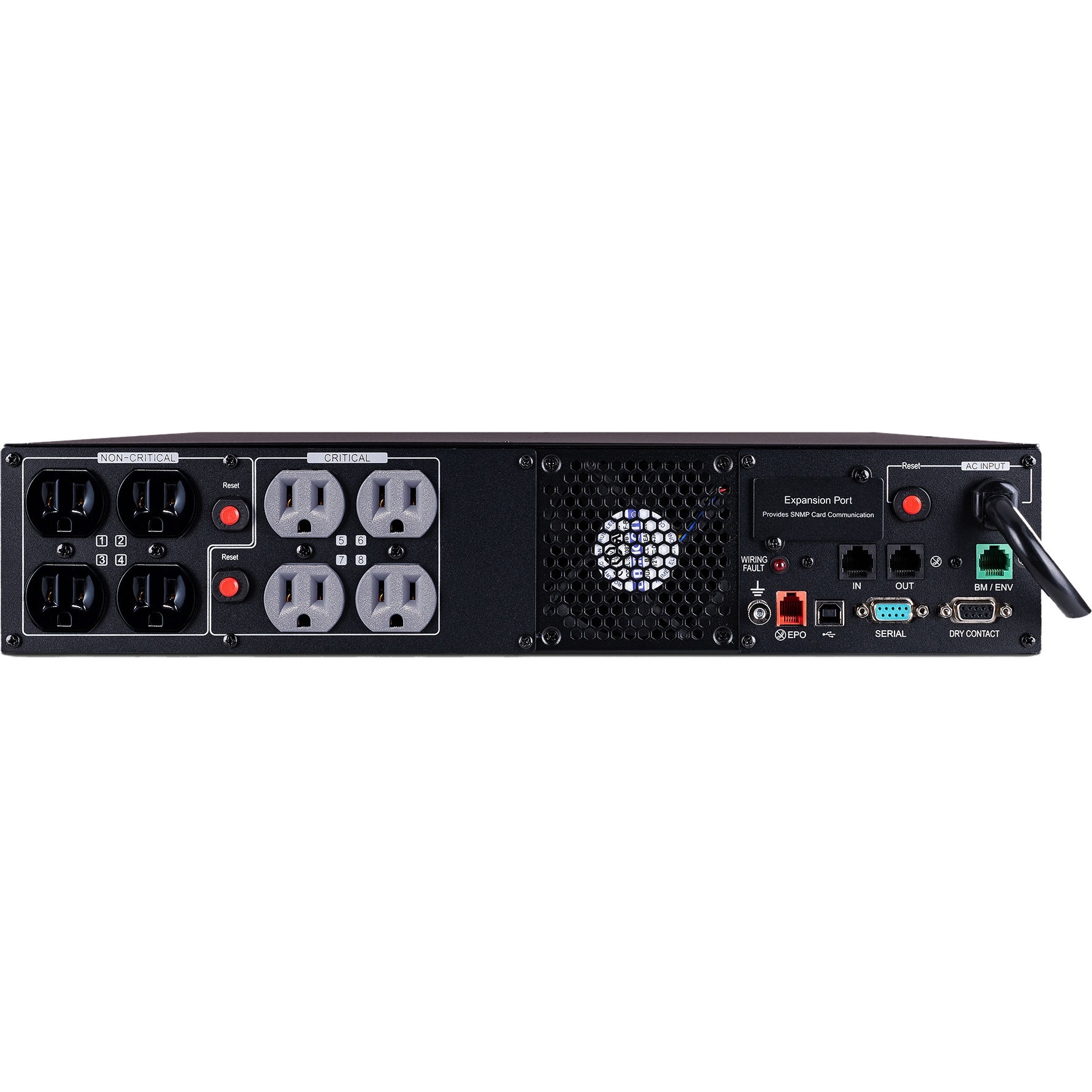

Receptacle Type:
NEMA 5-15R
Receptacle Detail:
8 x NEMA 5-15R
Transfer Time:
4 ms
Application/Usage:
  • Server
  • Telecommunication
  • VoIP
  • Network Device
  • Storage Device
Power Description
Load Capacity:
1000 VA
Input Voltage:
120 V AC
Input Voltage Range:
70 V AC - 155 V AC
Output Voltage:
  • 100 V AC
  • 110 V AC
  • 120 V AC
  • 125 V AC
Waveform Type:
Sine Wave
Interfaces/Ports
Network (RJ-45):
Yes
Battery Information
Backup/Run Time (Full Load):
7 Minute
Typical Battery Recharge Time:
3 Hour
Physical Characteristics
Product Color:
Black
Form Factor:
Rack/Tower
Rack Height:
2U
Height:
3.4"
Width:
17.1"
Depth:
16.2"
Weight (Approximate):
50.10 lb
Miscellaneous
Package Contents:

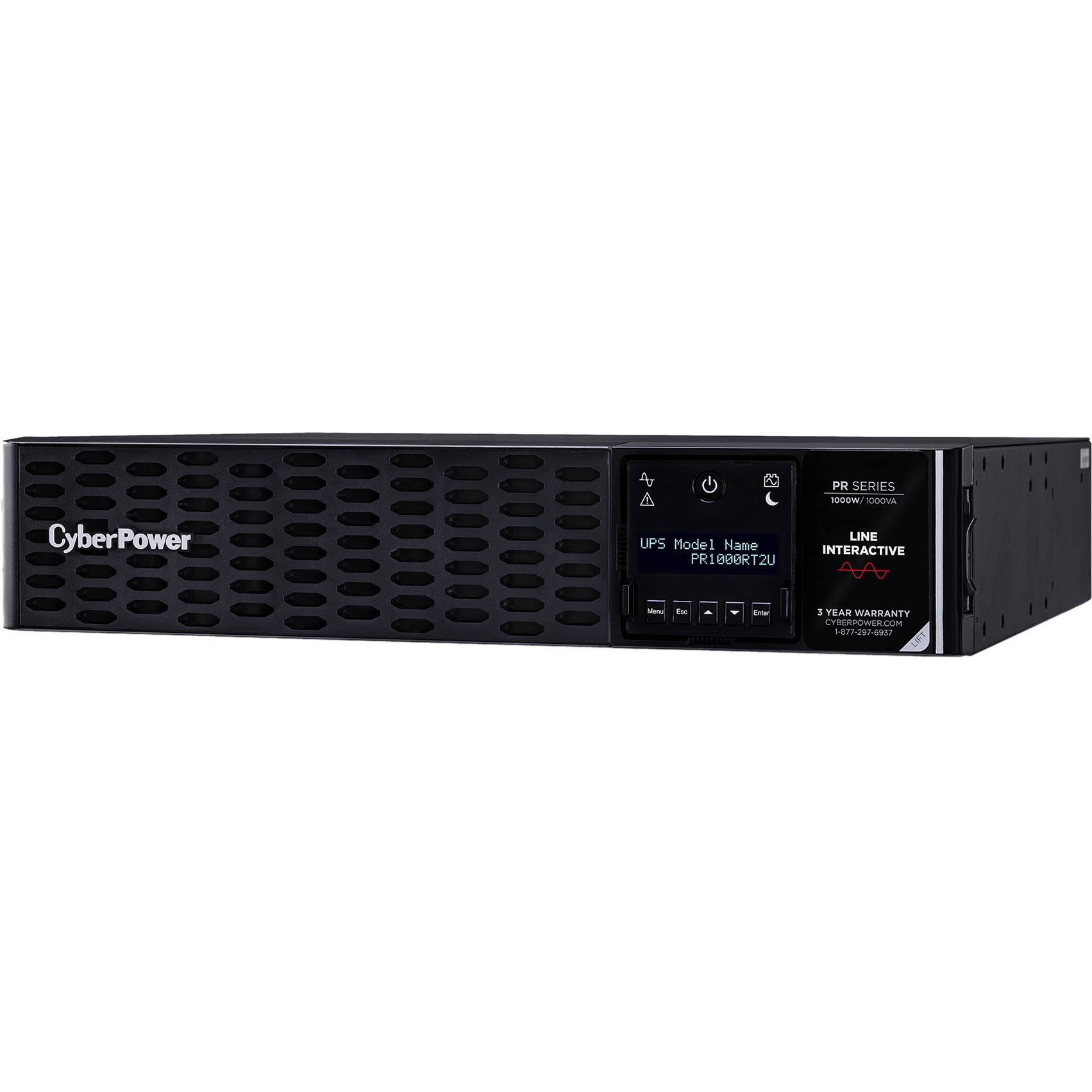

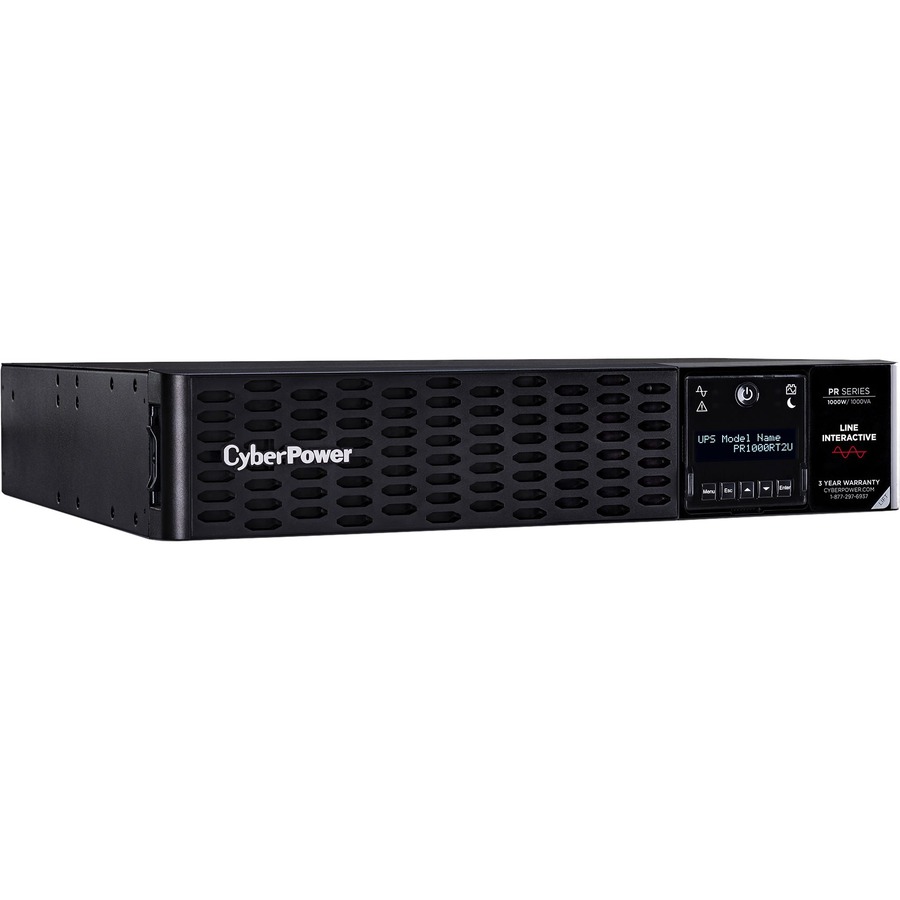

  • Smart App PR1000RT2U 1000VA Tower/Rack Convertible UPS
  • Faceplate
  • UPS User Manual
  • Rack Mounting Kit
  • Tower Mounting Kit
  • Emergency Power Off Cable (gray)
  • Serial Interface Cable
  • USB A+B Type Cable
Energy Star:
Yes
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0649532620562, 0818242722044
UPC: 649532620562, 818242722044
EAN: 0649532620562, 0818242722044
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The SDC PR-1000 Accessory is also known as SDC-PR1000
