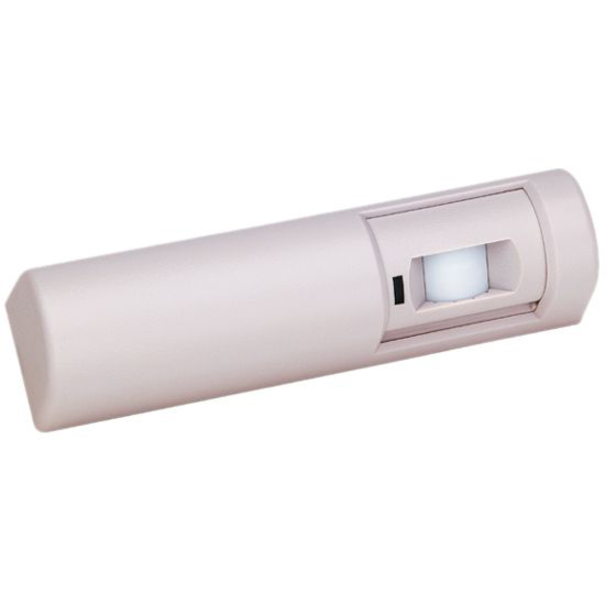

SDC MD-31DOW Motion Detector

SDC MD-31D-OW - Detector (with Time Delay) - Color: Off White

Need a different version? See all SDC MD-31D-OW Access Control Equipments

$220.32
In Stock
Add to Quote
Add to My Shopping List Add to Compare
SDC MD-31DOW Motion Detector
SDC MD-31DOW Motion Detector SDC MD-31DOW Motion Detector
SDC MD-31DOW Motion Detector
SDC MD-31DOW Motion Detector
Full specifications (PDF)
SDC MD-31D-OW Access Control Equipment Model Overview
Upon detecting a person approaching the door, these REX sensors unlock the door immediately for uninhibited egress.
Full specifications (PDF)
Technical Information
Wireless Technology:
Infrared
Passive Infrared Sensor (PIR):
Yes
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Off White
Height:
1.5"
Width:
6.3"
Depth:
1.5"
Miscellaneous
Additional Information:
  • PIR Request-to-Exit Sensor
  • Coverage may be 5 by 6 feet at 7 feet high to 10 by 12 feet at 15 feet high
  • Projects a wrap around U pattern down and away from the door to inhibit tampering
  • May be mounted to the frame header, wall or ceiling
Item Numbers
GTIN: 0712905261003
UPC: 712905261003
EAN: 0712905261003
UNSPSC: 46171608
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The SDC MD-31DOW Motion Detector is also known as SDC-MD31DOW
