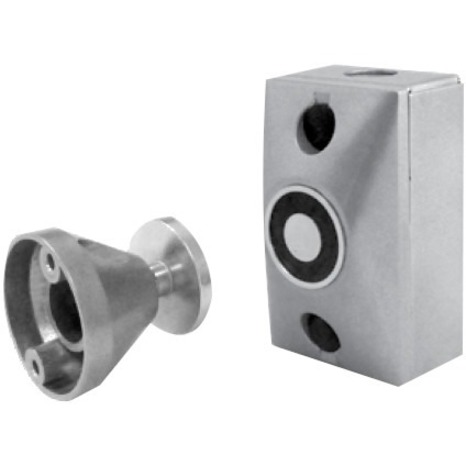

SDC EH301224A Security System Products

SDC - Surface Mount 12/24 VAC/DC Chro me Powder Coat
  • Door release and close upon power loss or fire life safety system activation
  • Low power consumption
  • Field selectable high holding force
  • Dual AC/DC voltage configurations
  • Screw terminal block input connections
  • Self-aligning catch plate
  • Adjustable magnet centerline
Read More
$152.09
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
SDC Parts Products Model Overview
Products and parts from SDC.
SDC EH301224A Security System Products Overview

SDC EH Series magnetic door holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.

Choice of 25, 30, 35 or 40lbs holding force determined by units specified voltage. Reduced power supply requirements and energy costs due to low power consumption (15mA to 40mA). Field selectable high holding force comes standard, reducing stock or need to special order high holding force. Screw terminal block input connections for simple and neat wiring. Innovative installation eliminates the need for secondary alignment adjustments. Ball pivot assembly enables full plate contact and holding force. Optional adjustable rod compensate for extreme misalignment up to four inches. Slotted mounting holes enable adjustment of magnet centerline.
Product Information
Holding Force:
30 lb
Finishing:
Chrome Plated
Application/Usage:
Fire Door
Mount Type:
Surface Mountable
Power Description
Input Voltage:
  • 12 V DC
  • 12 V AC
  • 24 V DC
  • 24 V AC
Physical Characteristics
Product Material:
Zinc Alloy
Miscellaneous
Package Contents:
  • EH301224A Electromagnetic Door Holder
  • Mounting Bracket
  • Hardware Package
Certifications & Standards:
  • UL 864 Control Units and Accessories for Fire Alarm Systems
  • ULC/ORD-C228 Door Closers and Holders
  • CSFM Listed

Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0712905260549
UPC: 712905260549
EAN: 0712905260549
UNSPSC: 31162804
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The SDC EH301224A Security System Products is also known as SDC-EH301224A
