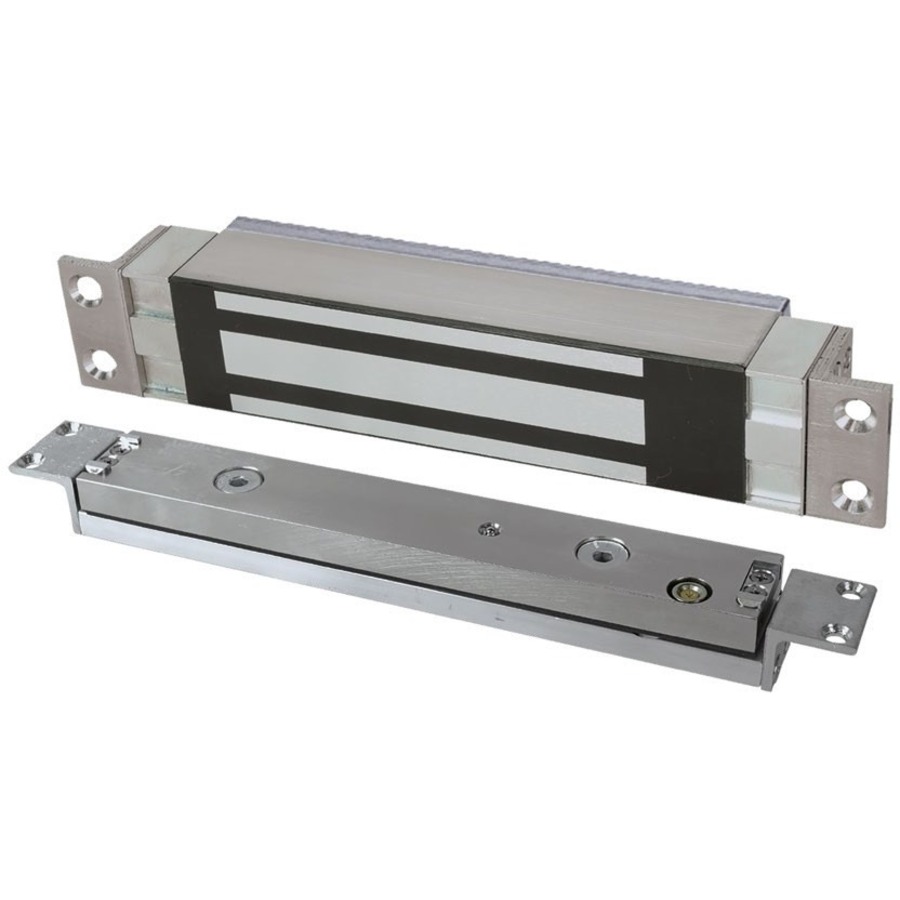

SDC 1562ITCM Access Control Equipment

Part Number: 1562ITCM
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Holding Force
2000 lb
Armature Plate Width
1.50"
Armature Plate Depth
0.87"
Features
Door Static/Alignment SensorLateral Alignment AdjustmentVertical Alignment AdjustmentFloating Assembly

Product Description:

  LOCK AND ARMATURE, ITCM 1-1/4 DEPTH W/EXTERNAL ELECTRNCS

SDC Parts Products Model Overview

Products and parts from SDC.
SDC 1562ITCM Access Control Equipment Overview
SDC Hi/Shear® magnetic lock utilizes several of the most innovative and unique design attributes. The Hi/Shear is the magnetic lock that gives those who want a better shear lock all the latest features.

The SDC Hi/Shear® is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear® electromagnetic lock design incorporates a "floating" armature assembly and special alloy steel locking "tabs" on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors.

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and metal frames and Herculite doors with top rails.

Hi/Shear® Magnetic Lock Features

Door Static and Alignment Sensor
The door static sensor ensures that the door is at rest and aligned, before the magnet is permitted to energize, eliminating potential for lock misalignment

Lateral Alignment Adjustment
Lateral adjustment of shear tabs to compensate for warped or misaligned doors, permitting accurate locking.

Vertical Alignment Adjustment
Vertical adjustment of the armature compensates for wide door gaps.

Floating" Assembly
A unique "floating" action makes for easier armature lift when the magnet is energized and provides the ability to overcome wide door gaps.

2000 or 2700 Lbs Holding Force
2000 or 2700lbs. of holding force without current inrush or high operating temperature normally associated with shear locks.
Technical Information
Holding Force:
2000 lb
Armature Plate Width:
1.50"
Armature Plate Depth:
0.87"
Features:
  • Door Static/Alignment Sensor
  • Lateral Alignment Adjustment
  • Vertical Alignment Adjustment
  • Floating Assembly
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC
Input Current:
  • 350 mA
  • 650 mA
Physical Characteristics
Product Material:
Aluminum
Form Factor:
Mortise Mount
Lock Width:
1.25"
Lock Depth:
1.50"
Lock Length:
8"
Miscellaneous
Application/Usage:
  • Metal Door
  • Wooden Door
Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
