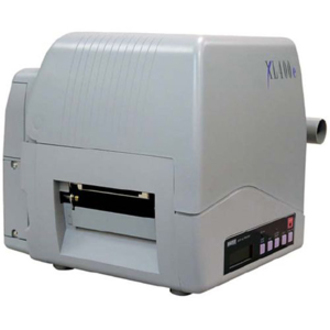

SATO XL400e – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: WXL402011
Model: XL400e

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Sato XL400e Thermal Label Printer - Monochrome - 8 in/s Mono - 203 dpi - Serial, Parallel

SATO XL400e Barcode Label Printer Model Overview

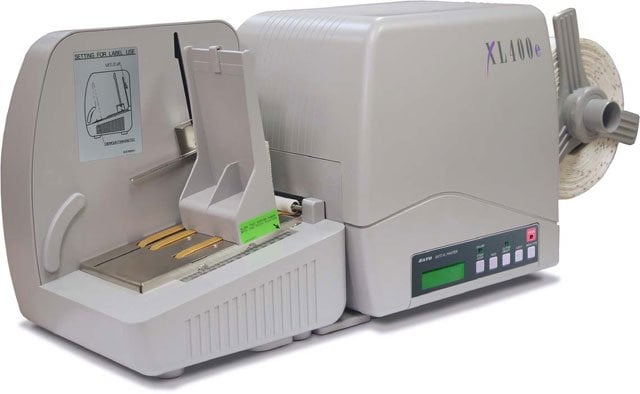

The SATO XL400e delivers 203 dpi resolution and a 8" per second print speed as it prints, cuts and stacks labels, tags and tickets, making it ideal for textile, retail and other hang-tag applications. The XL400e features a movable sensor that enables the printer to accept a wide variety of media. An optional stacker attachment makes quick work of large ticket-printing jobs. With a variety of interface options (including a standard serial connection) the XL400e fits into virtually any environment.
SATO WXL402011 Barcode Label Printer Overview

The XL400e, which prints, cuts and stacks, is highly valued in the textile tag and ticketing industries. The movable sensor allows for an endless choice of media. The intelligent printhead regulates the printing temperature, thereby optimizing the print quality. The XL400e is easy to connect and Windows compatible. The XL400e printers include a heavy-duty print mechanism and cutter assembly to ensure SATO's tradition of high quality and durability. Its industrial chassis and 32-Bit RISC high performance processor tackles even the most demanding print jobs with ease.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
3.94"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • JAN
  • Code 39
  • Code 93
  • Code 128
  • UCC/EAN 128
  • Interleaved 2 of 5
  • Matrix 25
  • NW-7
  • MSI
  • Bookland
  • POSTNET
  • QR Code
  • PDF-417
  • Maxi Code
  • Data Matrix
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Flash Memory:
2.95 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Fanfold
  • Die-cut Label
Media Size:
  • Custom Size - 4.13" x 9.45" - Roll Paper
  • 4.10" x Roll Paper
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
9.84"
Maximum Label Width:
4.13"
Maximum Label Length:
9.45"
Label Core Size:
4"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.5"
Width:
19.6"
Depth:
11.8"
Miscellaneous
Additional Information:

Sensing:

  • Reflective sensor for use with pre-printed marks
  • Adjustable See-through sensor for die-cut media; center-hole , side-hole and side-notch tag

Self Diagnosis Tools:

  • Test Print
  • Head Check
  • Paper End Detection
  • Head Open Detection
  • Open Cutter-Cover Detection
  • Memory Card Error Detection
  • Ribbon-End / Near-End Detection
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
