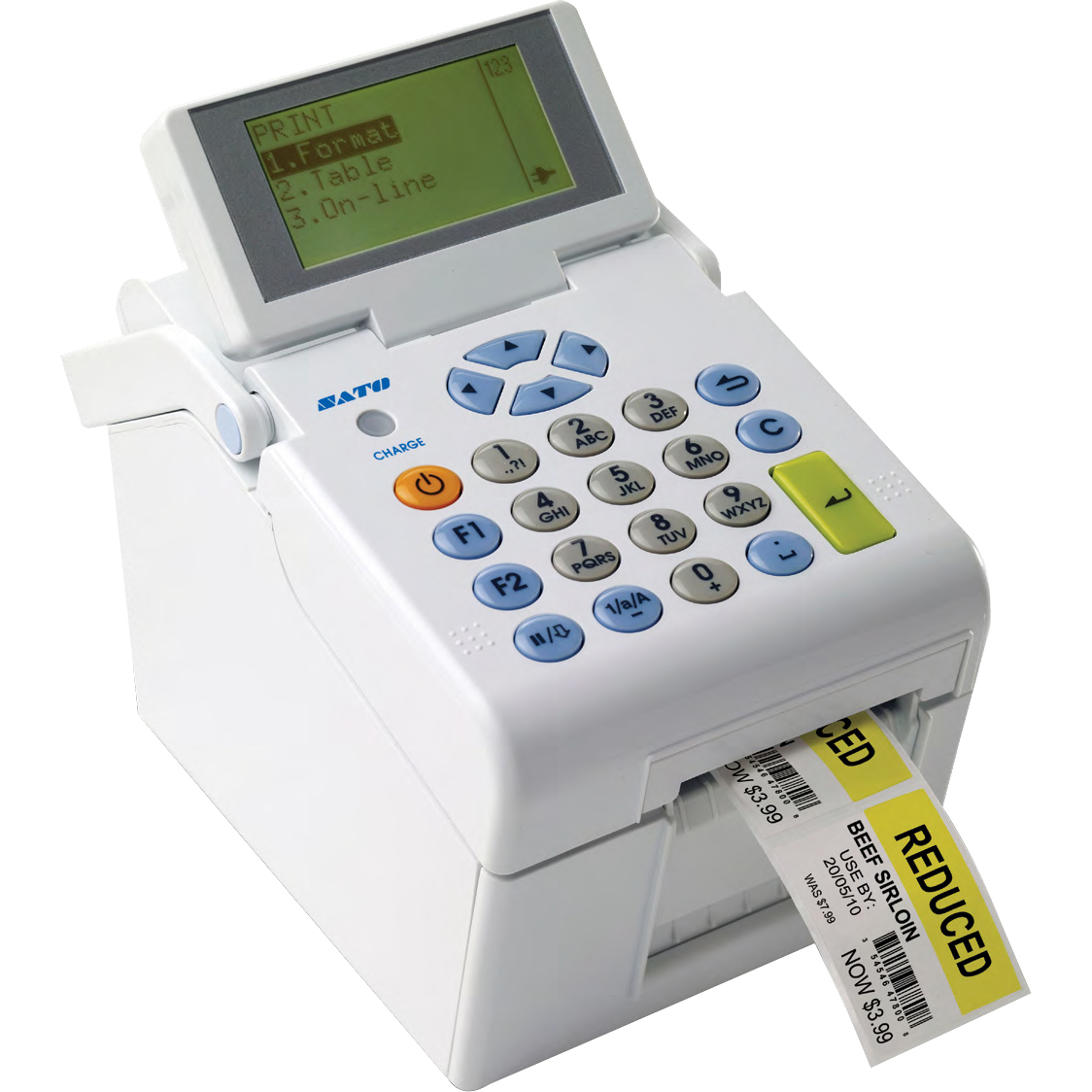

SATO TH208 – Barcode Label Printer – 203 dpi

Part Number: WWTH20021
Model: TH208
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop, Mobile
Interface Options
USB
Print Resolution
203 dpi
Max Print Width
2.5 inch

Product Description:

  Sato TH208 Direct Thermal Printer - Portable - Label Print - USB - Real Time Clock - 2.20" Print Width - 4 in/s Mono - 203 dpi - Label, Receipt, Ticket, Gap, Roll Fed, Die-cut Label, Continuous Label, Direct Thermal Label, Synthetic Media, Tag Stock, Black Mark - 2.30" Label Width
Explore all SATO TH208 Barcode Label Printers
Add to Quote
SATO WWTH20021 Barcode Label Printer
SATO WWTH20021 Barcode Label Printer
SATO WWTH20021 Barcode Label Printer
SATO WWTH20021 Barcode Label Printer SATO WWTH20021 Barcode Label Printer SATO WWTH20021 Barcode Label Printer
Full specifications (PDF)

SATO TH208 Barcode Label Printer Model Overview

The TH208 Direct Thermal Printer combines efficiency with versatility, making it an excellent choice for your labeling needs. With a resolution of 203dpi and print speeds ranging from 50 to 100mm/sec, this printer delivers high-quality prints quickly. It supports various label types, including die cut and butt-cut labels, accommodating sizes from 25 to 60mm wide. Whether you're printing barcodes or high-contrast graphics, the TH208 ensures sharp images and reliable performance in any environment.
Key features:
  • Printing Resolution: 203dpi (8-dot/mm) for clear text and images.
  • Speed: Adjustable printing speed of 50 to 100mm/sec for efficient operations.
  • Label Compatibility: Supports continuous, die-cut, and butt-cut labels of various sizes.
  • Multiple Modes: Offers standard modes like Continuous, Tear-off, and Dispenser modes.
  • Integrated Diagnostics: Features self-diagnostic functions for troubleshooting.

Specifications:
  • Dimensions: 132(W) x 194(D) x 147(H) mm (5.1"W x 7.6"D x 5.7"H)
  • Weight: Approximately 1.7kg (3.7lbs)
  • Power Supply: AC adapter - Input voltage: AC100V to AC240V
  • Battery: Lithium ion, 14.8V, 1700mAh capacity
  • Operating Environment: 0 to 40°C (32 to 104°F), 30 to 80% RH
  • Barcode Support: UPC-A/E, CODE39, CODE128, QR Code, and more.
SATO WWTH20021 Barcode Label Printer Overview
TH208 - SATO's new specialty series of printers
Portable, Handy, Smart. The TH2 direct thermal 2" standalone printer is truly revolutionary. Anti-microbial casing makes the TH2 ideal for clean environments where hygiene control and contamination prevention are critical. Designed for portability and functionality, the battery-operated TH2 allows users to print text, graphics, linear and 2D barcodes in high resolution. With its built-in keypad, there's no need for a PC. Print lined or linerless labels on-the-go at the push of a button. AEP Works™ software allows users to create custom label designs and download them directly to the printer, without modifying printer firmware.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • UPC-A Composite
  • UPC-E
  • JAN-8
  • EAN-8
  • JAN-13
  • EAN-13
  • Code 39
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • GS1-128
  • UCC/EAN 128
  • Codabar
  • NW-7
  • QR Code
  • Data Matrix
  • Micro QR
Real Time Clock:
Yes
Application/Usage:
Mobile
Features:
  • Multilingual Capable
  • Antimicrobial Casing
Memory
Standard Memory:
8 MB
Memory Technology:
SRAM
Flash Memory:
12 MB
Interfaces/Ports
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Receipt
  • Ticket
  • Gap
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
Media Sensor:
Transmissive Media Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
2.90"
Maximum Label Width:
2.30"
Label Core Size:
1"
Power Description
Power Source:
  • Battery
  • Power Adapter
Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Consumption:
42.50 W
Operating Power Consumption:
6.20 W
Physical Characteristics
Form Factor:
Portable
Height:
5.8"
Width:
5.2"
Depth:
7.6"
Weight (Approximate):
8.33 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • USA / Canada: FCC15B Class B
  • Europe: CE (EN55022, EN55024)
  • Singapore: IDA.
  • China: GB9254-1998 GB17625.1 (2003)
  • Korea: KN22
  • KN24
Item Numbers
UNSPSC: 45101512
