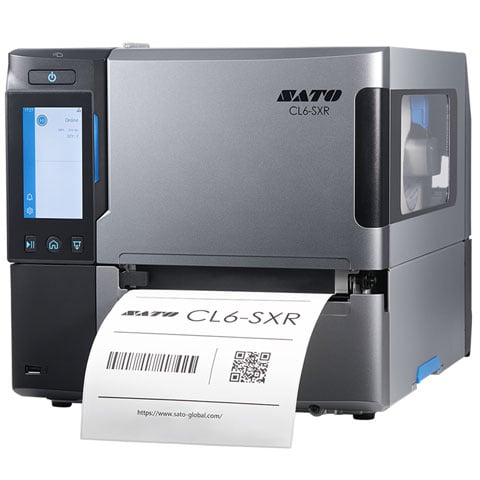

SATO CL6-SXR – Barcode Label Printer

The SATO CL6-SXR is a high-performance 6-inch industrial label printer designed for demanding print environments where speed, accuracy, and dependable operation are essential. With print speeds up to 14 ips and resolutions of 203, 305, or 609 dpi depending on the configuration, the CL6-SXR delivers high-quality labels, nameplates, and other media with precise output. Its wide 6.6-inch maximum print width supports larger-format applications, while direct thermal and thermal transfer printing provide flexibility across a range of labeling requirements.

Built with intuitive operation in mind, the CL6-SXR features a 4.3-inch color LCD touchscreen and speaker, along with predictive maintenance and printer status notifications. Its durable industrial design supports continuous operation, and optional RFID, wireless LAN, Bluetooth, cutter, dispenser, and rewinder configurations help adapt the printer to diverse workflows.

Key Features

• High-Speed Printing: Print speeds up to 14 ips for efficient, high-volume label production.
• Multiple Resolutions: Available in 203, and 609 dpi configurations to meet different print quality requirements.
• 6-Inch Printing: Supports a maximum print width of 6.60 inches for larger labels and industrial applications.
• Thermal Printing: Supports both direct thermal and thermal transfer printing methods.
• Intuitive Touchscreen: 4.3-inch color LCD touchscreen and speaker provide convenient printer operation and status feedback.
• Predictive Maintenance: Smart monitoring helps identify potential issues and supports preventive maintenance.
• Industrial Connectivity: Standard Ethernet, USB 2.0 Type A and B, RS-232C, EXT, and NFC interfaces.
• Optional Wireless Connectivity: Dual-band 802.11a/b/g/n/ac/ax wireless LAN and Bluetooth 5.2 are available.
• RFID Ready: Optional HF and UHF RFID kits expand the printer's identification and tracking capabilities.

Specifications

• Printing Method: Direct thermal, thermal transfer
• Maximum Print Speed: Up to 14 ips
• Print Resolution: 203 dpi, 305 dpi, or 609 dpi
• Maximum Print Width: 6.60 in. (167.5 mm)
• Maximum Print Length: Up to 98.42 in. (2,500 mm)
• Display: 4.3-inch color LCD touchscreen
• Interfaces: Ethernet 10/100/1000BASE-T, NFC
• Wireless: Optional dual-band 802.11a/b/g/n/ac/ax WLAN and Bluetooth 5.2
• Operating Environment: 0°C to 40°C, 20% to 85% RH without condensation for cutter/off-tear/continuous configurations
• Storage Environment: -20°C to 60°C, up to 90% RH without condensation
• Dimensions: 338 W x 457 D x 321 H mm
• Weight: 19.3 kg
• Optional Accessories: UHF RFID kit, HF RFID kit, external cover, external rewinder, internal liner rewinder, and cutter
