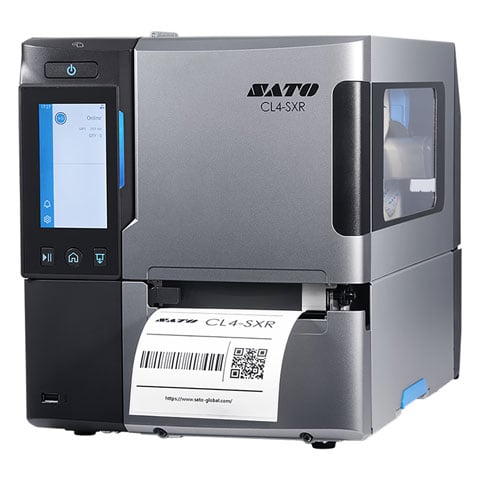

SATO CL4-SXR – Barcode Label Printer
Full specifications (PDF)
SATO CL4-SXR Barcode Label Printer Model Overview
The SATO CL4-SXR Series industrial label printers are designed for high-performance, reliable barcode and label printing in demanding workplace environments. With print speeds of up to 18 ips and print precision of approximately +/-0.3 mm, the series delivers fast, accurate, high-quality output for a wide range of applications. Models support direct thermal and thermal transfer printing, with options for continuous, cutter, dispenser, off-tear, and linerless media. A 4.3-inch color LCD touchscreen, built-in speaker, predictive maintenance capabilities, and enhanced sensors provide intuitive operation and improved uptime. Designed for easy cleaning and component replacement, the CL4-SXR also incorporates approximately 34% recycled plastic by weight, supporting more sustainable printing operations.
Key Features
- Industry-leading print speeds of up to 18 ips
- High print precision of approximately +/-0.3 mm
- Supports direct thermal and thermal transfer printing
- 4.3-inch color LCD touchscreen for intuitive operation
- Built-in speaker with video playback functionality
- Smart label issue prediction and AI operating status and wear-level monitoring
- Enhanced sensors help maintain print quality and stability across varying conditions
- Supports linerless, continuous, and off-tear printing modes
- Designed for easy cleaning, maintenance, and thermal head replacement
- Approximately 34% recycled plastic by weight
- Optional wireless LAN, Bluetooth, RFID, external rewinder, and other configurations available
Specifications
- Printing
- Printing Method: Direct thermal, thermal transfer
- Print Resolution: 203 dpi, 305 dpi, or 609 dpi depending on model
- Maximum Print Speed: Up to 18 ips
- Maximum Standard Print Width: Up to 167.5 mm
- Maximum Extension Print Width: Up to 167.5 mm
- Media
- Label Width: 47 to 177 mm for standard media configurations
- Label Length: Up to 2,497 mm depending on media mode and model
- Maximum Label Diameter: 220 mm
- Core Diameter: 76 mm or 101 mm
- Wind Direction: Out Face/In Face; no setting change required
- Ribbon
- Maximum Ribbon Length: Up to 600 m
- Ribbon Width: 39.5 to 128 mm or 59 to 177 mm depending on model
- Core Diameter: 25.4 mm
- Wind Direction: Out Face/In Face
- Connectivity
- Standard Interfaces: Ethernet, USB 2.0 Type A & B, RS-232C, NFC, EXT
- Optional Wireless LAN: 802.11a/b/g/n/ac/ax, dual-band 2.4 GHz, 5 GHz, and 6 GHz
- Optional Bluetooth: Bluetooth 5.2
- Power & Environment
- Power Requirements: AC 100 to 240 V, 50/60 Hz +/-10%, auto-ranging
- Operating Temperature: 0 to 40°C for continuous, and off-tear configurations
- Operating Humidity: Up to 85% RH without condensation
- Storage Temperature: -20 to 60°C
- Storage Humidity: Up to 90% RH without condensation
- Physical
- Dimensions: Up to 338 W x 457 D x 321 H mm
- Weight: Up to 19.3 kg
- Options
- UHF RFID kit
- HF RFID kit
- Wireless LAN and Bluetooth
- External rewinder
- External cover
- Internal liner rewinder with dispenser
- Linerless cutter
