SATO WWCL32181 Barcode Label Printer

The SATO WWCL32181 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

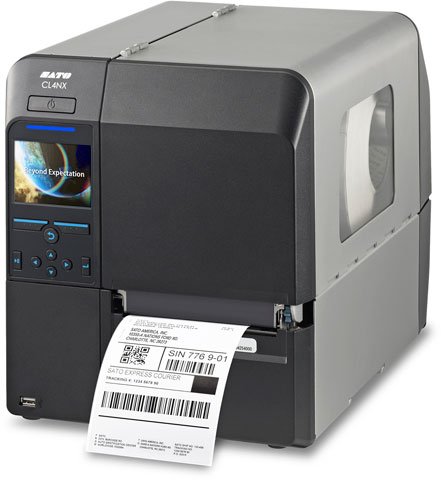

SATO CL4NX - Sato CL424NX Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Real Time Clock - 4.10" Print Width - 6 in/s Mono - 609 dpi - Wireless LAN - Receipt, Die-cut Label, Continuous Receipt, Fanfold, Tag, Ticket, Linered Media - 5.04" Label Width
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Parallel, Serial (RS-232), USB, Wi-Fi
Print Resolution
609 dpi
Printer Options
Cutter, Real-Time Clock
Max Print Width
5.25 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
Read More

Need a different version? See all SATO CL4NX Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
SATO WWCL32181 Barcode Label Printer
SATO WWCL32181 Barcode Label Printer SATO WWCL32181 Barcode Label Printer SATO WWCL32181 Barcode Label Printer SATO WWCL32181 Barcode Label Printer
SATO WWCL32181 Barcode Label Printer
SATO WWCL32181 Barcode Label Printer
SATO WWCL32181 Barcode Label Printer

Full specifications (PDF)
SATO CL4NX Barcode Label Printer Model Overview
Sato's first truly Universal Industrial Label Printer engineered for the most demanding printing applications.
SATO WWCL32181 Barcode Label Printer Overview

SATO's first truly UNIVERSAL Industrial Label Printer engineered for the most demanding printing applications.

Simple-To-Operate

  • Full Color Interactive LCD with Videos that Offer Valuable Information on the Printer Operation
  • Intuitive Menu Navigation
  • Tool-less Maintenance

Plug-And-Play

  • LTDS (Label Tension Damper System)
  • Flexible Media Support - Use Wound In or Wound Out Media
  • High Energy Mode - Prints on a Wide Variety of Stock Types

All-In-One

  • Multiple Interfaces - Auto Switching
  • Competitive Emulations On-board
  • Multi-Language Support
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution:
609 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • NW-7
  • EAN-8
  • EAN-13
  • GS1 DataBar
  • GS1-128
  • UCC/EAN 128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • JAN-8
  • JAN-13
  • Matrix 2 of 5
  • MSI
  • Bookland
  • POSTNET
  • UPC-A
  • UPC-E
  • PDF-417
  • Micro PDF
  • Maxi Code
  • QR Code
  • Micro QR
  • Composite Symbology
Real Time Clock:
Yes
Application/Usage:
Industrial
Features:
  • Dual CPU
  • Clear Bi-fold Media Side Door
  • Multilingual Capable
  • RFID Ready
Memory
Standard Memory:
320 MB
Flash Memory:
6 GB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Screen Size:
3.5"
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Receipt
  • Die-cut Label
  • Continuous Receipt
  • Fanfold
  • Tag
  • Ticket
  • Linered Media
Media Sensor:
  • Transmissive Media Sensor
  • Adjustable Media Sensor
  • Reflective Media Sensor
  • Out Of Paper Sensor
  • Out Of Ribbon Sensor
Media Thickness:
11 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.04"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • SBPL
  • SZPL
  • SDPL
  • SIPL
  • STCL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.6"
Width:
10.7"
Depth:
18"
Weight (Approximate):
33.29 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • EN60950-1
  • UL60950-1
  • CSA C22.2 No.60950-1
  • UniCode
  • C-Tick
  • CCC
  • KC
  • S-Mark
  • cMETus
  • CE marking
  • FCC
  • NEMKO GS
  • ICES-003
  • NMB-003
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO WWCL32181 Barcode Label Printer is also known as SAT-WWCL32181 or WWCL32181.
