SATO WWCL00061 Barcode Label Printer

SATO WWCLP1001 Barcode Label Printer A newer version of this item is available.
It is replaced by the SATO WWCLP1001 Barcode Label Printer.

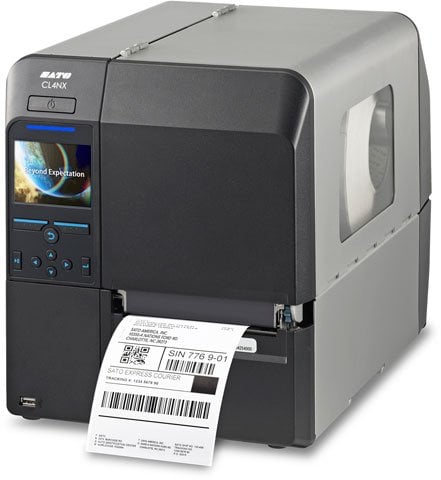

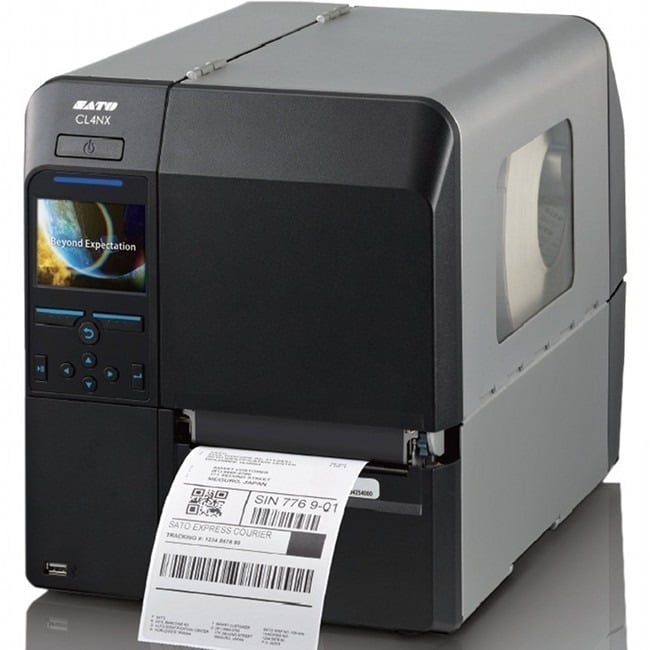

SATO CL4NX - Sato CL408NX Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 4.10" Print Width - 10 in/s Mono - 203 dpi - Receipt, Die-cut Label, Continuous Receipt, Fanfold, Tag, Ticket, Linered Media - 5.04" Label Width
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
5.25 inch
Ribbon Core Size
1 inch
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
Read More

Need a different version? See all SATO CL4NX Barcode Label Printers

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
SATO WWCL00061 Barcode Label Printer
SATO WWCL00061 Barcode Label Printer
SATO WWCL00061 Barcode Label Printer
SATO WWCL00061 Barcode Label Printer
SATO WWCL00061 Barcode Label Printer SATO WWCL00061 Barcode Label Printer SATO WWCL00061 Barcode Label Printer

Full specifications (PDF)
SATO CL4NX Barcode Label Printer Model Overview
Sato's first truly Universal Industrial Label Printer engineered for the most demanding printing applications.
SATO WWCL00061 Barcode Label Printer Overview

SATO's first truly UNIVERSAL Industrial Label Printer engineered for the most demanding printing applications.

Simple-To-Operate

  • Full Color Interactive LCD with Videos that Offer Valuable Information on the Printer Operation
  • Intuitive Menu Navigation
  • Tool-less Maintenance

Plug-And-Play

  • LTDS (Label Tension Damper System)
  • Flexible Media Support - Use Wound In or Wound Out Media
  • High Energy Mode - Prints on a Wide Variety of Stock Types

All-In-One

  • Multiple Interfaces - Auto Switching
  • Competitive Emulations On-board
  • Multi-Language Support
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • NW-7
  • EAN-8
  • EAN-13
  • GS1 DataBar
  • GS1-128
  • UCC/EAN 128
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • JAN-8
  • JAN-13
  • Matrix 2 of 5
  • MSI
  • Bookland
  • POSTNET
  • UPC-A
  • UPC-E
  • PDF-417
  • Micro PDF
  • Maxi Code
  • QR Code
  • Micro QR
  • Composite Symbology
Application/Usage:
Industrial
Features:
  • Dual CPU
  • Clear Bi-fold Media Side Door
  • Multilingual Capable
  • RFID Ready
Memory
Standard Memory:
320 MB
Flash Memory:
6 GB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
3.5"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Receipt
  • Die-cut Label
  • Continuous Receipt
  • Fanfold
  • Tag
  • Ticket
  • Linered Media
Media Sensor:
  • Transmissive Media Sensor
  • Adjustable Media Sensor
  • Reflective Media Sensor
  • Out Of Paper Sensor
  • Out Of Ribbon Sensor
Media Thickness:
11 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
5.04"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • SBPL
  • SZPL
  • SDPL
  • SIPL
  • STCL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.6"
Width:
10.7"
Depth:
18"
Weight (Approximate):
33.29 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • EN60950-1
  • UL60950-1
  • CSA C22.2 No.60950-1
  • UniCode
  • C-Tick
  • CCC
  • KC
  • S-Mark
  • cMETus
  • CE marking
  • FCC
  • NEMKO GS
  • ICES-003
  • NMB-003
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0017114496216
UPC: 017114496216
EAN: 0017114496216
UNSPSC: 43212108
