SATO WWCG18041 Barcode Printer

Thermal transfer and Direct thermal

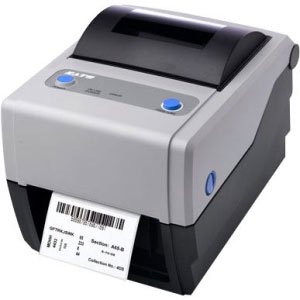

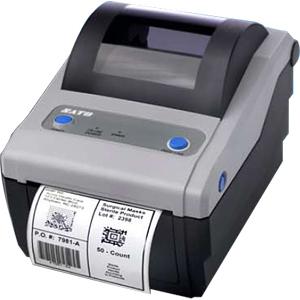

The SATO CG408 is a full-function desktop printer with a 4" print width and a 203 dpi resolution and is available in direct thermal and thermal transfer versions. The SATO CG408 is delivered stock out of the box with competitive emulations onboard, optimal interfaces (built in USB standard) and an antimicrobial casing for outstanding performance in clinical and processing environments.

Technical Information

Maximum Mono Print Speed: 3.94 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Number of Columns: 104
Maximum Print Width: 4.09"
Recommended Use: Label Print
Barcode Symbology Supported:
- UPC-E
- JAN
- EAN
- Code 39
- Code 93
- Code 128
- UCC/EAN 128
- Codabar
- ITF
- Industrial 2 of 5
- Matrix
- Bookland
- POSTNET
- GS1 DataBar
- UPC-A

General Information

Product Type: Thermal Transfer Printer
Product Series: CG4
Brand Name: Sato
Manufacturer: Sato Corporation
Product Model: CG408
Product Name: CG408 Barcode Printer

Physical Characteristics

Height: 6.8"
Width: 7"
Depth: 9.4"
Form Factor: Desktop

Interfaces/Ports

USB: Yes

Media Types & Handling

Maximum Label Width: 4.21"
Maximum Label Length: 11.81"
Media Type:
- Roll Paper
- Fanfold
Media Thickness: 7.48 mil
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Label Core Size: 1.57"
Ribbon Core Size: 0.50"
Maximum Roll Diameter: 5.12"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- ENERGY STAR
Platform Supported: PC

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Network & Communication

Ethernet: Yes
Ethernet Technology: Ethernet

Memory

Standard Memory: 8 MB
Flash Memory: 4 MB

Full specifications (PDF)

See all SATO CG408 options »

Brand	SATO
Model	CG408
Print Speed	4
Print Method	Thermal Transfer
Print Resolution	203 dpi
Label Core	1.5 inches
Maximum Print Width	4.10
Max Label Width	4.21
Interface Options	USB, Ethernet
Included Features	ZPL
Printer Type	Desktop
Labels Per Day	1,001 - 5,000
Max Roll Outer Diameter	5.12
Printer Mobility	Not Mobile
Ribbon Core	0.5
