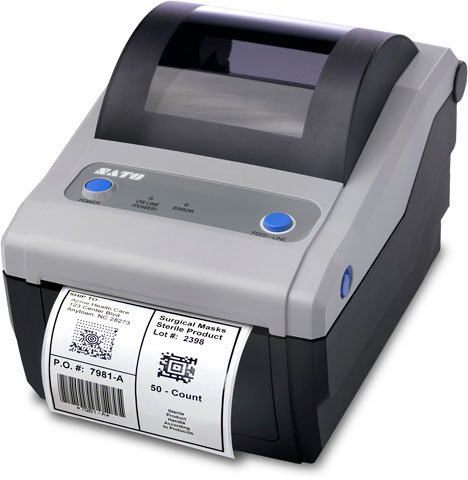

SATO CG412 – Barcode Label Printer – 305 dpi – Direct Thermal

Part Number: WWCG12061
Model: CG412
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Parallel, USB
Print Resolution
305 dpi

Product Description:

  Sato Compact CG412 Direct Thermal Printer - Monochrome - Desktop - Label Print - USB - 4.10" Print Width - 4 in/s Mono - 305 dpi - Fanfold, Roll Paper - 4.21" Label Width - 11.80" Label Length

SATO CG412 Barcode Label Printer Model Overview

The SATO CG412 is a full-function desktop printer with a 4" print width and a 305 dpi resolution and is available in direct thermal and thermal transfer versions. The SATO CG412 is delivered stock out of the box with competitive emulations onboard, optimal interfaces (built in USB standard) and an anti-microbial casing for outstanding performance in clinical and processing environments.
SATO WWCG12061 Barcode Label Printer Overview

With superior performance and affordable price, these 4" , 203 or 305 dpi, Direct Thermal/Thermal printers are best in their class. The SATO CG Series models are delivered stock out of the box with competitive emulations onboard, optimal interfaces (built in USB standard) and an anti-microbial casing for outstanding performance in clinical and processing environments.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
305
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • JAN
  • EAN
  • Code 39
  • Code 93
  • Code 128
  • GS1-128
  • UCC/EAN 128
  • Codabar
  • ITF
  • Industrial 2 of 5
  • MSI
  • Bookland
  • POSTNET
  • GS1 DataBar
  • QR Code
  • Micro QR
  • PDF-417
  • Micro PDF
  • Maxi Code
  • GS1 DataMatrix
Application/Usage:
Desktop
Print Technology:
Direct Thermal
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.48 mil
Maximum Roll Diameter:
5.12"
Maximum Label Width:
4.21"
Maximum Label Length:
11.80"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7"
Depth:
9.4"
Weight (Approximate):
3.75 lb
Miscellaneous
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
