SATO M-10e – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: WM1002041
Model: M-10e

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
305 dpi

Product Description:

  Thermal transfer & direct thermal, 305 dpi, 5 ips, 10" print width, ethernet interface, 16MB RAM, 6MB Flash. Includes US power cord.

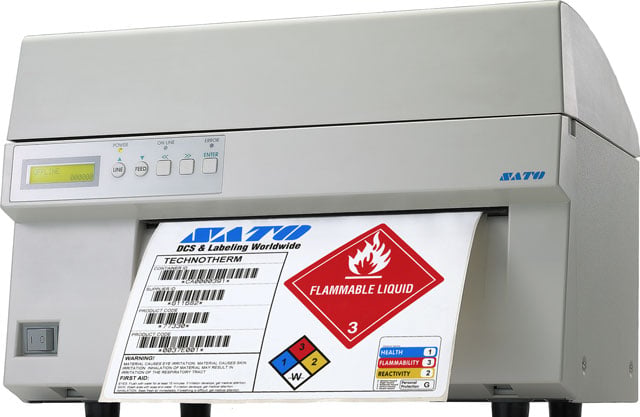

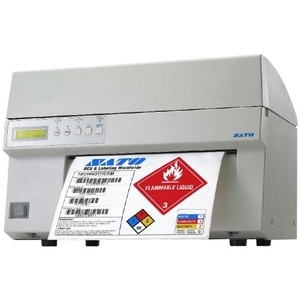

SATO M-10e Barcode Label Printer Model Overview

The new M-10e is designed with manufacturing applications in mind. This heavy-duty barcode printer creates labels up to a full 11.8 inches wide at a speed of up to 5 inches per second. The 10.5-inch printhead makes it possible to print large format compliance labels at top speed without rotating the image. The M-10e printer can hold media sizes up to approximately 11.8" wide x 16.6" long. A 32-Bit high-speed RISC processor allows for maximum throughput directly from standard Windows applications.
SATO WM1002041 Barcode Label Printer Overview

SATO's new M-10e Label Printer was started with manufacturing applications in mind. M-10e Label Printer's printhead makes it possible to print large format compliance labels at top speed without rotating the image, M-10e Label Printer has fast processing speed.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
305
Maximum Print Width:
10.50"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • UCC/EAN 128
  • RSS
  • PDF-417
  • Micro PDF-417
  • Truncated PDF417
  • Maxi Code
  • Data Matrix
  • QR Code
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
6 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Synthetic Media
  • Notched
  • Black Bar
  • Tag Stock
Maximum Roll Diameter:
7.80"
Maximum Label Width:
11.80"
Maximum Label Length:
17"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.6"
Width:
18.7"
Depth:
12.3"
Miscellaneous
Additional Information:
  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Label present sensor
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555051351
UPC: 783555051351
EAN: 0783555051351
UNSPSC: 43212108
