SATO WS4-2 – Barcode Label Printer
Full specifications (PDF)

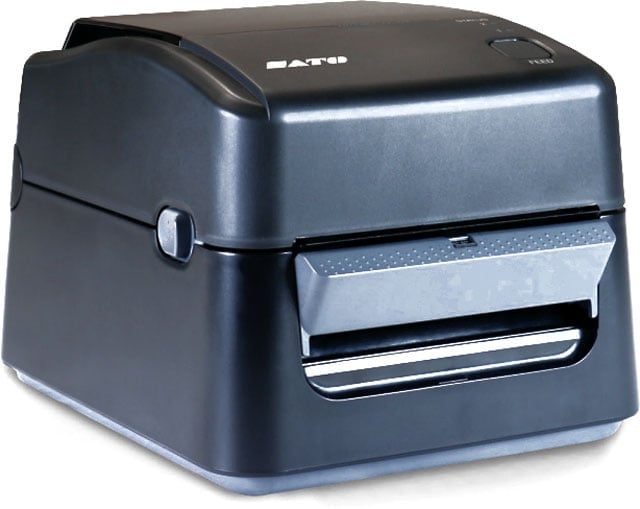

SATO WS4 Barcode Label Printer Model Overview
The XTO WS408/WS412 Thermal Printer is an advanced compact label printer designed for seamless operation in various applications including logistics, retail, and healthcare. With a printing resolution of 203/305 dpi and a remarkable print speed of up to 6 ips, this printer offers exceptional performance for labels, receipts, tags, and wristbands. The wireless operation via Bluetooth™ or Wi-Fi™ enhances connectivity, making it an ideal choice for dynamic environments. Additionally, its compatibility with multiple media types ensures versatility and user-friendliness.
- User-Friendly Operation and Serviceability
- Prints Labels, Receipts, Tags, and Wristbands
- High Printing Resolution of 203 / 305 dpi
- Long 300m Ribbon - Face-in/out
- Available in Thermal Transfer and Direct Thermal Models
- Wireless Operation via Bluetooth™ or Wi-Fi™
- Standard Ethernet connectivity
- Printing Method: Direct Thermal (DT) and Thermal Transfer (TT)
- Print Resolution: 203 dpi (8 dots/mm) / 305 dpi (12 dots/mm)
- Print Speed: Up to 6 ips (152.4mm/s)
- Printer Memory: Flash ROM: 16MB, RAM: 32MB
- Dimensions:
- TT Model: W: 8.68" D: 10.96" H: 7.41"
- DT Model: W: 7.23" D: 8.76" H: 6.53"
- Weight: DT Model: 3.88 lbs. / TT Model: 5.29 lbs.
- Communication Interfaces: USB, LAN, RS232C, Wireless (Optional)
- Operating Temperature: 41 to 104°F (5 to 40°C)
- Certifications: FCC, UL, CSA, CCC, CE, ROHS compliant, Energy Star
Recommended Accessories
Category
- Printer Accessories (11)
- Spare Parts (1)
Recommended Accessories for Model: SATO WD212-400DB-EX1-2 Barcode Label Printer
Top Printer Accessories Purchased With SATO WD212-400DB-EX1-2
-
$222.75 -
$78.75 -
SATO 59-WT202-001 AccessoryDispenser for WS4 Thermal TransferItem on backorder — chat for lead time$97.08
Top Spare Parts Purchased With SATO WD212-400DB-EX1-2
-
SATO 59-WT207-001 Spare PartsSpare Parts, SATO, Lever Ribbon Block, for WS4 Thermal TransferItem on backorder — chat for lead time$21.49
Frequently Asked Questions
What printing resolutions and speeds does the SATO WD212-400DB-EX1-2 offer?
The SATO WD212-400DB-EX1-2 delivers printing resolutions of either 203 dpi or 300 dpi, with maximum print speeds of up to 6 inches per second (ips). This combination ensures exceptional print quality while maintaining high production throughput for warehouse and logistics operations. We offer both resolution options to match your specific labeling requirements.
Is the SATO WS4 printer compatible with healthcare applications like patient wristbands?
Yes, the SATO WS4 series, including the WD212-400DB-EX1-2, is fully Cerner-validated for use within Cerner health IT systems, making it ideal for printing patient wristbands, specimen pathology labels, and hospital supply chain applications. This validation ensures patient safety, quality, and efficacy in clinical environments. Available from us, the WS4 is widely deployed across hospitals, pharmacies, medical check-up centers, and clinics.
What connectivity options are available on this SATO thermal printer?
The WD212-400DB-EX1-2 comes standard with Ethernet, USB, and RS232 interfaces, with optional Bluetooth and 802.11 WLAN (Wi-Fi) wireless communication capabilities. It also supports both IPv4 and IPv6 protocols for flexible network integration. Contact us today to discuss which connectivity options best fit your warehouse or logistics infrastructure.
How often will I need to change ribbons on the SATO WS4 printer?
The WD212-400DB-EX1-2 features an impressive 300-meter (984.2 feet) ribbon capacity, significantly minimizing ribbon changes compared to standard desktop printers. The printer supports both wound-in and wound-out ribbon configurations with versatile 0.5" or 1.0" inside diameter core sizes. When paired with our optional External Media Stand, you can use industry-standard 8-inch outside diameter media rolls for even greater capacity.
What types of labels and materials can this SATO printer handle?
The SATO WD212-400DB-EX1-2 is available in both Direct Thermal (DT) and Thermal Transfer (TT) models, allowing you to print on a wide variety of label materials including labels, receipts, tags, and wristbands. The thermal transfer option provides greater versatility for synthetic and specialty label stocks. We offer both variants to support your specific application requirements.
What makes the SATO WS4 easy to maintain and service?
The WD212-400DB-EX1-2 features straightforward replacement of the print head and platen roller, allowing quick return to full operation during routine maintenance. It also includes a 3-color status LED for easy monitoring and supports easy firmware downloads via USB. The small footprint design and user-friendly operation minimize downtime in busy warehouse and logistics environments. Contact us today for maintenance support and replacement parts.
