SATO WCX400201 Barcode Label Printer

The SATO WCX400201 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

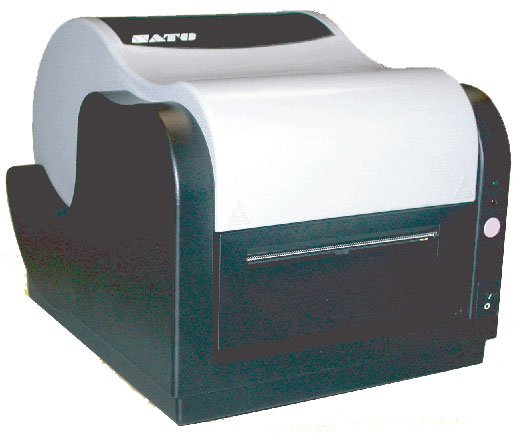

SATO CX400 - Sato CX400 Thermal Label Printer - Monochrome - 4 in/s Mono - 203 dpi - Serial, Parallel

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232)

Print Resolution

203 dpi

Printer Options

Dispenser

Max Print Width

4.75 inch

Ribbon Core Size

0.5 inch

Delivers high-speed, hassle-free labeling solution for your business needs
The printer is capable of printing sharp and detailed monochrome documents quickly
Save time and money for your business by using one printer for all your employees

Need a different version? See all SATO CX400 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

SATO CX400 Barcode Label Printer Model Overview

The 205 dpi CX400 Series printers provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable print head and platen, and a high lift print head carriage that makes it easy to clean and load supplies.

SATO WCX400201 Barcode Label Printer Overview

The CX400 printer provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable printhead, and a high-lift printhead carriage that makes it easy to clean and load supplies.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

UPC-A
UPC-E
EAN-8
EAN-13
Code 39
Code 93
Code 128
Codabar
MSI
Bookland
Industrial 2 of 5
Interleaved 2 of 5
Matrix 25
POSTNET
UCC/EAN 128
PDF-417
Maxi Code

Features:

Dispenser

Memory

Standard Memory:

2 MB

Memory Technology:

DRAM

Flash Memory:

2 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Die-cut Label
Continuous Form
Direct Thermal Label
Thermal Transfer Label
Synthetic Media
Tag Stock
Black Mark
Notched

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.69"

Ribbon Core Size:

0.50"

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

6.5"

Width:

7.8"

Depth:

10.2"

Miscellaneous

Package Contents:

CX400 Label Printer
Labeling Software
Parallel Printer Cable
Starter Roll of Media & Ribbon
110 VAC Power Supply
User's & Programmers Guide

Power Adapter Included:

Yes

Additional Information:

Graphic Support: Printing & storage of .PCX, .BMP format, SATO Hex/binary

Sensing:

Ribbon-out sensor
Reflective sensor for black mark
Adjustable transmissive sensor for gap
Automatic programmable setting of top of form
Label present sensor - optional with label dispenser

Platform Supported:

Certifications & Standards:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The SATO WCX400201 Barcode Label Printer is also known as SAT-YCX400201 or WCX400201.
