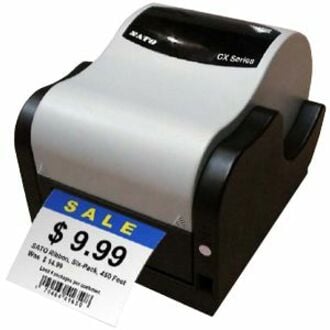

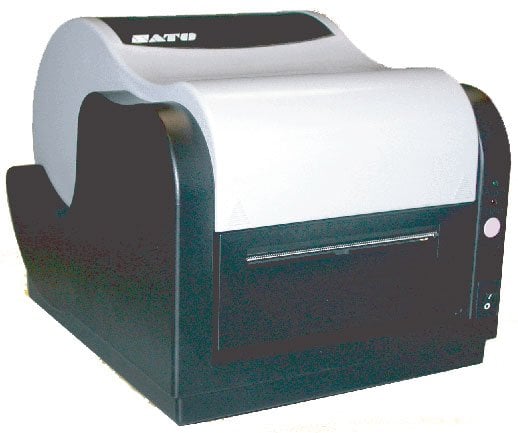

SATO CX400 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: WCX400001
Model: CX400
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Sato CX400 Thermal Label Printer - 203 dpi - Serial, Parallel
Explore all SATO CX400 Barcode Label Printers
Add to Quote
SATO WCX400001 Barcode Label Printer
SATO WCX400001 Barcode Label Printer
SATO WCX400001 Barcode Label Printer
SATO WCX400001 Barcode Label Printer SATO WCX400001 Barcode Label Printer SATO WCX400001 Barcode Label Printer
Full specifications (PDF)

SATO CX400 Barcode Label Printer Model Overview

The 205 dpi CX400 Series printers provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable print head and platen, and a high lift print head carriage that makes it easy to clean and load supplies.
SATO WCX400001 Barcode Label Printer Overview

The CX400 printer provide users with an ideal low-cost, low volume labeling solution. Designed for convenience, the CX400 has many advanced features including larger media capacity, user replaceable printhead, and a high-lift printhead carriage that makes it easy to clean and load supplies.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • UCC/EAN 128
  • PDF-417
  • Maxi Code
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Size:
Custom Size - 4.70" x 45"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.69"
Ribbon Core Size:
0.50"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.5"
Width:
7.8"
Depth:
10.2"
Miscellaneous
Package Contents:
  • CX400 Label Printer
  • Labeling Software
  • Parallel Printer Cable
  • Starter Roll of Media & Ribbon
  • 110 VAC Power Supply
  • User's & Programmers Guide
Power Adapter Included:
Yes
Additional Information:
  • Graphic Support: Printing & storage of .PCX, .BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Label present sensor - optional with label dispenser
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TUV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
