SATO W05904241 Barcode Label Printer

SATO WWCLP1201-NAR Barcode Label Printer A newer version of this item is available.
It is replaced by the SATO WWCLP1201-NAR Barcode Label Printer.
SATO M-5900RVe - Direct thermal, 203 dpi, 6" ips, 4.4" print width, ethernet interface, 18MB RAM. Includes dispenser & US power cord.
Print Resolution
203 dpi
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Read More

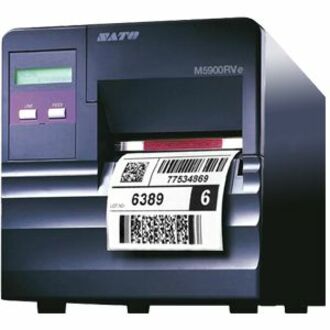

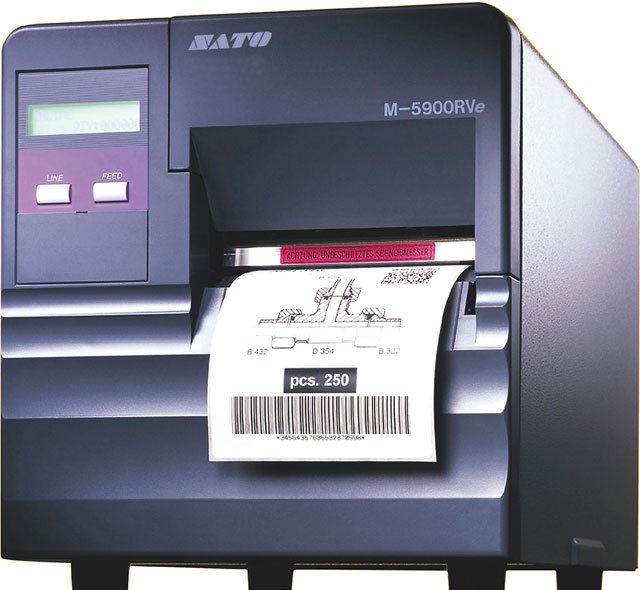

SATO M-5900RVe Barcode Label Printer Model Overview
The SATO M-5900RVe is a rugged industrial printer with "e" Series high performance. It is designed specifically for demanding direct thermal applications. The M-5900RVe printer comes with a warranty of 1 year or 2 million inches, whichever comes first. The M-5900RVe print head comes with a 2 million linear inch warranty.
SATO W05904241 Barcode Label Printer Overview

The M5900RVe is a rugged industrial printer with the "e" Series high performance. It is designed specifically for demanding direct thermal applications. The M5900RVe uses a powerful 32-bit RISC processor and high-speed interface to deliver excellent performance at an outstanding value.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.40"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • UCC/EAN 128
  • RSS
  • PDF-417
  • Micro PDF-417
  • Truncated PDF417
  • Maxi Code
  • Data Matrix
  • QR Code
Features:
Dispenser
Memory
Standard Memory:
18 MB
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Paper
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
6"
Maximum Label Width:
5.15"
Maximum Label Length:
49.20"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.2"
Width:
10.3"
Depth:
12.7"
Miscellaneous
Additional Information:
  • Graphic Support: Printing & storage of .PCX, .BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The SATO W05904241 Barcode Label Printer is also known as SAT-W05904241 or W05904241.
