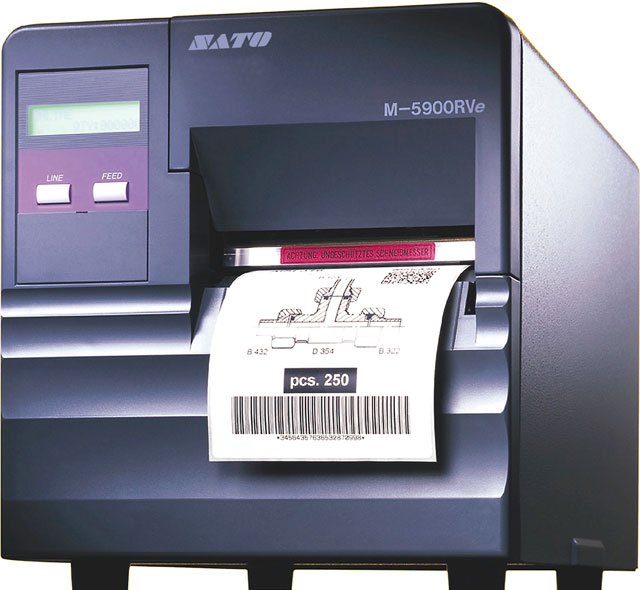

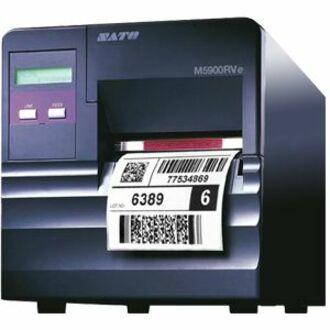

SATO M-5900RVe – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: W05904051
Model: M-5900RVe
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
5.25 inch

Product Description:

  M-5900RVe Direct Thermal Printer (203 dpi, 4.4 Inch Print Width, 4.7 ips Print Speed and Twinax-Coax Interface)
Explore all SATO M-5900RVe Barcode Label Printers
Add to Quote
SATO W05904051 Barcode Label Printer
SATO W05904051 Barcode Label Printer
SATO W05904051 Barcode Label Printer
SATO W05904051 Barcode Label Printer SATO W05904051 Barcode Label Printer SATO W05904051 Barcode Label Printer

SATO M-5900RVe Barcode Label Printer Model Overview

The SATO M-5900RVe is a rugged industrial printer with "e" Series high performance. It is designed specifically for demanding direct thermal applications. The M-5900RVe printer comes with a warranty of 1 year or 2 million inches, whichever comes first. The M-5900RVe print head comes with a 2 million linear inch warranty.
SATO W05904051 Barcode Label Printer Overview

The M5900RVe is a rugged industrial printer with the "e" Series high performance. It is designed specifically for demanding direct thermal applications. The M5900RVe printhead life expectancy in direct thermal applications exceeds 4 million inches. The M5900RVe uses the latest RISC processor technology to significantly improve throughput and imaging response time.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.40"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • MSI
  • Bookland
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 25
  • POSTNET
  • UCC/EAN 128
  • RSS
  • PDF-417
  • Micro PDF-417
  • Truncated PDF417
  • Maxi Code
  • Data Matrix
  • QR Code
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
18 MB
Flash Memory:
2 MB
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Paper
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Size:
Custom Size - 5.15" x 49.20"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
6"
Maximum Label Width:
5.15"
Maximum Label Length:
49.20"
Label Core Size:
3"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
11.2"
Width:
10.3"
Depth:
12.7"
Miscellaneous
Additional Information:
  • Graphic Support: Printing & storage of .PCX, .BMP format, SATO Hex/binary

Sensing:

  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Ribbon-out sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • CCC
  • TUV
  • FCC Class B
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
